    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW3MPA
    Price : CN¥6.53-14.50/pieces
    • Product Details
    • Company Profile

    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable

    Products Description
    Power connector Female Plug Male socket powercon 16A 220v 3 pin input output for LED Lighting Audio Video
    This series is widely used in indoor rental LED display power connection.
    The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
    The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
    Using rotary locking design, easy to operate, stable and reliable !
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable

    Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
    high current capacity, rated at 20A/250V AC
    Quick and simple locking system, the keys are firm and do not fall off
    Connection mode:
    1. Screw clamping and welding
    2. Lock the cable with screws
    Quick, simple locking system
    Connect reliably
    Use different color design to distinguish signal input and output, blue input, white output
    Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
    The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    1.Electrical parameters
    Contacts NO.
    2+PE
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤5mΩ
    Dielectric strength
    4000V DC
    Insulation resistance
    >1000MΩ
    2.Mechanical parameters
    Service life
    >1000 times
    Power line
    2.5mm²(8mm - 12mm)
    Wire stripping length
    7-8mm
    Type of teminals
    Screw type clamping units solder termination
    3.Material and environmental parameters
    Shell
    PA
    Contacts
    Cu alloy
    Contact surface
    Ag
    Flame-retardant grade
    UL94-V0
    Protection grade
    IP44
    Temperature range
    -30°C to +80°C

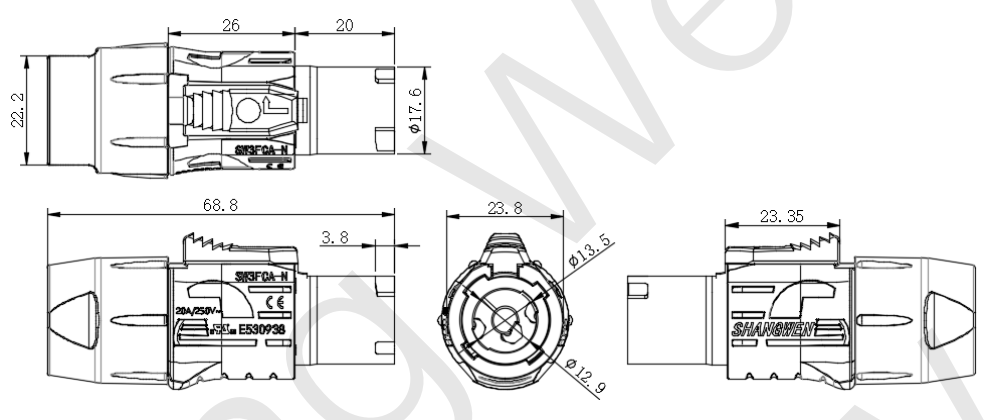

    4.Size reference (unit /mm)
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    5.Installation reference drawing
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Application area
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Company Information
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Patent & Certification
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Exhibition activities
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Packaging reference
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    Payment and logistics
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    FAQ
    Power Connector Female Plug to Male Socket 16A 220V 3 Pin Input Output for LED Lighting Audio Video Durable
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
