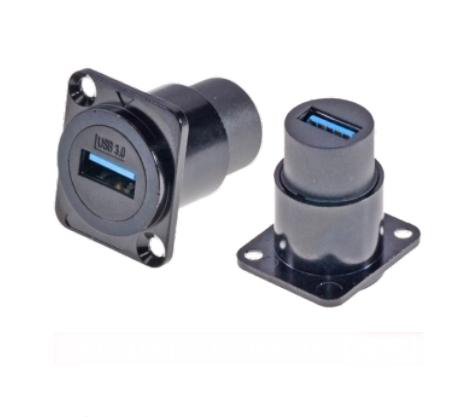

Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design

  • Product Details
  • Company Profile

Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design

Products Description
Indoor/outdoor use data connector
This series of housings uses a full zinc alloy housing, the socket can be integrated installation, for some harsh conditions for special requirements, the product can be equipped with a protective gasket.
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design

In the use of the gasket, the dust can be achieved With a uniform metal flanged D-flat panel style, standard D-mounting sizes can be mounted from the front or back of the panel
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
1.Electrical parameters
No. of poles
4
Current rating
1A
Voltage rating
30Vac (RMS)
Contact resistance
30m Ω max.
Performance
USB3.0
2.Materials - Re-wireable and Panel Connectors
Shell material
Steel
Shell plating
Nickel
Contact material
Copper Alloy
Contact plating
30 micro inch Gold
Connector body & locking ring
Glass Loaded Polyester
Panel connector
Nylon 6
Flammability rating
UL94V-0
‘O’rings
Silicone
Panel Gasket - round
Silicone
Panel Gasket - square
Neoprene
Mating cycles
1,000
RoHS
Compliant

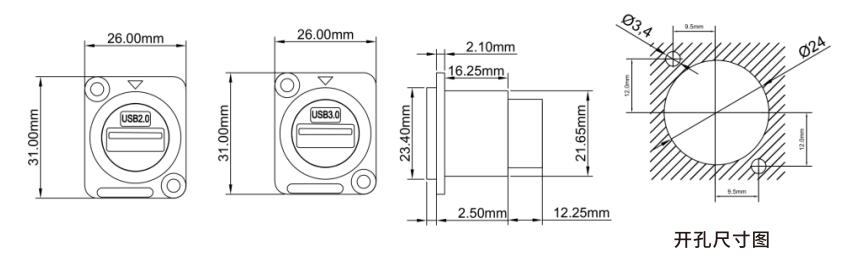

3.Size reference (unit /mm)
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Application area
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Company Information
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Patent & Certification
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Exhibition activities
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Packaging reference
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
Payment and logistics
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
FAQ
Zinc Alloy USB 3.0 Data Connector for Audio Data Transfer Dustproof and Durable Design
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
