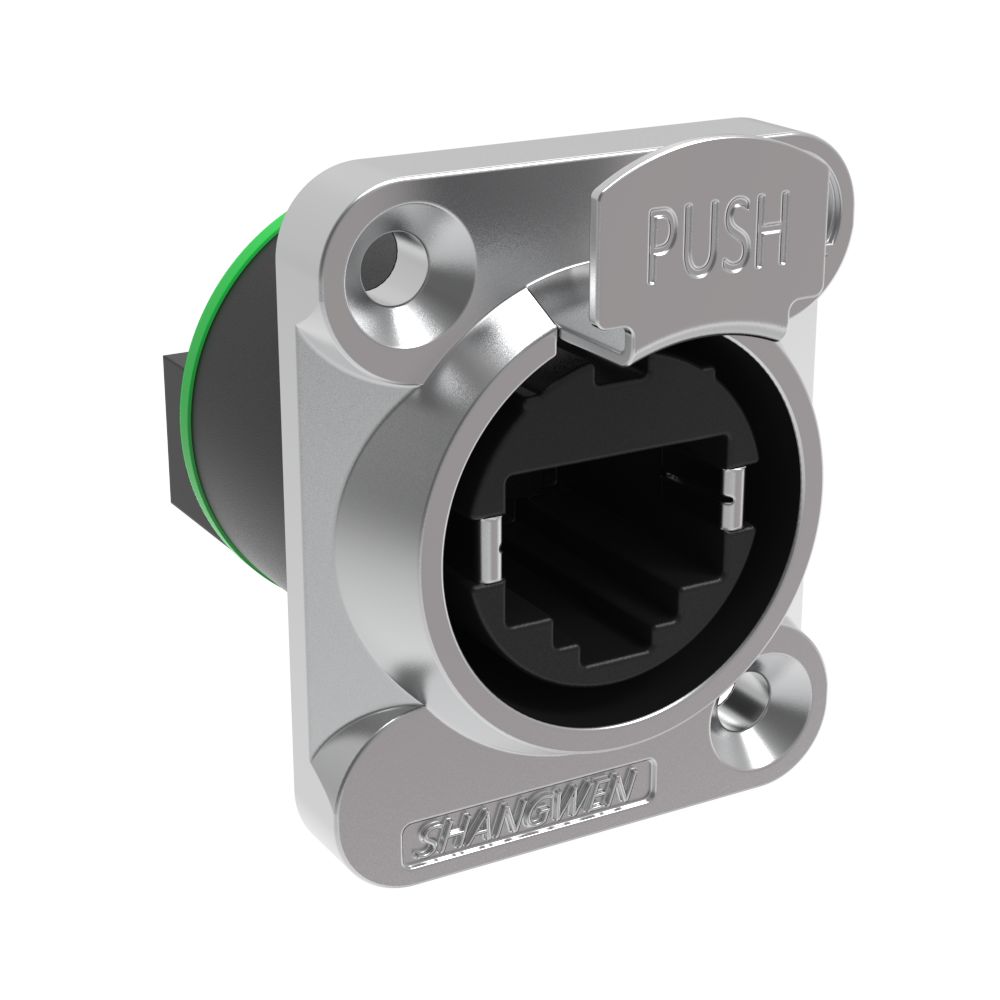

    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW8FDNR
    Price : $2.00 - $2.90/pieces
    • Product Details
    • Company Profile

    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug


    Indoor Industrial Ethernet Connector Straight Plug 8p Horn Male Female Rj45 Connector IP44

    Products Description
    Signal connector series-RJ45 connector

    Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.


    Model:SW8FDNE-30(indoor use)
    *The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button*
    ☑The back-end can be flexibly modified according to actual requirements
    ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
    ☑With shielding function
    ☑Complies with Cat5e according to TIA / EIA 568B and ISO / IEC 11801 standard
    ☑Mountable from the front or rear of the panel
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug



    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    1. Electrical parameters
    Contact resistance
    <10mΩ
    Rated current
    1.5 A
    Rated voltage
    50 V
    Insulation resistance
    ≥0.5GΩ
    Dielectric strength
    1KV DC
    Frequencyrange
    1-100 MHz
    Transmission performance
    Cat 5E
    2. Mechanical parameters
    Service life
    >1000 times
    Insertion force
    ≤ 20 N
    Locking device
    latch lock
    Chassis shape
    D style
    3. Material and environmental parameters
    Shell
    Zinc diecast
    Contacts
    Bronze
    Insert
    PBT
    Contact surface
    Au
    Shell surface
    Pearl Cr
    Temperature range
    -30℃to +80℃
    Level of protection
    IP44
    4.Size reference (unit /mm)
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    5.Internal structure reference
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    6. Installation instructions with SW8MC-A plugs
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Application area
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Company Information
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Patent & Certification
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Exhibition activities
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Packaging reference
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    Payment and logistics
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    FAQ
    Indoor IP44 Rj45 Connector Industrial Solder Male Female 8pin Horn Straight Plug
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
