    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SWF4X-3TSN
    Price : CN¥7.62/pieces 10-99 pieces
    • Product Details
    • Company Profile

    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector

    Products Description

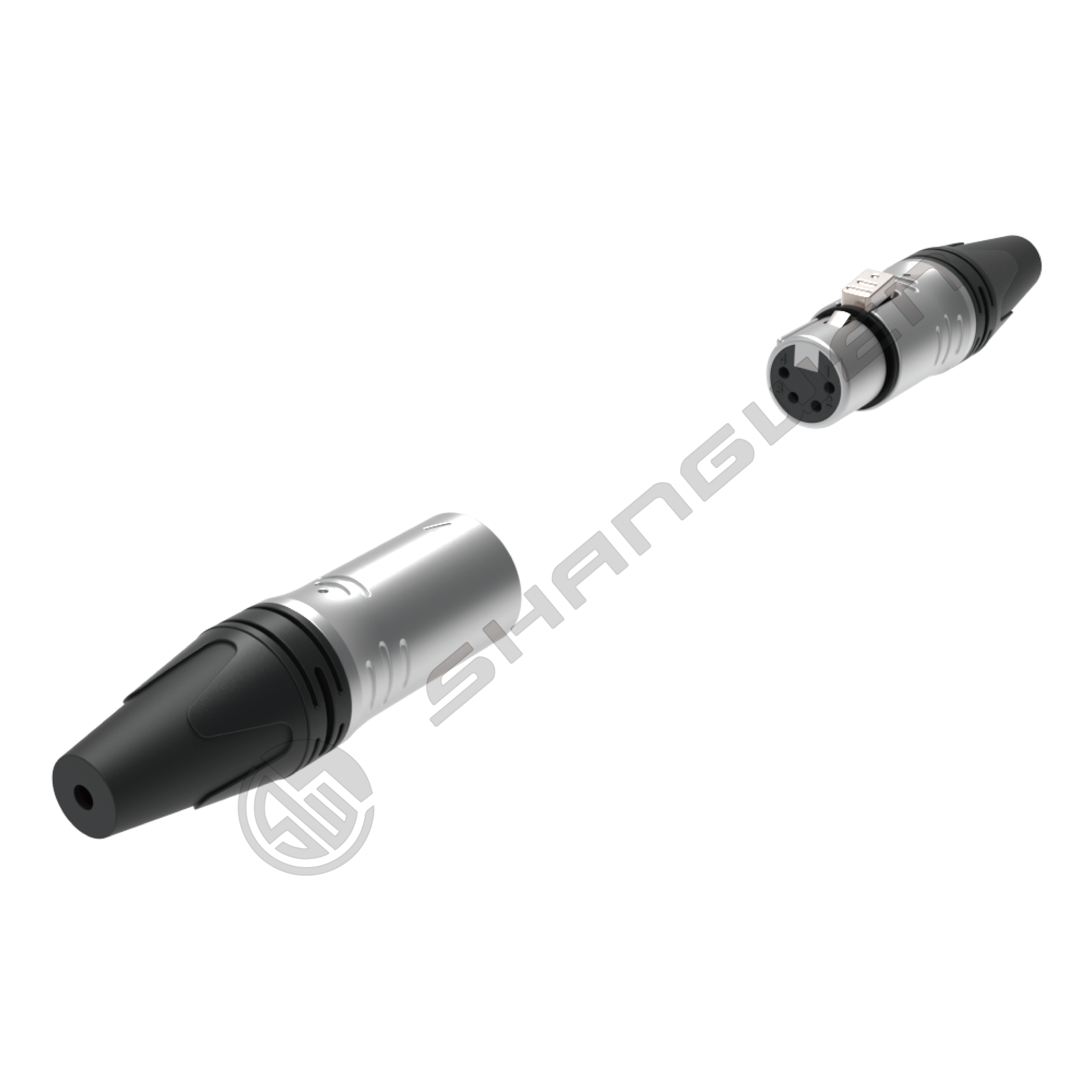

    XLR connector-4 pin female plug
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Model:SWF4X-3TBN-KN-B (Black)
    One hand can operation, push the button to pull it out
    The contact pin is gold-plated,the shell plating black
    Zinc alloy shell to ensure that it can withstand gravity in any field of use
    Protection class IP40
    Wire diameter range: 3.5-8mm
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    1.Product parameters
    Connection Type
    XLR
    Gender
    Female
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    3.5-8mm
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Wire size
    Max. 1.5 mm²
    Wire size
    Max. 16 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    TPU
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃

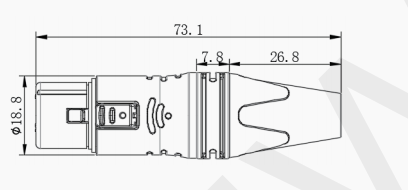

    5.Size reference (unit /mm)
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    6.Assembly reference
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Application area
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Company Information
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Patent & Certification
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Exhibition activities
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Packaging reference
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    Payment and logistics
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    FAQ
    4-Pin XLR Mount Connector Indoor Audio IP40 Protection 4-Pole Wireless DMX Cable Connectors Sliver XLR Female Male Connector
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
