    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SWF8S-2T
    Price : CN¥13.53-21.36/pieces
    • Product Details
    • Company Profile

    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector

    Products Description
    8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Model:SWF8S-2T
    Current rating 30 A rms continuous
    Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
    High impact material for insert and housing, long-lasting and dependable
    Reliable and robust, easy and fast to assemble Accurate and dependable twist lock latching system "Quick Lock" Chuck type strain relief system for secure clamping of cable
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    1.Product parameters
    Connection Type
    speakON
    Gender
    Female
    2.Electrical parameters
    Contact resistance
    ≤ 3 mΩ (after lifetime)
    Dielectric strength
    4 kVdc (peak)
    Insulation resistance
    > 1 GΩ (after dampheat)
    Rated current per contact
    30 A rms continuous
    Rated current per contact
    A audiosignal, duty cycle 50 %
    Rated voltage
    250 V ac
    Attention
    speakON is NOT to be used as an AC mains or power supply connector!
    3.Mechanical parameters
    Cable O.D.
    8-20mm
    Cable retention
    ≥ 220 N (subject to cable O.D. and material)
    Lifetime
    > 5000 mating cycles
    Wire size
    4 mm²
    Wire size
    12 AWG
    Wiring
    screw type terminals or soldering
    Locking device
    Quick Lock (latch)
    4.Material parameters
    Contact plating
    4 µm Ag
    Contacts
    Brass (CuZn39Pb3)
    Insert
    PBTP 20 % GR
    Locking element
    Zinc diecast (ZnAl4Cu1)
    Shell
    Polyamide (PA 6 30 % GR)
    Strain relief
    Polyacetal (POM)
    5.Environmental parameters
    Flammability
    UL 94 HB
    Solderability
    Complies with IEC 68-2-20
    Temperature range
    -30 °C to +80 °C

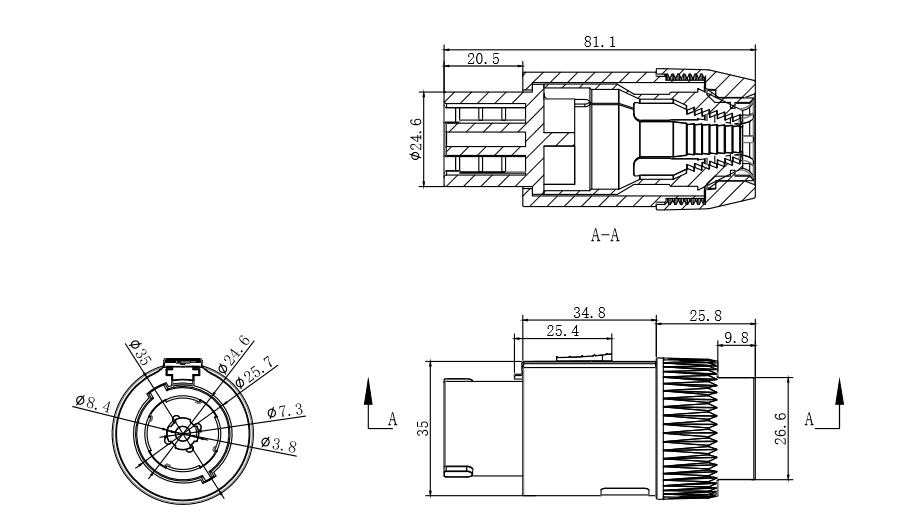

    6.Size reference (unit /mm)
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    7.Assembly reference
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Application area
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Company Information
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Patent & Certification
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Exhibition activities
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Packaging reference
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    Payment and logistics
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    FAQ
    Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
