    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SWF3X-3TBN
    Price : CN¥9.87/pieces 10-99 pieces
    • Product Details
    • Company Profile

    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing

    Products Description

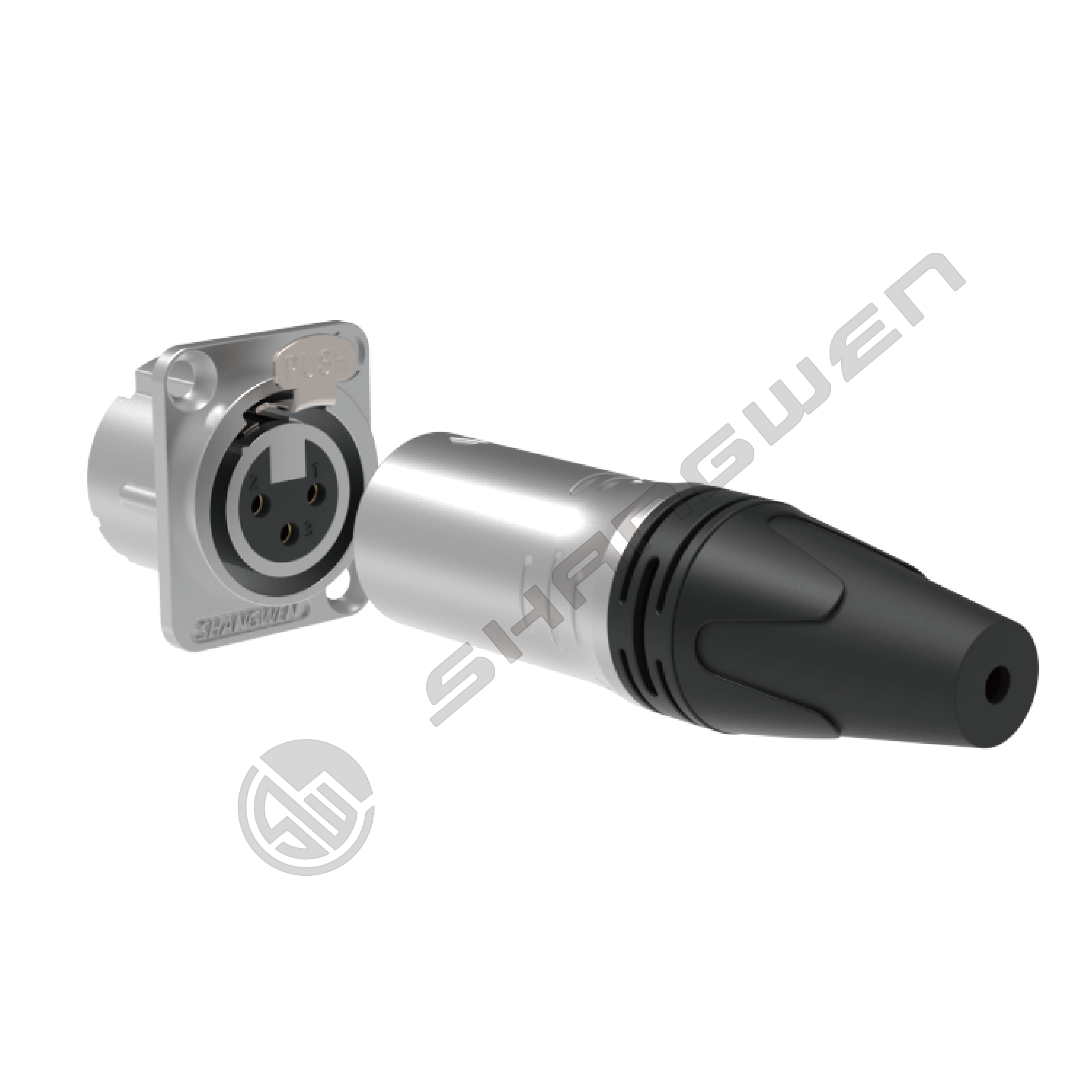

    Waterproof XLR connector-3 pin female plug
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Model:SWF3X-2TBN-KN (Black)
    SWF3X-2TBN-KN (Silver)
    One hand can operation, push the button to pull it out
    The contact pin is gold-plated
    Zinc alloy shell to ensure that it can withstand gravity in any field of use
    Waterproof IP40
    Wire diameter range: 5-8mm
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤4pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    16A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    5-8mm
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Wire size
    Max. 2.5 mm²
    Wire size
    Max. 14 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    Polyurethan
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃
    5.Size reference (unit /mm)
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    6.Assembly reference
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Application area
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Company Information
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Patent & Certification
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Exhibition activities
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Packaging reference
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    Payment and logistics
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    FAQ
    Custom Logo Outdoor Waterproof 3 Pin XLR Male Connector 7.5A Power Audio Video Female Socket with Zinc Alloy Housing
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
