    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SWF5X-1TBN
    Price : CN¥8.18/pieces 2-99 pieces
    • Product Details
    • Company Profile

    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket

    Products Description
    XLR connector-5 pin female plug
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Model:SWF5X-1TBN-KN (Black)
    One hand can operation, push the button to pull it out
    The contact pin is gold-plated,the shell plating black
    Zinc alloy shell to ensure that it can withstand gravity in any field of use
    Protection class IP40
    Wire diameter range: 3.5-8mm
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    1.Product parameters
    Connection Type
    XLR
    Gender
    Female
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    3.5-8mm
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Wire size
    Max. 1.0 mm²
    Wire size
    Max. 18 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    TPU
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃

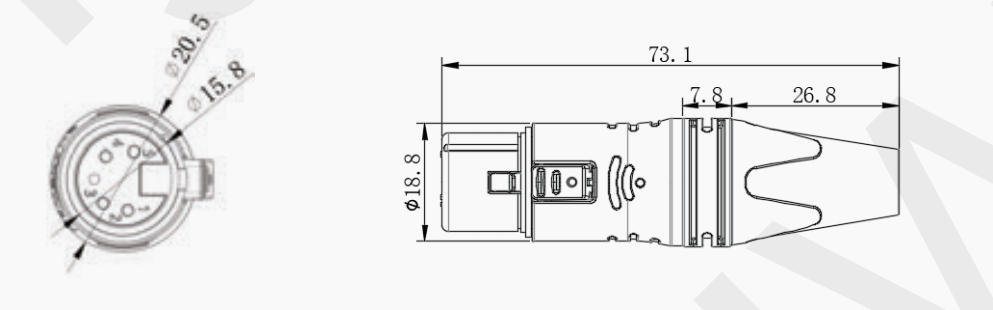

    5.Size reference (unit /mm)
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    6.Assembly reference
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Application area
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Company Information
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Patent & Certification
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Exhibition activities
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Packaging reference
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    Payment and logistics
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    FAQ
    5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
