    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-12JSFT
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated


    Environmental M19 Male Plug 3 Holes 9 Pin Industrial Connector With CE FCC


    Model : SW19-12JSFT (3+9 pin male plug)

    ☑Adopt one key press button locking method,plug and play,fast and convenient;

    ☑Protection level: used in outdoor scenes, protection level up to IP67

    ☑Precision waterproof design,with high waterproof level,no fear of wading environment;

    ☑Adopt high-strength structural materials, pressure-resistant structure design,can

    withstand greater vibration and shock.

    ☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

    ☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

    transmission and electrical conductivity

    ☑Multi-style inner core design to meet the needs of various industries

    ☑Precision waterproof design,with high waterproof level,no fear of wading environment;

    ☑Adopt high-strength structural materials, pressure-resistant structure design,can

    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    1. Electrical parameters
    Contacts NO.
    3+9 pin
    Rated current
    5A
    Rated voltage
    60V AC
    Withstand voltage
    125V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Cable size
    0.3mm²-2.5mm²(22AWG-12AWG)
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell&insulated parts
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ1.0mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃

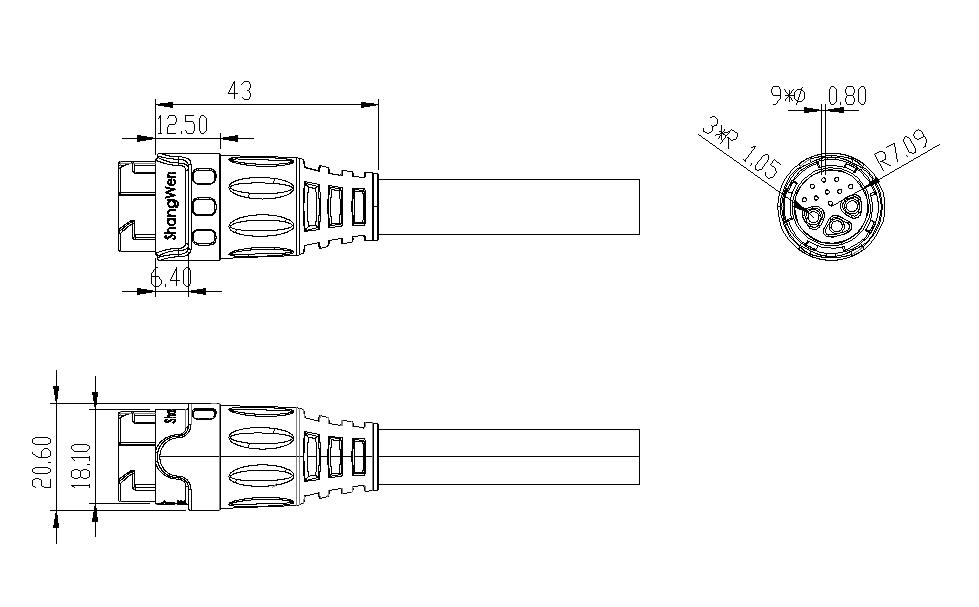

    4. Size reference (unit /mm)
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    5. Operating reference
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Application area
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Company Information
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Patent & Certification
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Exhibition activities
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Packaging reference
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    Payment and logistics
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    FAQ
    M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
