    IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-4KST
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable


    Factory Sales M19 Series Quick Self Locking System Industrial 4 Pin Female Plug Connector

    Products Description

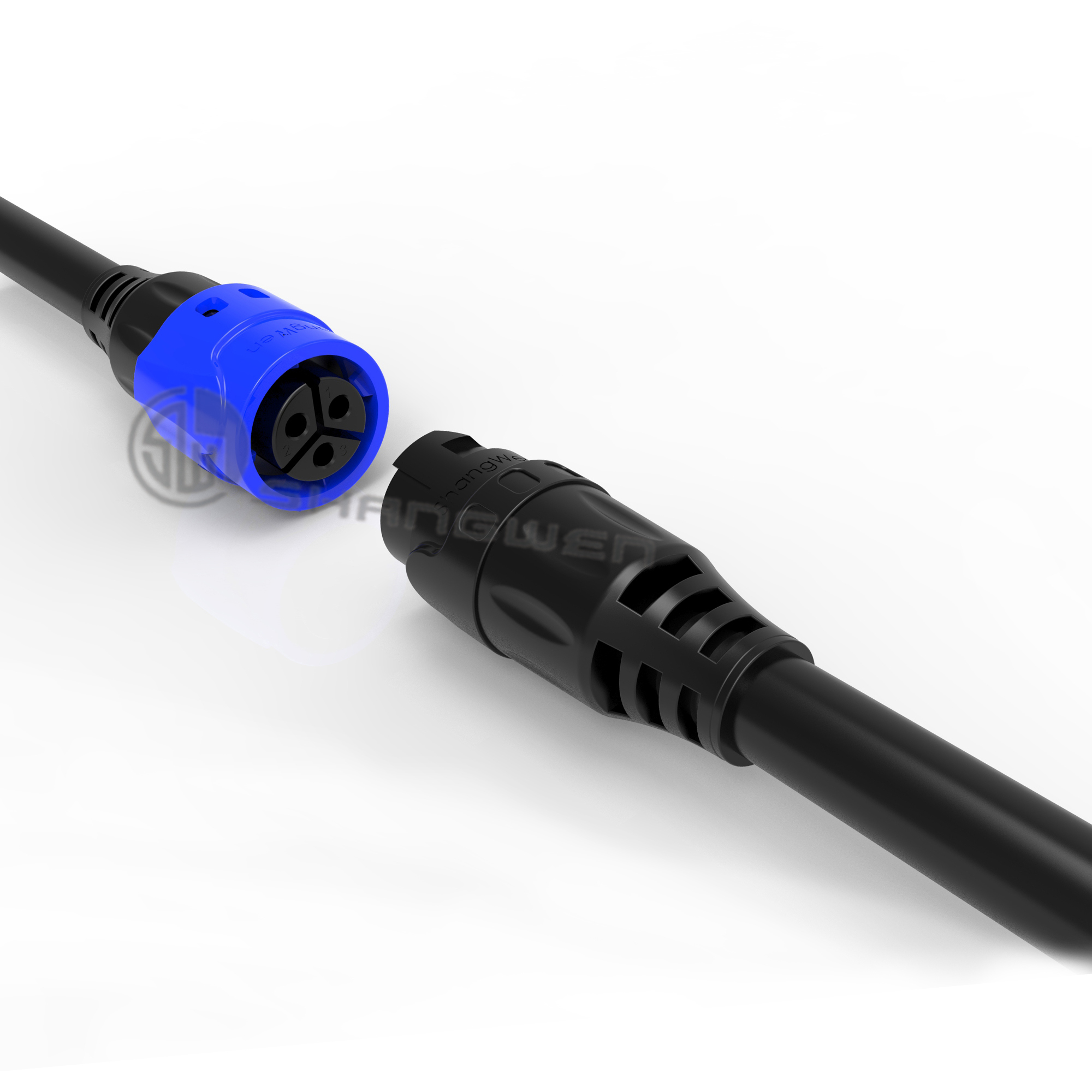

    SW19 Self-locking series-4 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.
    There are two locking methods:
    1. Push-pull self-locking connection
    2. Plastic screw connection, both locking design is very reliable.
    The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
    The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

    Product features


    1) Advanced structure: Self-locking

    2) Mutiple pin:2,3,4,5,6,7,8,9 to 36 pins could be choosed

    3) Contact pin: Screw cable,soldering cup and crimp available

    4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

    5) Black,blue,white and yellow color supported

    6) Different cable length could be customized

    1. Electrical parameters
    Contacts NO.2+PE
    Rated current20A
    Rated voltage250V AC
    Contact resistance≤5mΩ
    Dielectric strength4000V DC
    Insulation resistance>1000MΩ
    2. Mechanical parameters
    Service life>1000 times
    Power line2.5mm²(8mm - 12mm)
    Wire stripping length7-8mm
    Type of teminalsScrew type clamping units solder termination

    3. Material and environmental parameters


    ShellPA
    ContactsCu alloy
    Contact surfaceAg
    Flame-retardant gradeUL94-V0
    Protection gradeIP44
    Temperature range-30°C to +80°C
    IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
    IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
