    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-2JSZ
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial


    Quick Simple Self Locking System Ip67 Industrial Waterproof 2 Pin Male Socket Connector

    Features

    1. Use high-performance engineering plastics to effectively reduce electromagnetic and signal RF interference generated by external high current.

    2. Optional shell color to meet different environmental requirements.

    3. Rated current: 5A/20A/30A/50A rms.

    4. The IP67 protection level is met when the product is connected.


    Model : SW19-2JSZ (2 pin male socket)


    ☑Quick, simple self locking system
    ☑Connect reliably
    ☑Small size of product
    ☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
    ☑Waterproof rating IP67


    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    1. Electrical parameters
    Contacts NO.
    2 pin
    Rated current
    20A
    Rated voltage
    300V AC
    Withstand voltage
    1500V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ2.4mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃

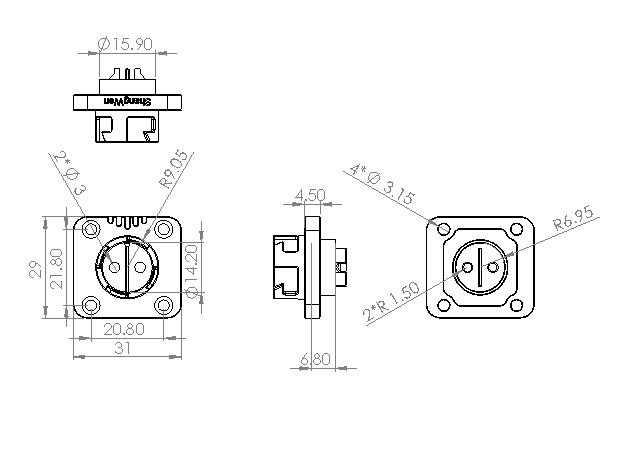

    4. Size reference (unit /mm)
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Waterproof gasket
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    5. Operating reference
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Application area
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Company Information
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Patent & Certification
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Exhibition activities
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Packaging reference
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    Payment and logistics
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    FAQ
    Electrical IP67 Power Connector 2 Pin Male Socket Connector Industrial
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    3. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    4.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
