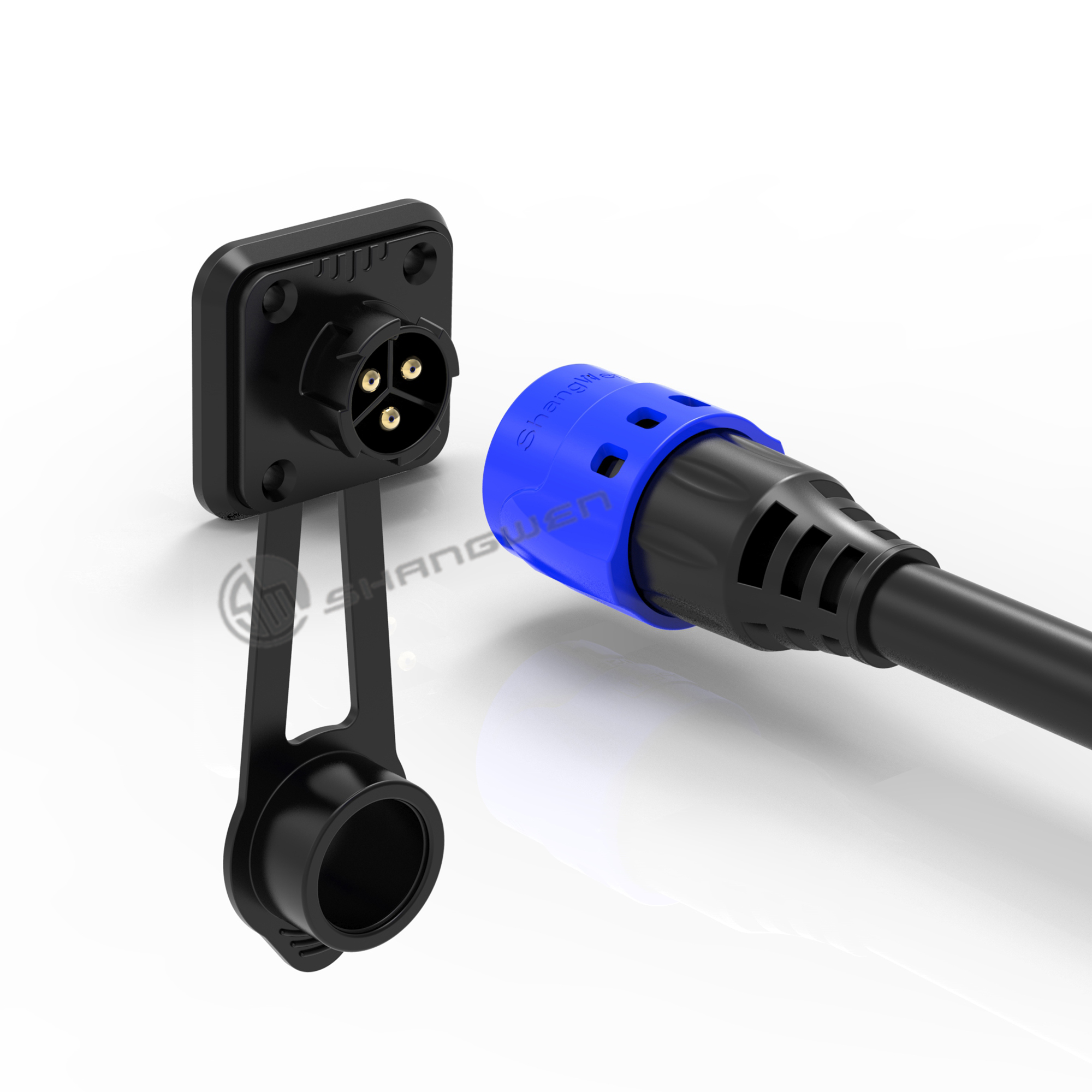

    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-3JSZ
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved


    M19 Series Self Locking System Ip67 Waterproof Industrial 3 Pin Male Socket Connector

    Products Description
    SW19 Self-locking series-3 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.
    There are two locking methods:
    1. Plastic screw connection, both locking design is very reliable.
    2. Push-pull self-locking connection
    The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
    The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
    Features
    1. Use high-performance engineering plastics to effectively reduce electromagnetic and signal RF interference generated by external high current.
    2. Optional shell color to meet different environmental requirements.
    5. Rated current: 5A/20A/30A/50A rms.
    6. The IP67 protection level is met when the product is connected.
    1. Electrical parameters
    Contacts NO.
    3 pin
    Rated current
    20A
    Rated voltage
    300V AC
    Withstand voltage
    1500V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ2.4mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃

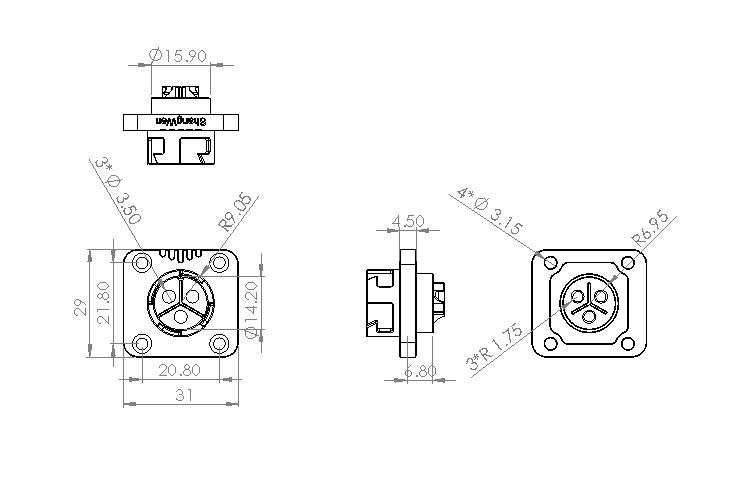

    4. Size reference (unit /mm)
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    Waterproof gasket
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    5. Operating reference
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    FAQ
    Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
