    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-2JL-T
    Supply Ability : 1000000 Piece/Pieces per Month
    Price : $1.58 - $2.20/pieces
    • Product Details
    • Company Profile

    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL


    Shenzhen Sales Screw Terminal Shape M19 Ip67 Waterproof Connector 2 Pin Plug Male

    SW19 Screw tooth series-2 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.
    There are two locking methods:
    1. Push-pull self-locking connection
    2. Plastic screw connection, both locking design is very reliable.
    The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
    The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

    Product description


    As the name implies, a waterproof connector is an electrical waterproof plug that solders cable wire and connectors together, but in addition to the water resistance of the waterproof plug, ordinary plugs usually include a plug and a socket, which is a major difference. The plug is usually a waterproof plug, which is what we usually call a waterproof male and female plug. They are connected together to form a complete set of waterproof plugs, also known as waterproof connectors, which are two products with different names, such as dedicated bicycles or electric bicycles. Electric scooter induction faucet bike sharing new energy product sensor

    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL

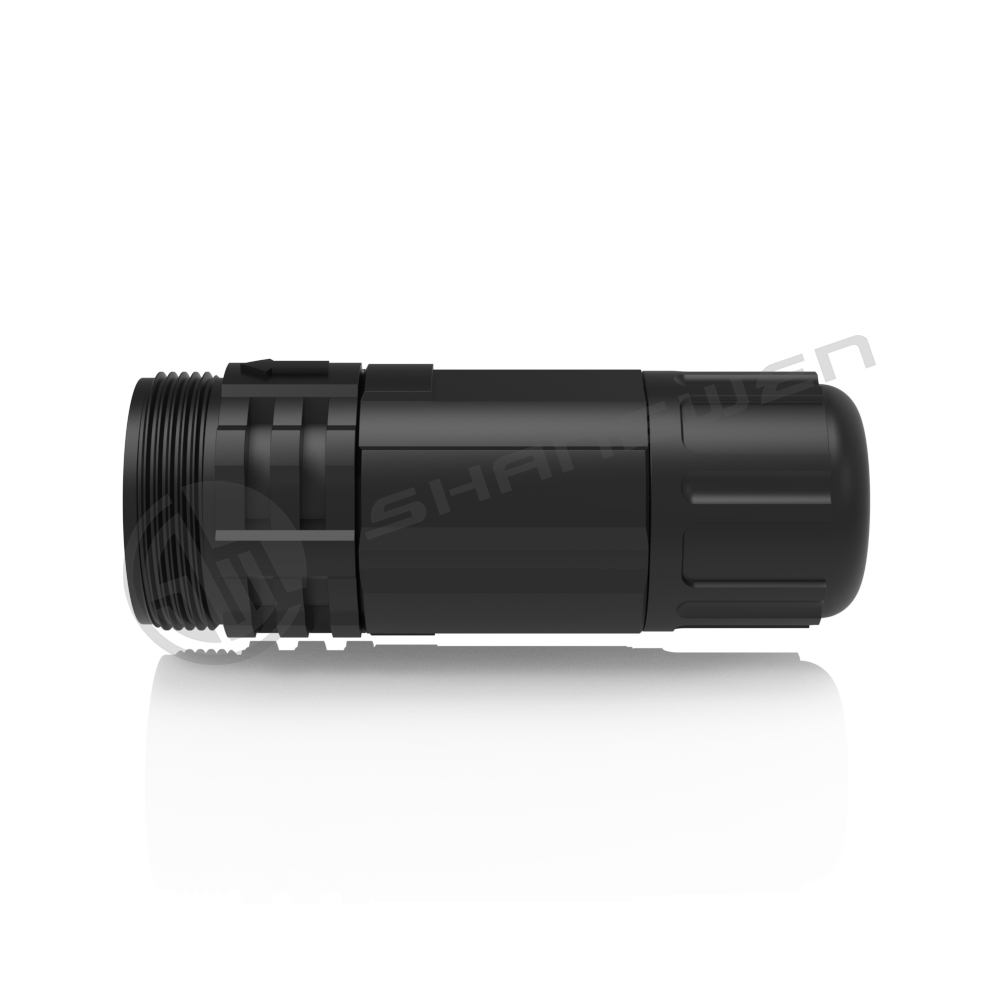

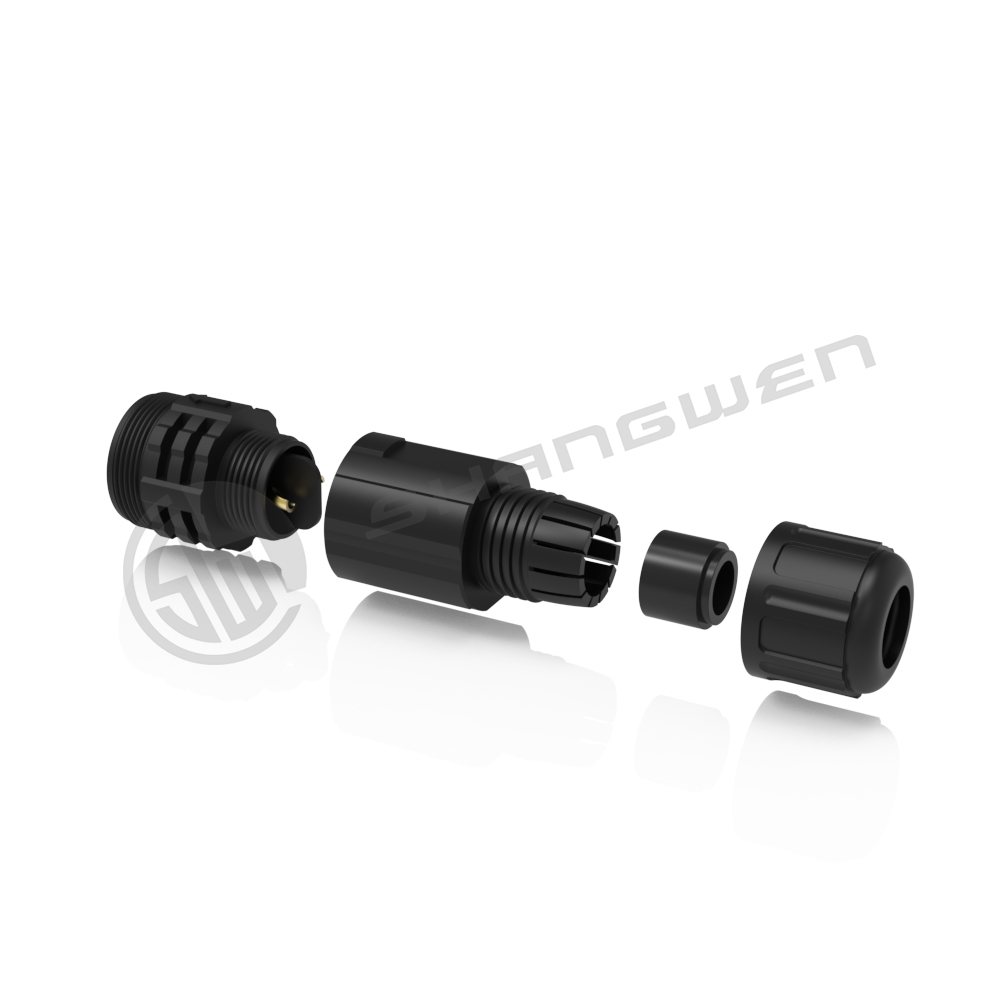

    Model : SW19-2JL-T (2 pin male plug)
    Quick, simple self locking system
    Connect reliably
    Small size of product
    Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
    Waterproof rating IP67
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    1.Electrical parameters
    Contacts NO.
    2 pin
    Rated current
    20A
    Rated voltage
    300V AC
    Withstand voltage
    1500V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2.Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Type of terminals
    Screw terminal and soldering terminal available
    3.Material and environmental parameters
    Shell
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ2.4mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃
    4.Size reference (unit /mm)
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    5.Operating reference
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Application area
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Company Information
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Patent & Certification
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Exhibition activities
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Packaging reference
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    Payment and logistics
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    FAQ
    M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A: By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
