    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-12KSFT
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical

    Wholesale Outdoor M19 Self-locking Series Female Plug 2 Pin Industrial Connectors

    SW19 Self-locking series-2 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.


    Product Description

    • Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

    • Protect from dust and water during immersion, resistant to many oils and chemicals.

    • Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

    • Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation

    application.

    • 100% new material, high-quality parts, strictly QC standard according to international customers.


    Model : SW19-2KST (2 pin female plug)


    ☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

    ☑Connect reliably
    ☑Waterproof rating IP67


    ☑Quick, simple self locking system
    ☑Small size of product

    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    1. Electrical parameters
    Contacts NO.
    2 pin
    Rated current
    20A
    Rated voltage
    300V AC
    Withstand voltage
    1500V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ2.4mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃

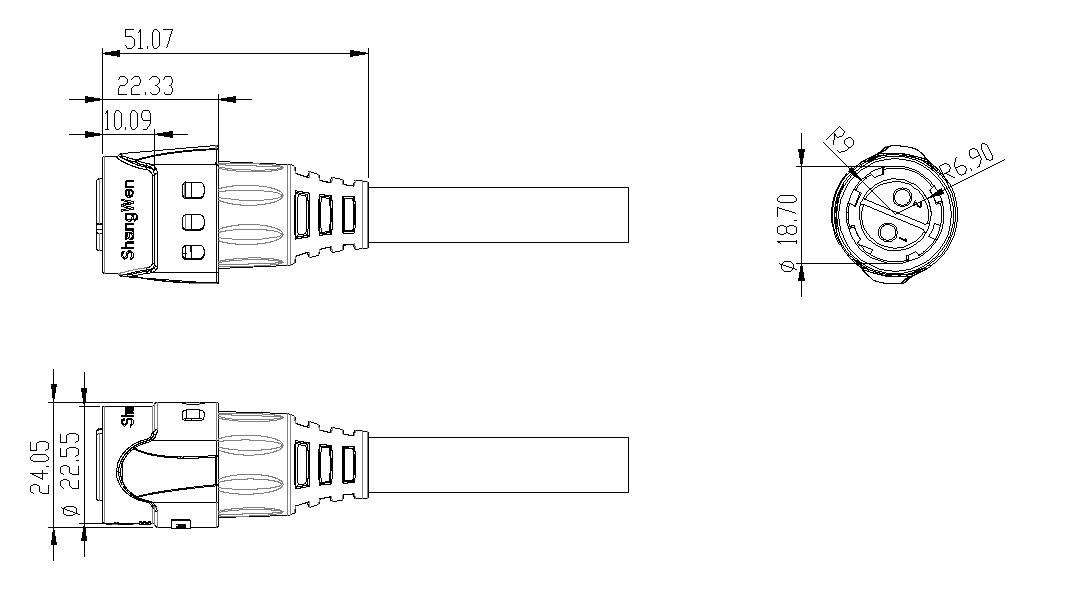

    4. Size reference (unit /mm)
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    5. Operating reference
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Application area
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Company Information
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Patent & Certification
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Exhibition activities
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Packaging reference
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    Payment and logistics
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    FAQ
    Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
