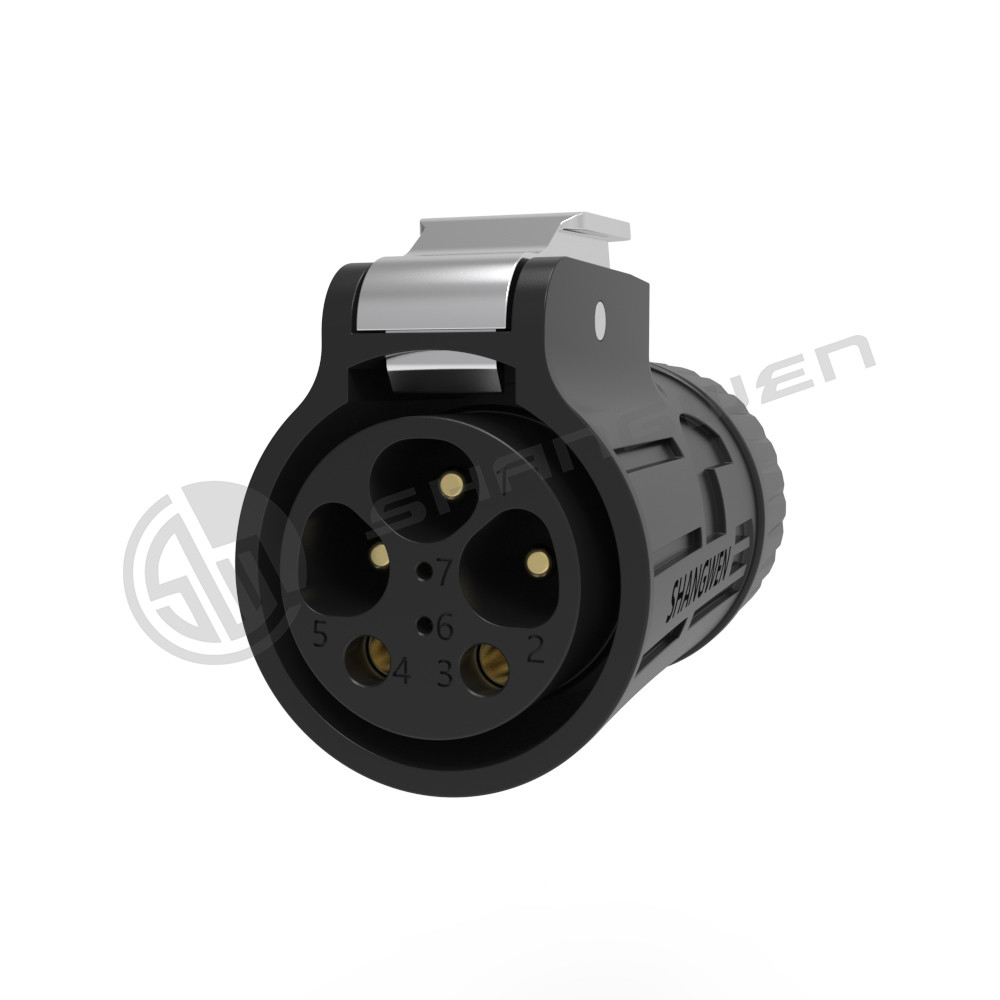

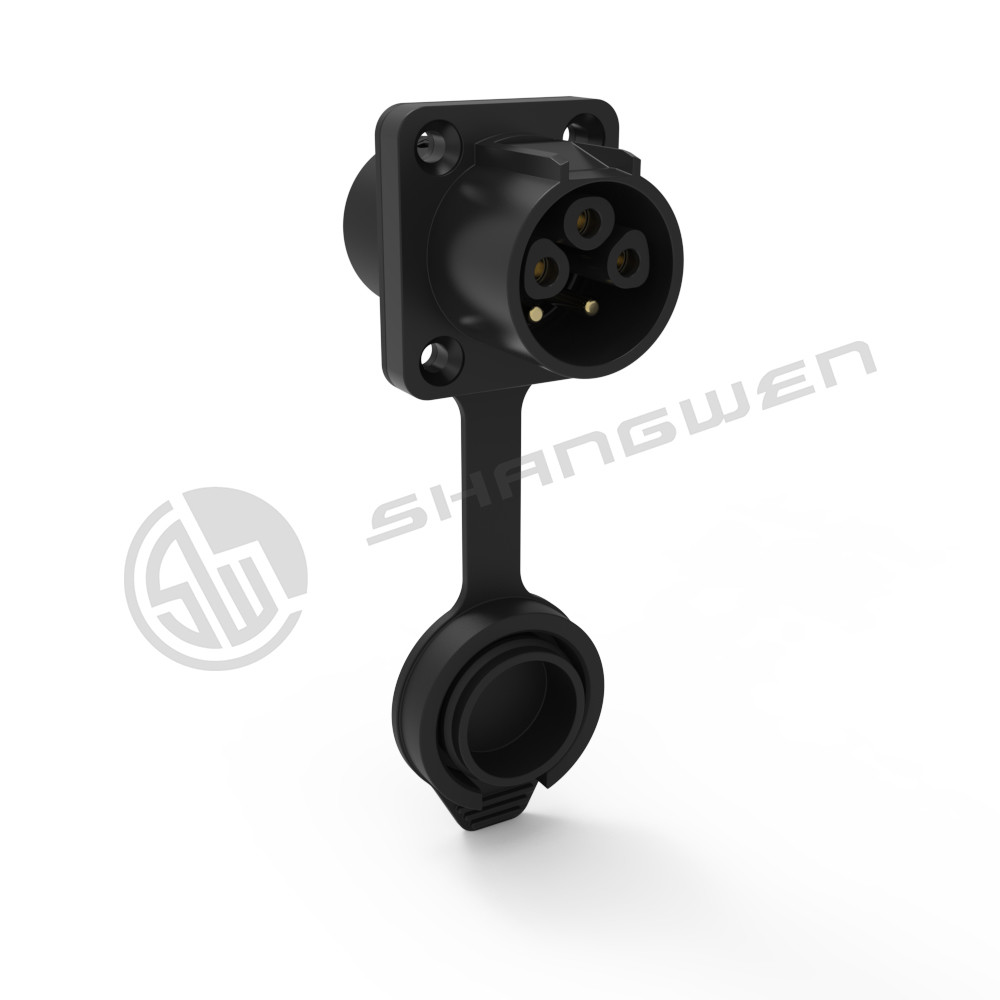

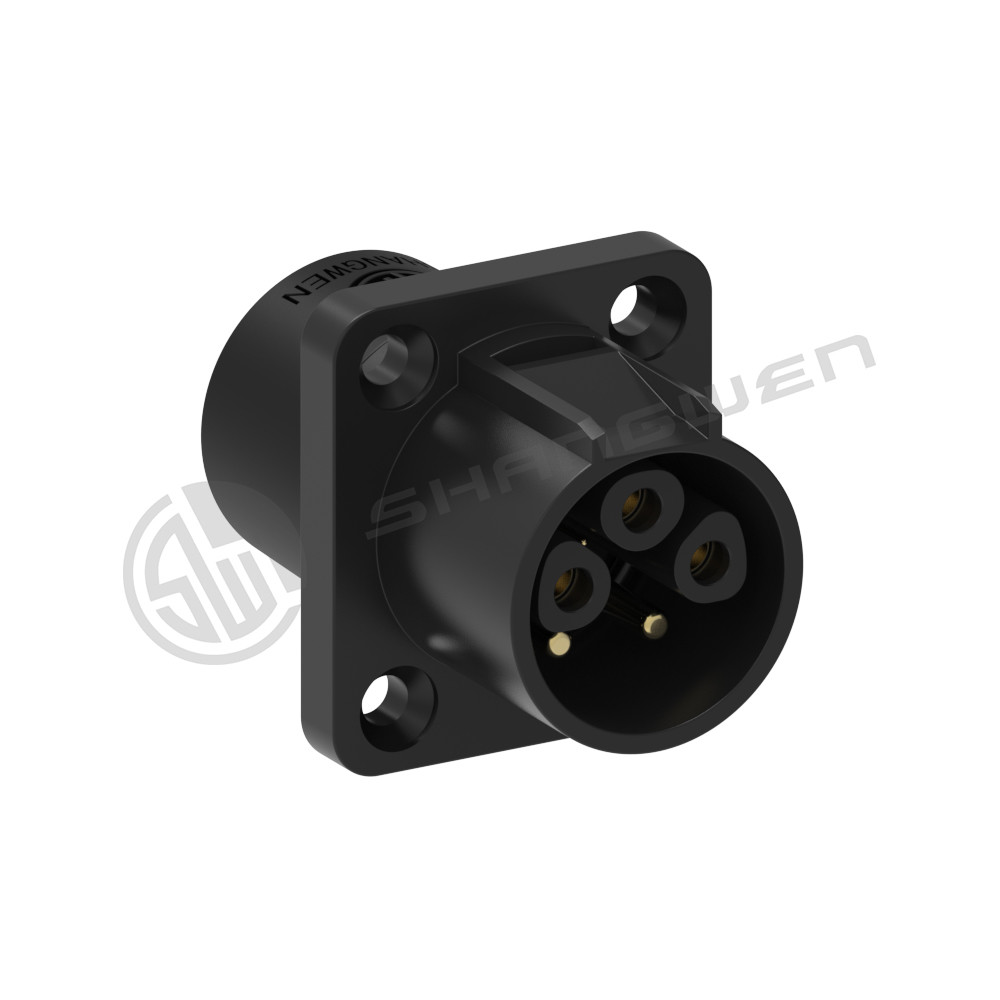

    IP67 Waterproof Male Female Power Connector Precision PBT Material

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SWM3A-ZB
    Price : $1.60 - $3.60/pieces
    • Product Details
    • Company Profile

    IP67 Waterproof Male Female Power Connector Precision PBT Material


    Shenzhen Export Waterproof Black Shell Female Male Plug 3 Pin 6 Pin Power Connector

    Products Description
    Power connector series-3 core male powercon(Metal material ,card buckle type)
    3 Pin Connector Waterproof Connectors, Ip67 Waterproof Connector Male Female Plug Socket Industrial Power Circular Connector Work with Street Light, and Other Outdoor Connections

    • Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

    • Protect from dust and water during immersion, resistant to many oils and chemicals.

    • Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

    • Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation

    application.

    • 100% new material, high-quality parts, strictly QC standard according to international customers.

    IP67 Waterproof Male Female Power Connector Precision PBT MaterialIP67 Waterproof Male Female Power Connector Precision PBT MaterialIP67 Waterproof Male Female Power Connector Precision PBT MaterialIP67 Waterproof Male Female Power Connector Precision PBT Material

    Model : SW3AM-T ( outdoor use )

    Semi-metallic style,which can meet the demands of anti-interference,high strength
    and high corrosion resistance;

    Quick and simple locking system, the keys are firm and do not fall off
    Connection mode:

    1. Screw clamping and welding
    2. Lock the cable with screws
    Protection level: used in outdoor scenes,

    Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
    High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

    Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding protection level up to IP65/IP67

    Adopt one key press button locking method,plug and play,fast and convenient;
    Zinc alloy internal structure and base, with complete electromagnetic and radio frequency interference protection
    The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
    transmission and electrical conductivity
    Multi-style inner core design to meet the needs of various industries
    Precision waterproof design,with high waterproof level,no fear of wading environment;
    The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0


    Contacts NO.
    Φ2.0* 3 pin
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤4mΩ
    Withstand voltage
    2500V AC
    Insulation resistance
    >1000MΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    4mm²
    Wire stripping length
    φ9-12mm
    Type of terminals
    Soldering
    3. Material and environmental parameters
    Shell&insulated parts
    PBT
    Hardware metal
    Zinc alloy
    Contacts
    Brass with gold-plated
    Sealing
    Silicone/rubber
    Flame-retardant grade
    UL94-V0
    Temperature range
    -30°C to +80°C
    Temperature rise
    Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
    Protection level
    IP65
    4. Size reference (unit /mm)
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    5. Installation reference drawing
    Application area
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    Patent & Certification
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    Exhibition activities
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    Payment and logistics
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    FAQ
    IP67 Waterproof Male Female Power Connector Precision PBT Material
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6 . Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
