    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW3AJ-TB
    Price : $1.60 - $2.80/pieces
    • Product Details
    • Company Profile

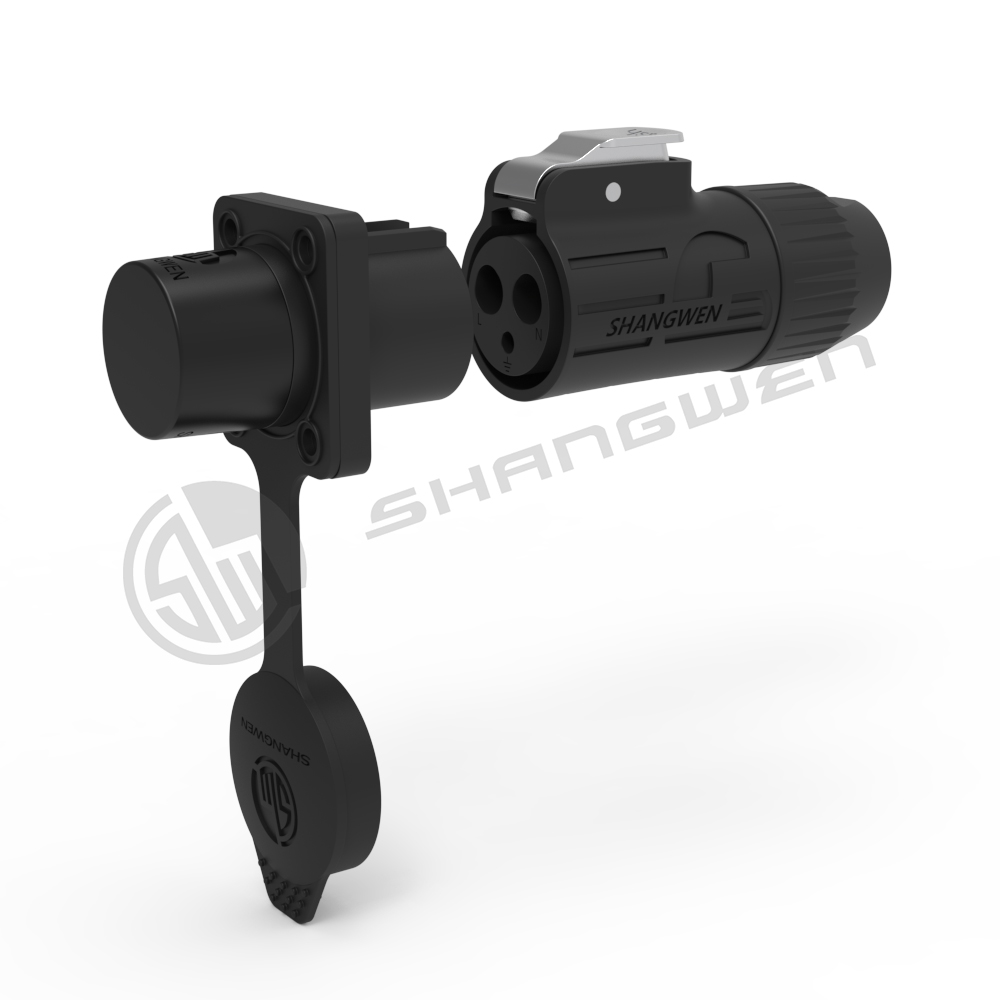

    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors


    Waterproof Black Plastic Outdoor 3 Core Male Powercon 3 Pin Audio Video Connectors


    1: With multi-core(2-9 core) design to fit with different industrial needs.

    2: Design snap lock ensures stable and security firm.

    3: Humanization design achieved blind operation.

    4: Both soldering and crimping are available.

    5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

    6: Gold-plating;high strength corrosion resistance and electrical conductivity.

    7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

    8: Both cable connector to cable connector and cable connector to panel mounting are available.

    9: IP65 to IP67 when mated.

    Products Description
    Power connector series-3 core male powercon(card buckle type)
    This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
    The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
    The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
    The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    1. Electrical parameters
    Contacts NO.
    Φ2.0* 3 pin
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤4mΩ
    Withstand voltage
    2500V AC
    Insulation resistance
    >1000MΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    2.5mm²-4mm²
    Wire stripping length
    7-8mm
    Type of terminals
    Soldering
    3.Material and environmental parameters
    Shell&insulated parts
    PBT
    Contacts
    Brass with gold-plated
    Sealing
    Silicone/rubber
    Flame-retardant grade
    UL94-V0
    Temperature range
    -30°C to +80°C
    Temperature rise
    Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
    Protection level
    IP65
    4. Size reference (unit /mm)
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    5.Installation reference drawing
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Application area
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Company Information
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Patent & Certification
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Exhibition activities
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Packaging reference
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    Payment and logistics
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    FAQ
    Black 3 Pin IP67 Power Connector 3 Core Audio Video Connectors
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
