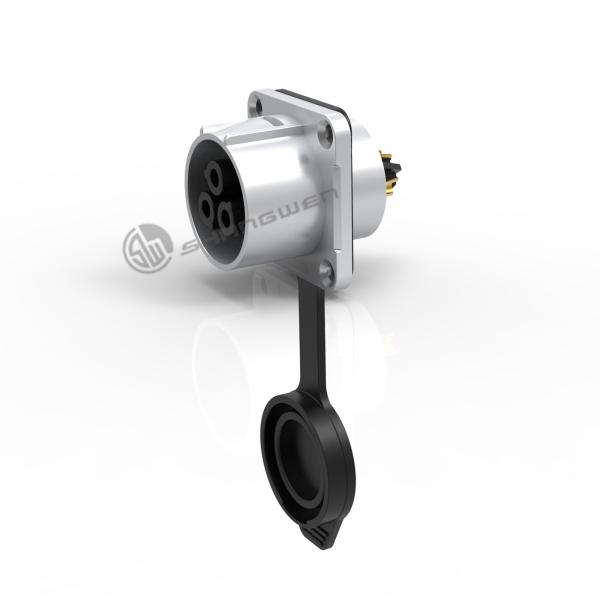

Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female

    Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers

    Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers
    • Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers
    • Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers
    • Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers
    • Buy cheap Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female from wholesalers

    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW3AM-K
    Price : $1.60 - $3.60/pieces
    • Product Details
    • Company Profile

    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female


    Anti-interference 3 Core Metal Powercon Waterproof Female Connector For Industrial Equipment

    Products Description
    Power connector series-3 core female powercon(Metal material ,card buckle type)

    Model : SW3AM-K ( outdoor use )

    ☑Semi-metallic style,which can meet the demands of anti-interference,high strength

    and high corrosion resistance;

    ☑Adopt one key press button locking method,plug and play,fast and convenient;

    ☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

    ☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

    transmission and electrical conductivity

    ☑Precision waterproof design,with high waterproof level,no fear of wading environment;

    ☑Connection mode:

    1. Screw clamping and welding

    2. Lock the cable with screws

    ☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;

    ☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    1. Electrical parameters
    Contacts NO.
    Φ2.0* 3 pin
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤4mΩ
    Withstand voltage
    2500V AC
    Insulation resistance
    >1000MΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    4mm²
    Wire stripping length
    φ9-12mm
    Type of terminals
    Soldering
    3. Material and environmental parameters
    Shell&insulated parts
    PBT
    Hardware metal
    Zinc alloy
    Contacts
    Brass with gold-plated
    Sealing
    Silicone/rubber
    Flame-retardant grade
    UL94-V0
    Temperature range
    -30°C to +80°C
    Temperature rise
    Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
    Protection level
    IP65
    4. Size reference (unit /mm)
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    5. Installation reference drawing
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Application area
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Company Information
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Patent & Certification
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Exhibition activities
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Packaging reference
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    Payment and logistics
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    FAQ
    Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
