    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW8FD-NGV
    Price : $2.00/pieces
    • Product Details
    • Company Profile

    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape


    New Design Indoor Use Latch Lock D Shape Female Chassis Signal Rj45 Connector Socket

    Products Description

    Signal connector series-RJ45 connector

    Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
    Introducing the SW8FD-NGH (indoor use) model, a high-quality panel connector designed with a D-shape and a uniform metal flange, adhering to standard D-style installation size.

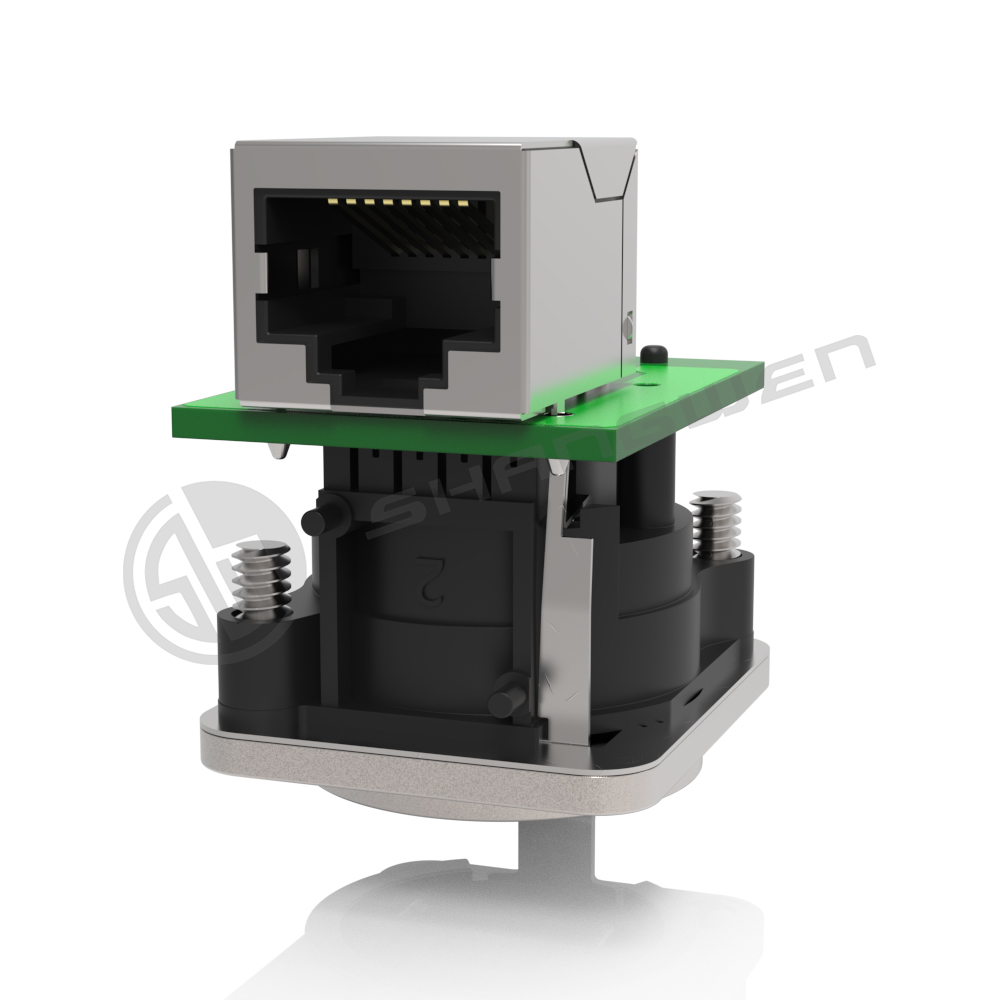

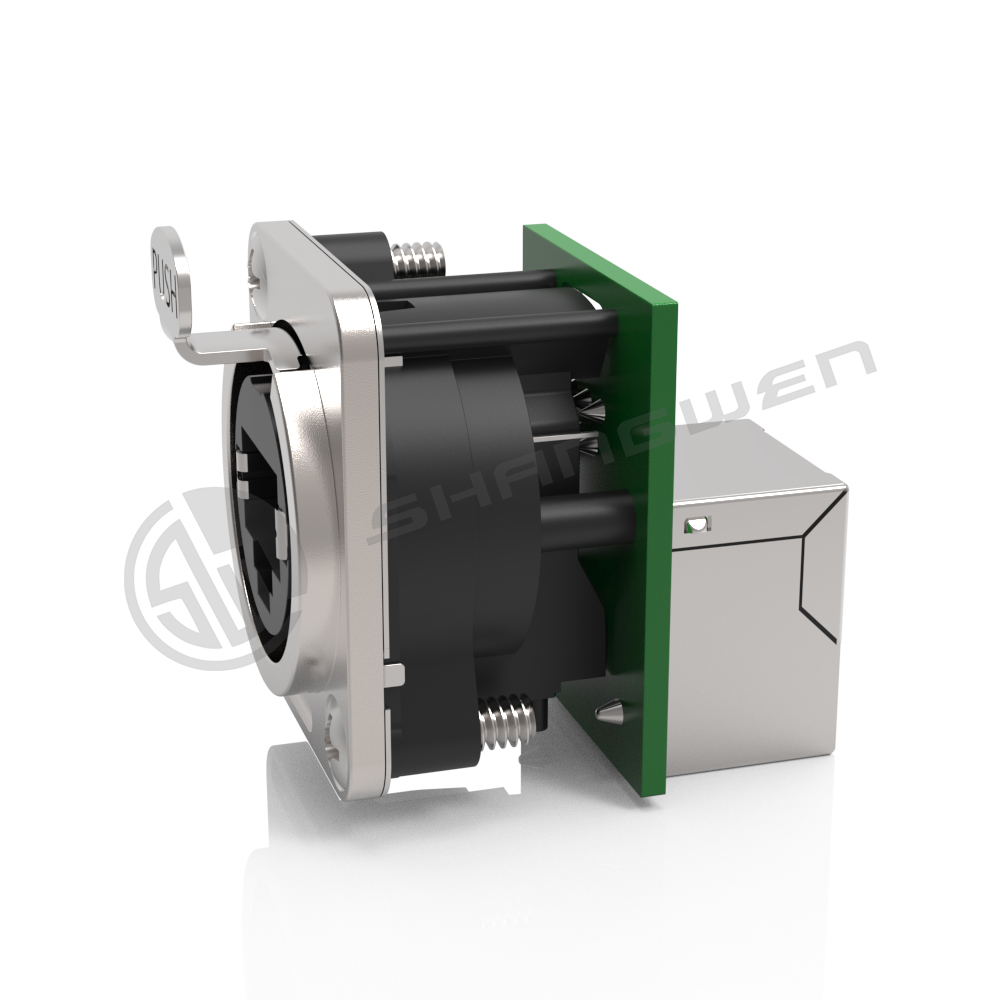

    This connector offers a convenient installation process as it can be easily mounted from the rear of the panel. With a feedthrough RJ45 at the rear end, it provides seamless connectivity for your networking needs.
    One of the notable features of the SW8FD-NGH model is its versatility. It can be mounted either from the front or rear of the panel, providing flexibility in your installation setup. Additionally, this connector complies with CAT 5e standards according to TIA/EIA568B and ISO/IEC11801, ensuring reliable and efficient data transmission.
    With its user-friendly design and adherence to industry standards, the SW8FD-NGH model offers a dependable and efficient solution for your indoor networking requirements. Its D-shape panel connector, uniform metal flange, and compatibility with CAT 5e standards make it a reliable choice for a wide range of applications.
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    1. Electrical parameters
    Contact resistance
    <10mΩ
    Rated current
    1.5 A
    Rated voltage
    50 V
    Insulation resistance
    ≥0.5GΩ
    Dielectric strength
    1KV DC
    Frequencyrange
    1-100 MHz
    Transmission performance
    CAT 5e
    2. Mechanical parameters
    Service life
    >1000
    Insertion force
    ≤ 20 N
    Locking device
    latch lock
    Chassis shape
    D
    3. Material and environmental parameters
    Shell
    Zinc diecast (ZnAl4Cu1)
    Contacts
    Bronze
    Insert
    PBT
    Contact surface
    Au
    Shell surface
    Ni
    Temperature range
    -30℃to +80℃
    4. Standard
    Standard
    TIA/EIA586B, IEC11801
    4.Size reference (unit /mm)
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    5.Internal structure reference
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    6. Installation instructions with SW8MC-A plugs
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Application area
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Company Information
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Patent & Certification
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Exhibition activities
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Packaging reference
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    Payment and logistics
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    FAQ
    Signal Rj45 Female Connector Socket Indoor Use Latch Lock D Shape
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
