    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW8FDYV-B30
    Price : $2.70 - $4.10/pieces
    • Product Details
    • Company Profile

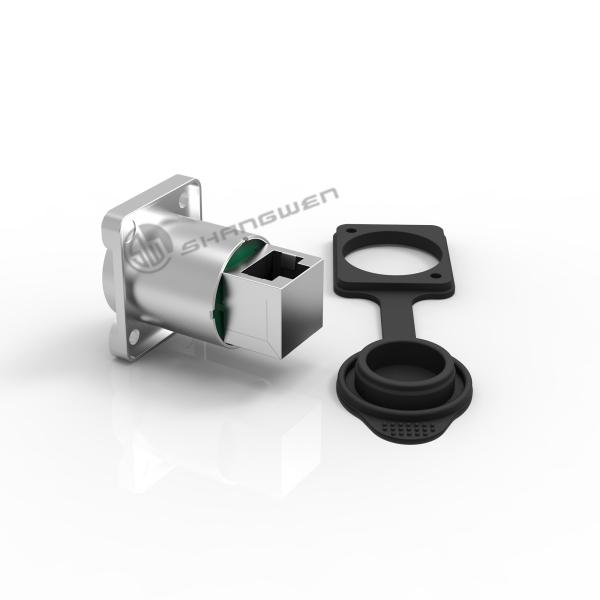

    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector


    Outdoor Industrial Equipment Signal Connector Rj45 Crystal Seat Waterproof Female Connector


    Model:SW8FDYV-B30(outdoor use)
    *The rear end has a 90°RJ45 crystal socket, IP65*
    ☑Can be equipped with SW8MC-03 or any standard RJ45 connector, one-hand operation, one key plug and unplug
    ☑D style with uniform metal flange, standard D mounting size
    ☑The back-end can be flexibly modified according to actual requirements
    ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
    ☑D style, can be mounted from front or rear panel
    ☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached, which can fully meet the durable and stable signal transmission under harsh outdoor conditions
    ☑All-metal housing with waterproof rear end
    ☑With shielding function
    ☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards

    Products Description
    Signal connector series-RJ45 connector(Metal button upgrade model)

    Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.


    Application

    industrial, medical, communication, automation

    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    Company Information
    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    Patent & Certification
    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    Exhibition activities
    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    Packaging reference
    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    Payment and logistics
    Electrical Waterproof Rj45 Female Connector Outdoor Industrial Chassis Connector
    FAQ
    1. Why do we choose SHANG WEN supply?
    A: We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
