    Audio Industrial Rj45 Female Connector Waterproof Panel Mount

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW8FDYV-30
    Price : $2.50 - $3.60/pieces
    • Product Details
    • Company Profile

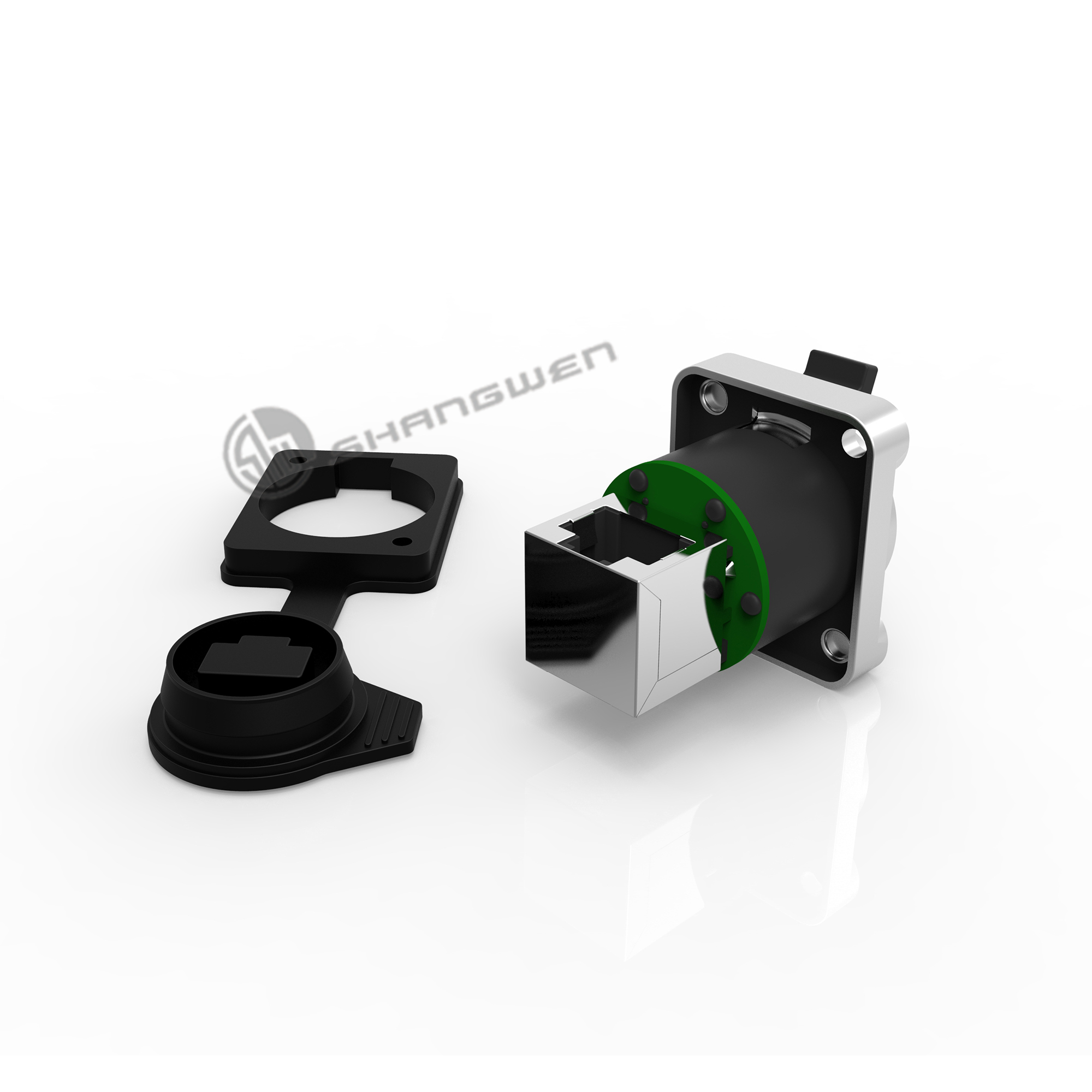

    Audio Industrial Rj45 Female Connector Waterproof Panel Mount


    Waterproof Ip65 Angled Top Network Plug Panel Mount Outdoor Audio Industrial Rj45 Female Connector


    1. Electrical parameters
    Contact resistance
    <10mΩ
    Rated current
    1.5 A
    Rated voltage
    50 V
    Insulation resistance
    ≥0.5GΩ
    Dielectric strength
    1KV DC
    Frequencyrange
    1-100 MHz
    Transmission performance
    CAT 5e
    2. Mechanical parameters
    Service life
    >1000 mating cycles
    Insertion force
    ≤ 20 N
    Locking device
    latch lock
    Chassis shape
    D style
    3. Material and environmental parameters
    Shell
    Zinc diecast
    Contacts
    Bronze
    Insert
    PBT
    Contact surface
    Au
    Shell surface
    Ni
    Temperature range
    -30℃to +80℃

    Model:SW8FDYV-30(outdoor use)

    *The rear end is a 90°RJ45 crystal seat, and the opening direction is the same as the direction of the female seat keys, IP65*

    ☑Can be compatible with SW8MC-B or any standard RJ45 connector

    ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E

    ☑With shielding function

    ☑The back-end can be flexibl

    ☑D style with uniform metal flange, standard D mounting size

    ☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards

    ☑D style, can be mounted from front or rear panely modified according to actual requirements


    Products Description
    Signal connector series-RJ45 connector
    Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount

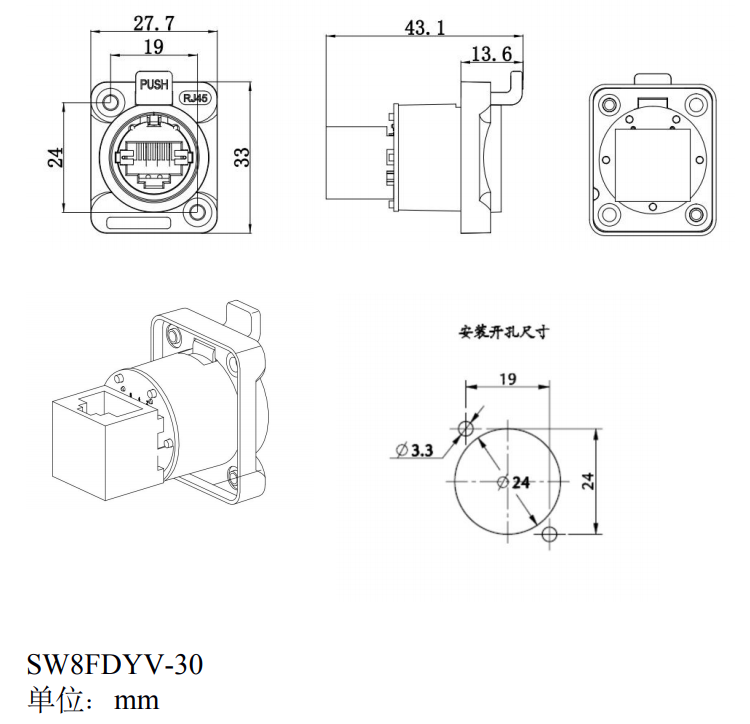

    Size reference (unit /mm)
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Internal structure reference
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Installation instructions with SW8MC-B plugs
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
    Application area
    Audio Industrial Rj45 Female Connector Waterproof Panel Mount
