    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW8FDYH
    Price : $2.50 - $3.60/pieces
    • Product Details
    • Company Profile

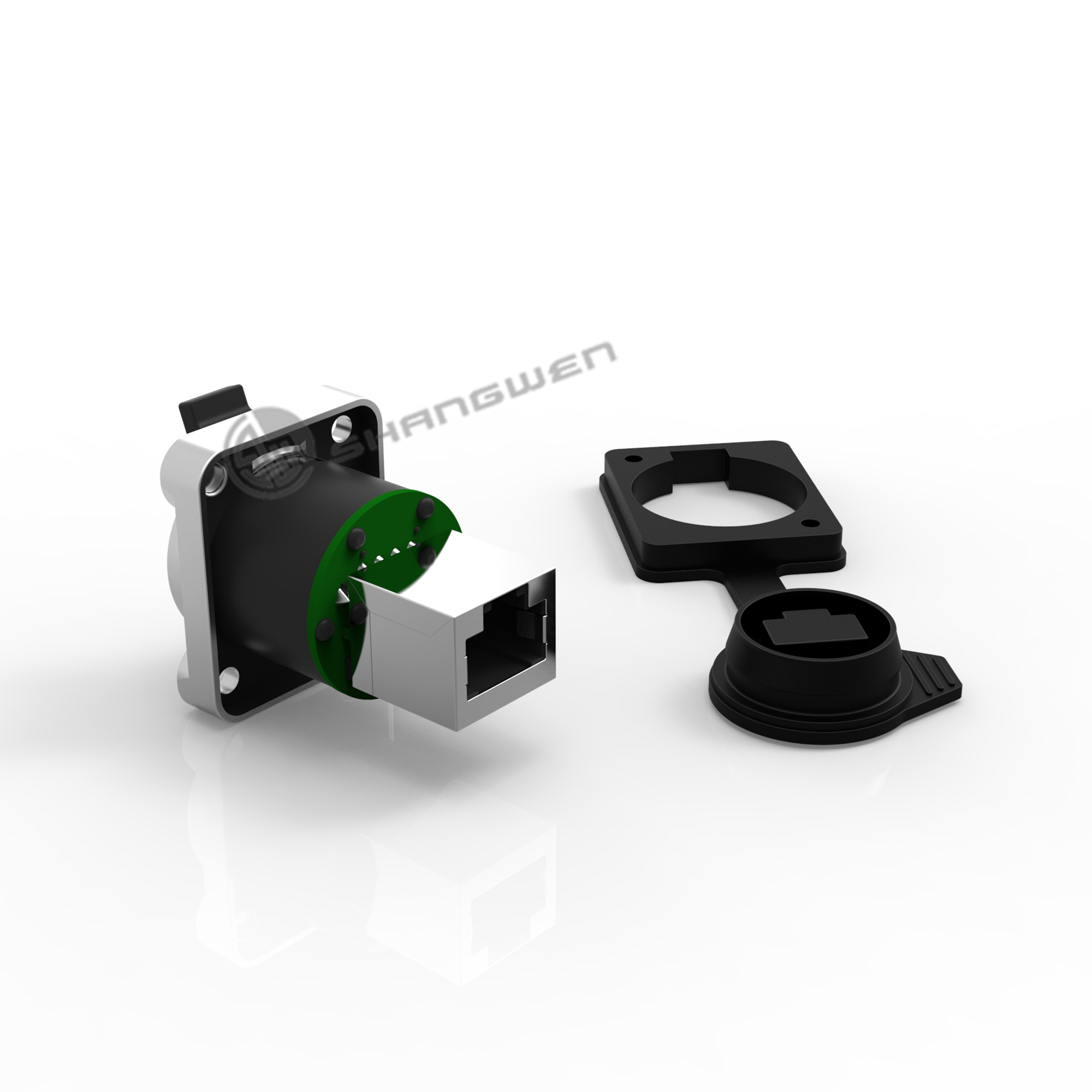

    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45


    Industrial Ethernet Panel Mount Straight Crystal Socket Outdoor 8 Pin Rj45 Waterproof female Connector IP65


    Model:SW8FDYH(outdoor use)

    *The rear end is a straight RJ45 crystal socket, IP65*

    ☑Can be compatible with SW8MC-B or any standard RJ45 connector
    ☑D style with uniform metal flange, standard D mounting size
    ☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
    ☑D style, can be mounted from front or rear panel
    ☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached, which can fully meet the durable and stable signal transmission under harsh outdoor conditions
    ☑The back-end can be flexibly modified according to actual requirements
    ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
    ☑With shielding function

    Products Description

    Signal connector series-RJ45 connector

    Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    1. Electrical parameters
    Contact resistance
    <10mΩ
    Rated current
    1.5 A
    Rated voltage
    50 V
    Insulation resistance
    ≥0.5GΩ
    Dielectric strength
    1KV DC
    Frequencyrange
    1-100 MHz
    Transmission performance
    CAT 5e
    2. Mechanical parameters
    Service life
    >1000
    Insertion force
    ≤ 20 N
    Locking device
    latch lock
    Chassis shape
    D
    3. Material and environmental parameters
    Shell
    Zinc diecast (ZnAl4Cu1)
    Contacts
    Bronze
    Socket
    PBT
    Contact surface
    Au
    Shell surface
    Pearl Cr
    Temperature range
    -30℃to +80℃
    4. Size reference (unit /mm)
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    5. Internal structure reference
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    6. Installation instructions with SW8MC-B plugs
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
    Application area
    Ethernet 8 Pin Waterproof Connector Socket Female Connector Rj45
