    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-9JSZ
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector


    Factory Sales 9 Pin Male Socket Connector Industrial Ip67 Waterproof Connector


    Products Description
    1. IP67 M19 connector 2-pin plug fusion cable.
    2. You can connect male to female. You can also use 1m or other length of wire to customize the extension cable (one side is a female waterproof plug; the other is a female waterproof plug).
    3. Can provide colors and materials, and terminal processing.
    4. Professional R & D team can help customize the project.
    5. Can provide you with customized solutions.

    SW19 Self-locking series-9 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.
    There are two locking methods:
    1. Push-pull self-locking connection
    2. Plastic screw connection, both locking design is very reliable.
    The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
    The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
    Model : SW19-9JSZ (9 pin male socket)

    Connect reliably

    Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
    Waterproof rating IP67

    Quick, simple self locking system
    Small size of product


    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
    1. Electrical parameters
    Contacts NO.
    9 pin
    Rated current
    5A
    Rated voltage
    60V AC
    Withstand voltage
    125V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Cable size
    0.3mm²-2.5mm²(22AWG-12AWG)
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ1.0mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃
    4. Size reference (unit /mm)
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector

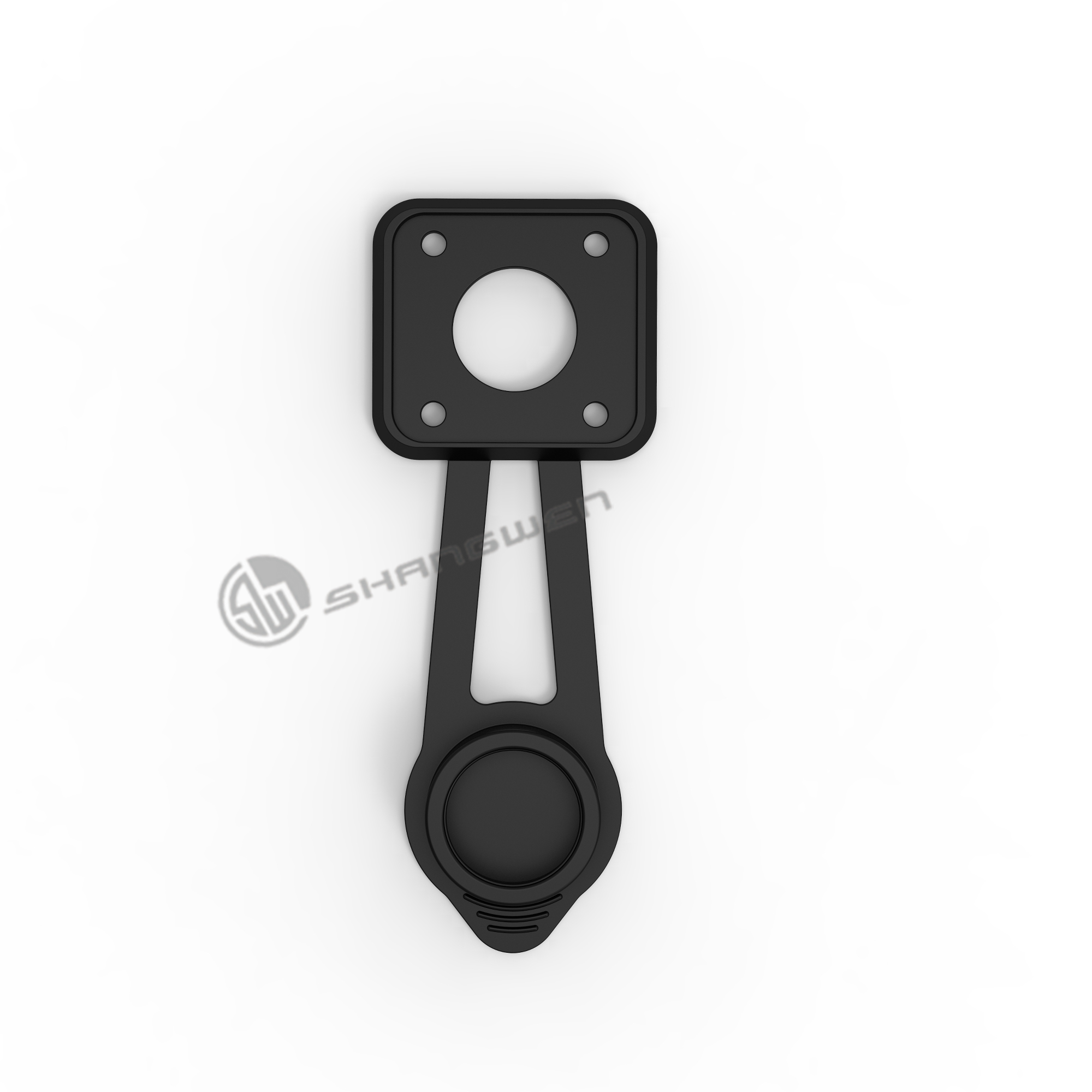

    Waterproof gasket
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
    5. Operating reference
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
    Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
