    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW19-12K-LT
    Price : $2.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

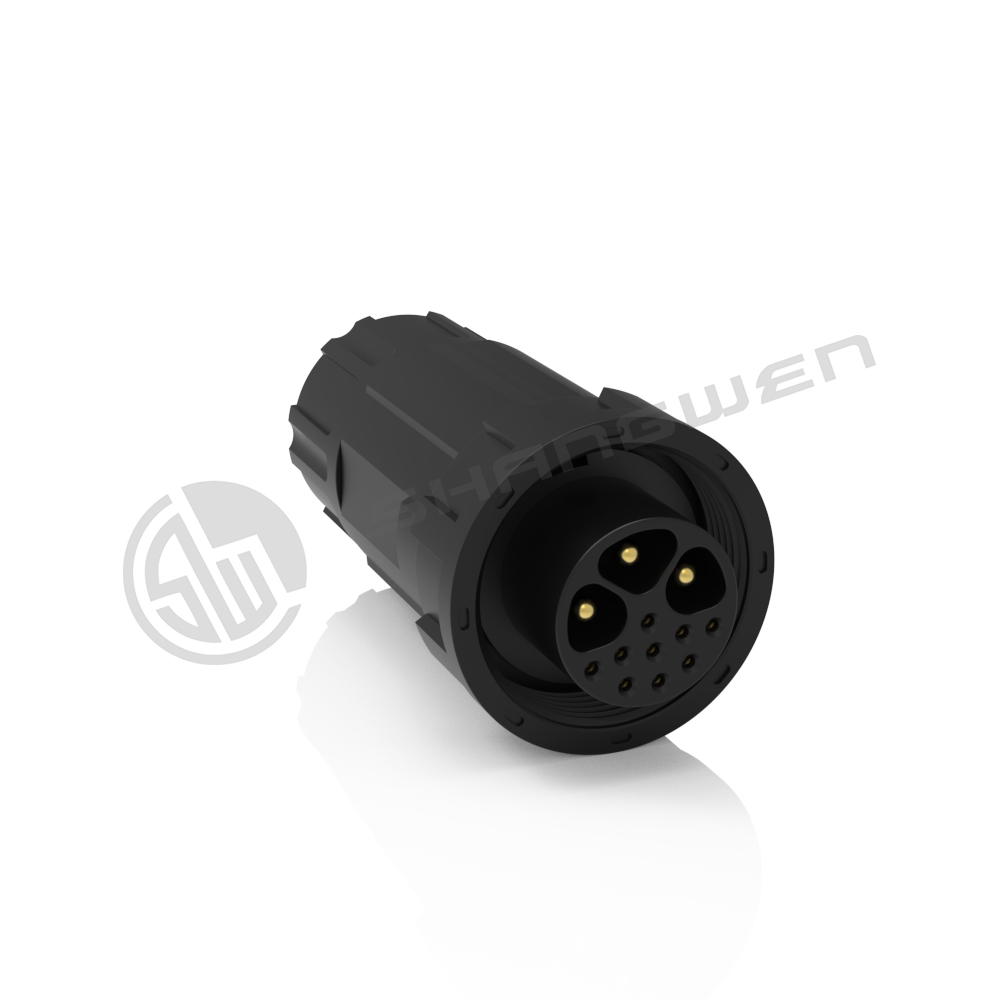

    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector

    New Design Industrial Screw Tooth Type Black Shell 3+9 Pin Female Plug M19 Connector


    Model: SW19-12K-LT (3+9 pin female plug)

    ☑Quick, simple self locking system
    ☑Connect reliably
    ☑Small size of product

    ☑Multi-style inner core design to meet the needs of various industries
    ☑Protection level: used in outdoor scenes, protection level up to IP67
    ☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
    ☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
    ☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
    transmission and electrical conductivity

    Products Description
    SW19 Screw tooth series-3+9 Pin connector
    M19 series is an industrial connector, which includes male plug, female plug and male socket.
    The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
    The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
    There are two locking methods:
    1. Push-pull self-locking connection
    2. Plastic screw connection, both locking design is very reliable.
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    1. Electrical parameters
    Contacts NO.
    3+9 pin
    Rated current
    5A
    Rated voltage
    60V AC
    Withstand voltage
    125V
    Insulation resistance
    ≥100mΩ
    Contact resistance
    ≤10mΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    Φ4.5mm-Φ11mm
    Cable size
    0.3mm²-2.5mm²(22AWG-12AWG)
    Type of terminals
    Screw terminal and soldering terminal available
    3. Material and environmental parameters
    Shell&insulated parts
    High performance engineering plastics
    Contacts
    Copper alloy
    Contact diameter
    Φ1.0mm
    Protection degree
    IP67
    Flame-retardant grade
    UL94-V0
    Temperature range
    -40℃~105℃
    4.Size reference (unit /mm)
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Operating reference
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Application area
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Company Information
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Patent & Certification
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Exhibition activities
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Packaging reference
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    Payment and logistics
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    FAQ
    Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
