    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin male socket
    Price : $2.22/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket


    China Manufacturer Outdoor Waterproof 5 Pins Connector XLR Audio Male Socket 5 Pin Connector


    Products Description

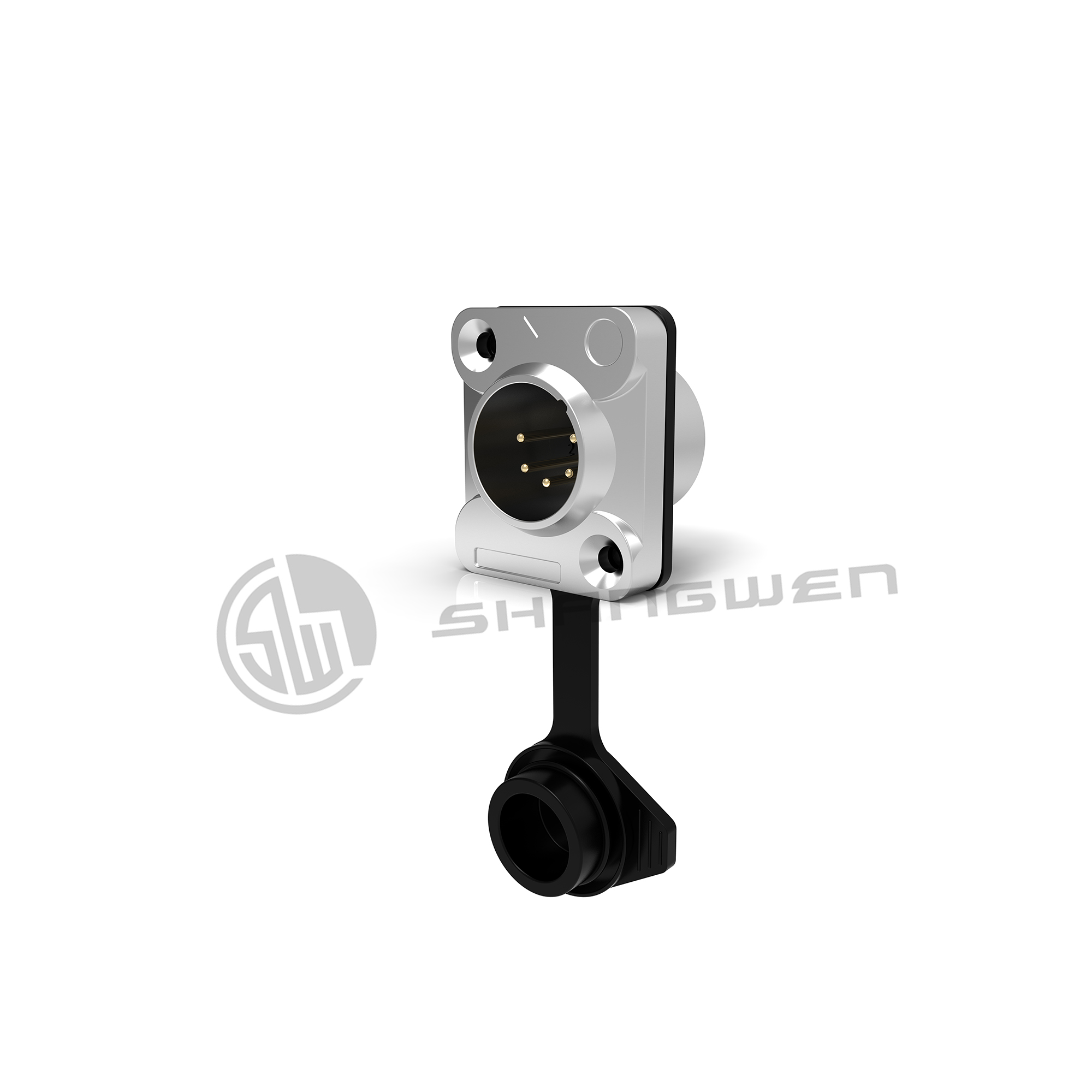

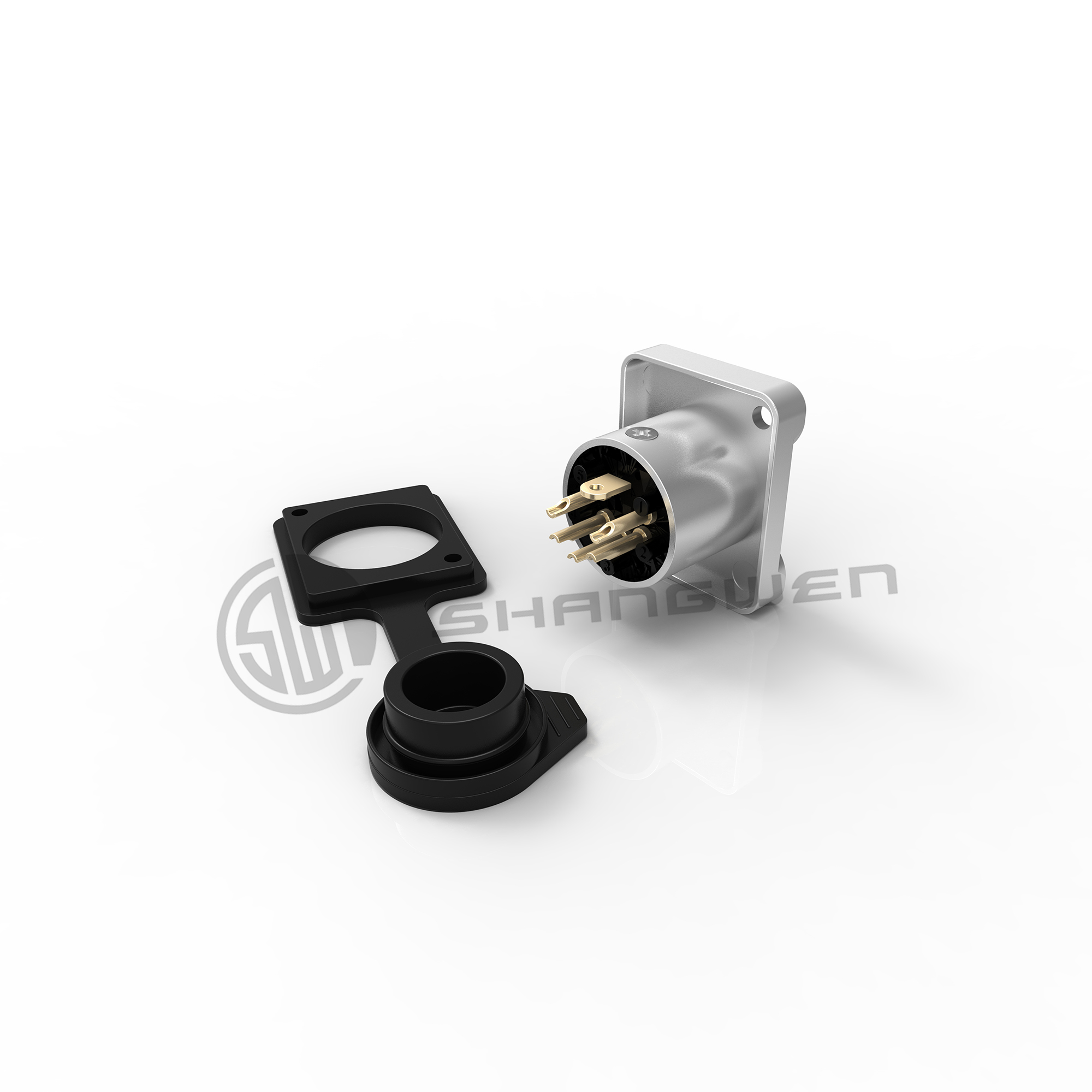

    Waterproof XLR connector-5 pin male socket

    A waterproof XLR connector with a 5-pin male socket is primarily used for audio connections in environments that are damp or rainy. This type of waterproof connector is commonly found in outdoor audio equipment, stage lighting control systems, performance venues, and sports stadiums.


    The design of the waterproof XLR connector aims to provide reliable protection, preventing water, moisture, and other liquids from infiltrating the interior of the connector and safeguarding the quality of audio transmission. It typically features specialized sealing rings and a waterproof socket design, ensuring stable operation even in harsh weather conditions.


    The applications of this connector are widespread and can be found in outdoor music festivals, concerts, open-air theaters, and other settings that require water-resistant performance. It enables audio equipment to function properly in adverse weather conditions while maintaining clear and stable sound quality, providing users with an exceptional audio experience.


    In summary, the primary purpose of a waterproof XLR connector is to offer reliable protection and high-quality audio transmission for environments that require audio connections in damp or rainy conditions.



    Model:SW5XMZ-F-B (Black)

    SW5XMZ-F(Silver)


    ☑Sealed rubber jacket is waterproof and dust-proof

    ☑Standard D mounting dimensions, fully matched to existing installation

    ☑Zinc alloy shell, contact point gold-plated

    ☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry

    ☑Waterproof IP65

    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kV DC
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4. Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃
    5. Size reference (unit /mm)
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Waterproof rubber(Unit:mm)
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    6. Assembly reference
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Application area
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Company Information
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Patent & Certification
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Exhibition activities
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Packaging reference
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    Payment and logistics
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    FAQ
    Audio XLR Connector Outdoor Waterproof 5 Pin Connector Male Socket
    1. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
