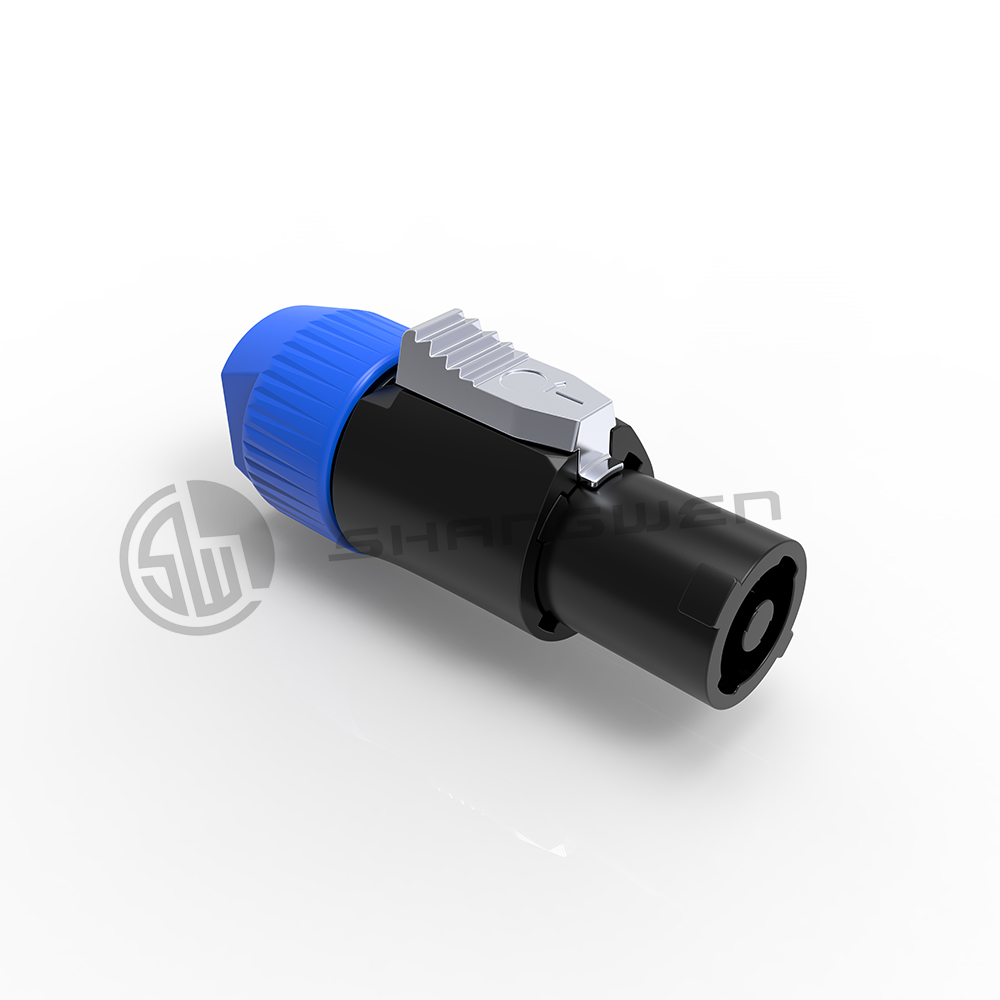

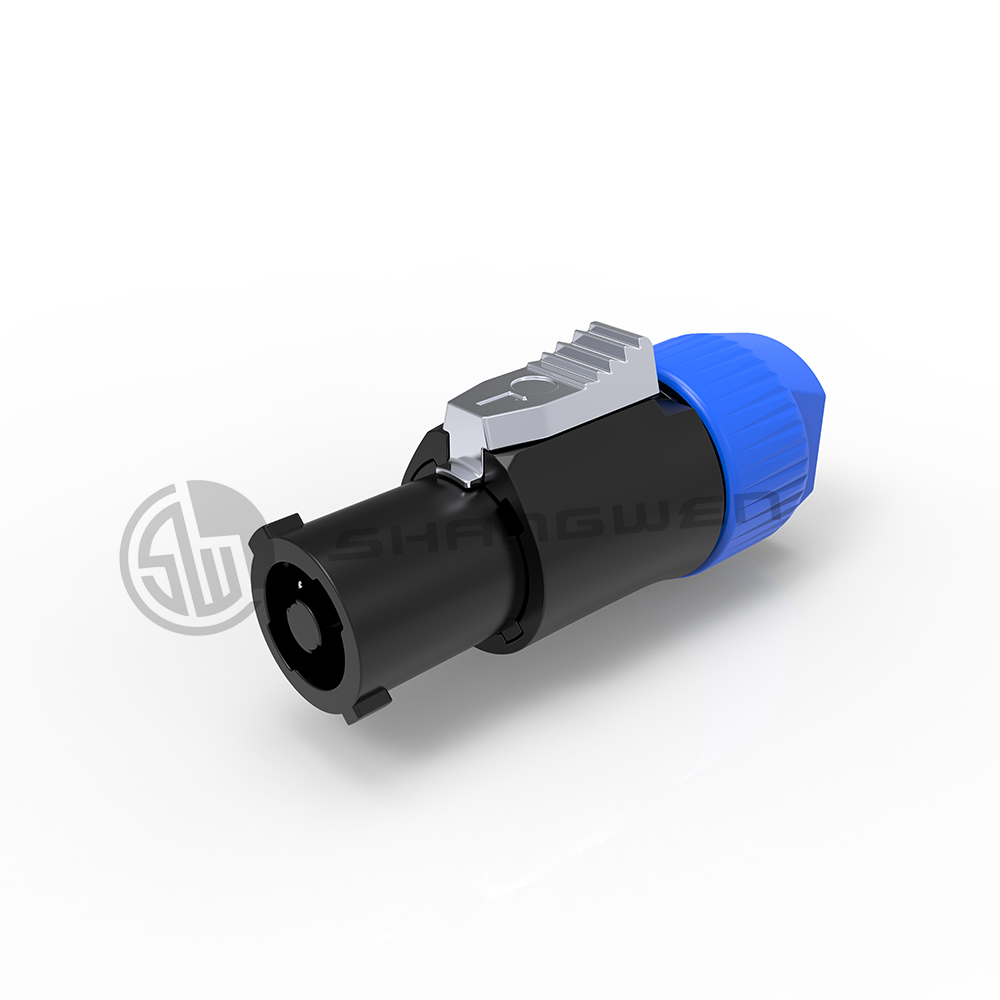

30A Loudspeaker Connector Electrical 4 Pin Speakon Connector

    Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers

    Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers
    • Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers
    • Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers
    • Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers
    • Buy cheap 30A Loudspeaker Connector Electrical 4 Pin Speakon Connector from wholesalers

    30A Loudspeaker Connector Electrical 4 Pin Speakon Connector

    Ask Lasest Price
    Brand Name : Shang Wen
    Model Number : SWF4S-T
    Certification : Rohs
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000+pcs+per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    30A Loudspeaker Connector Electrical 4 Pin Speakon Connector

    4pin Speakon Connector 30A Screw Terminals For Audio Applications Loudspeaker Cable Connectors

    SWF4S-T is widely used in professional audio equipment field.

    The speakon cable connectors are the industry-standard connectors for amplifier / loudspeaker connections.

    The entire family of 4 and 8 pole cable connectors has been designed to operate in high current, inductive load environment of loudspeakers. The cable connectors feature a robust plastic housing, a unique locking principle and touch proof contacts. 4 pole cable connector, chuck type strain relief The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

    Product features


    Up to 30A rms current rating
    Cable strain relief for 6-15mm cable O.D.
    Glass reinforced material for insert and housing,long-lasting and dependable
    Reliable and robust, easy and fast to assemble
    Accurate and dependable twist lock latching system "Quick Lock"
    User friendly latch design for easy handling


    Technical parameters

    -Electrical parameters


    Contacts No.4
    Rated current30A
    Rated voltage250V AC
    Contact resistance≤3mΩ
    Dielectric strength

    4000V DC

    Insulation resistance

    >1.0GΩ(initial)


    -Mechanical parameters


    Service life>5000 times
    Cable retention≥220N
    Power line6mm-15mm
    Wire stripping length7-8mm
    Type of terminalsScrew type terminals

    -Material and environmental parameters


    ShellPolyamide(PA 6 30% GR)
    ConductorBrass
    Conductor surfaceAg
    Flame-retardant gradeUL94-V0
    Temperature range-30°C~80°C
    Strain reliefPolyacetal(POM)
    InsertPBTP 20%GR

    Product Profile



    Packing

    FAQ

    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.
    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.
    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
