    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 3 pin male socket
    Price : $1.93/pieces 2-99 pieces
    • Product Details
    • Company Profile

    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65


    Outdoor Dustproof Ip65 Waterproof D Type Male Socket 3 Pin XLR Audio Connector

    Products Description
    Waterproof XLR connector-3 pin male socket
    A waterproof XLR connector with a 3-pin configuration is commonly used for audio connections in outdoor or wet environments. This type of connector is designed to provide reliable and secure electrical connections while offering protection against moisture, water, and other liquids.
    The waterproof XLR connector is widely utilized in various applications, such as outdoor concerts, live performances, sporting events, broadcast productions, and any situation where audio equipment needs to withstand exposure to rain, humidity, or water splashes.
    Its primary purpose is to ensure a robust and uninterrupted audio signal transmission in challenging conditions. The waterproof design prevents water ingress, maintaining the integrity of the connection and safeguarding against potential damage or signal loss.
    By utilizing a waterproof XLR connector, audio professionals can confidently operate their equipment outdoors or in wet environments, knowing that the connector's sealing and shielding properties provide reliable protection against moisture-related issues.
    In summary, the waterproof XLR connector with a 3-pin configuration finds its application in outdoor and wet environments, enabling secure audio connections and dependable signal transmission while offering protection against moisture and water-related challenges.
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    Model:SW3XMZ-F-B (Black)
    SW3XMZ-F(Silver)
    Sealed rubber jacket is waterproof and dust-proof
    Standard D mounting dimensions, fully matched to existing installation
    Zinc alloy shell, contact point gold-plated
    Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
    Waterproof IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    1. Product parameters
    Connection Type
    XLR
    Gender
    Male
    2. Electrical parameters
    Capacitance between contacts
    ≤4pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    16A
    Rated voltage
    <50V
    3. Mechanical parameters
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4. Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃

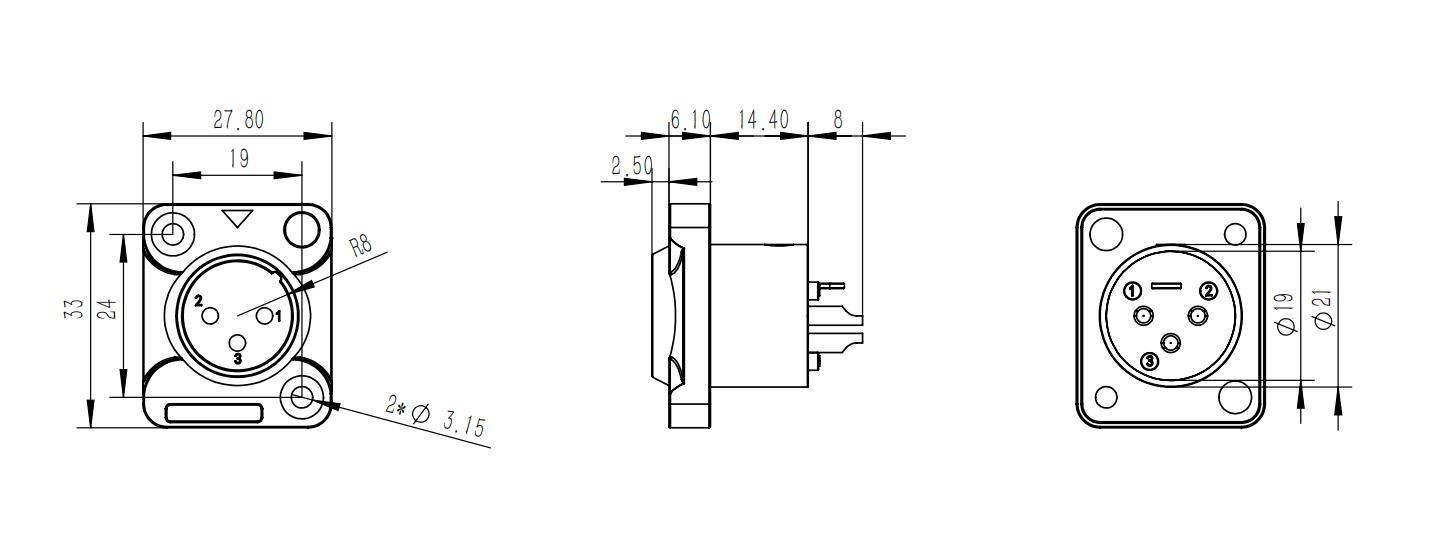

    5.Size reference (unit /mm)
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65

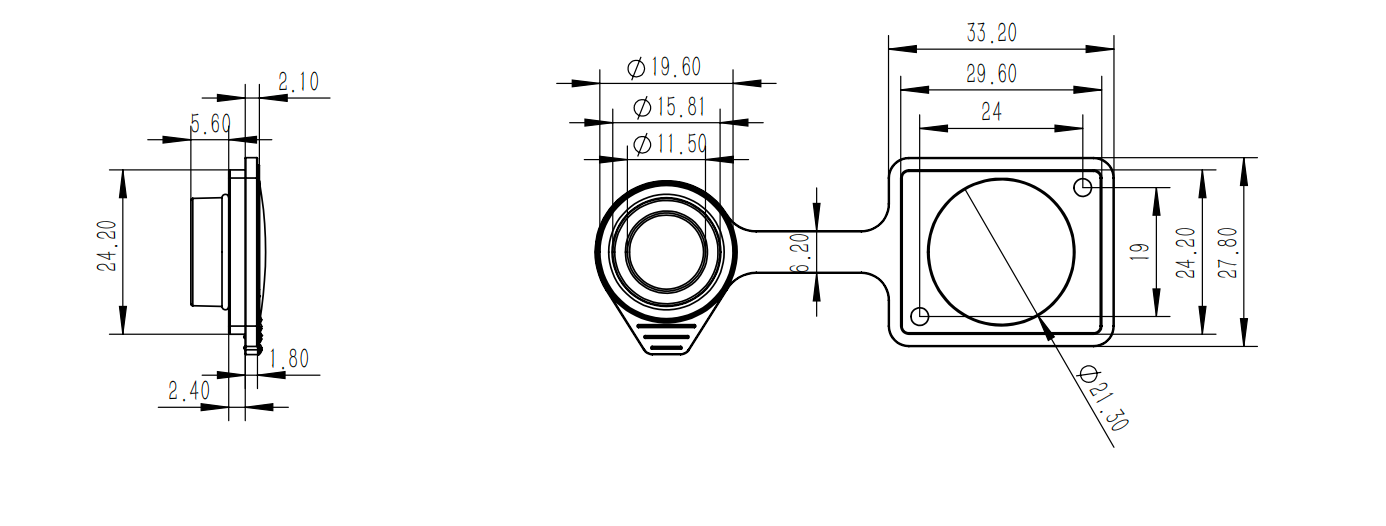

    Waterproof rubber(Unit:mm)
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    6. Assembly reference
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
    Application area
    XLR Audio Power Waterproof Socket Connector 3 Pin Microphone IP65
