    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin male plug
    Price : $1.84/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector


    Zinc Alloy Shell Waterproof Ip65 Outdoor Female Male Plug Socket 5 Pin Xlr Connector

    Products Description

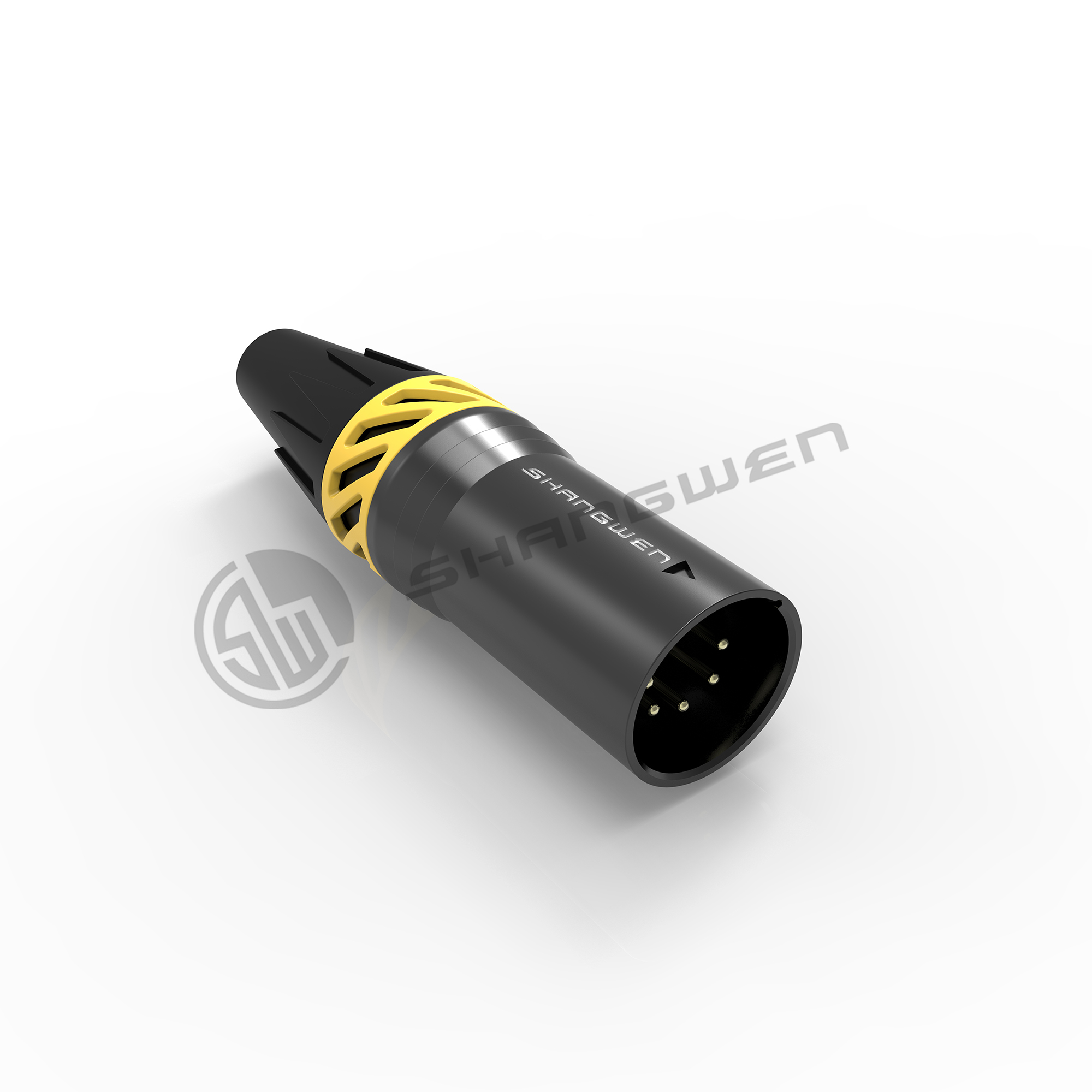

    Waterproof XLR connector-5 pin male plug

    The 5-pin XLR connector is a versatile audio connector widely used in professional audio applications. It features five pins arranged in a circular configuration, allowing for the transmission of balanced audio signals and control data.


    This connector is commonly found in audio equipment such as mixing consoles, microphones, amplifiers, and audio interfaces. It provides a reliable and secure connection, ensuring high-quality audio transmission with excellent noise rejection and interference resistance.


    The 5-pin XLR connector is designed to handle both audio signals and control signals simultaneously. It is commonly used in applications where audio devices need to communicate with each other or exchange control information. The additional pins offer flexibility for transmitting data such as phantom power, DMX lighting control signals, intercom signals, or other digital control protocols.


    With its sturdy construction and locking mechanism, the 5-pin XLR connector ensures a secure connection that withstands the rigors of professional use. It is known for its durability, longevity, and ability to maintain consistent audio performance even in demanding environments.


    In summary, the 5-pin XLR connector is a reliable and versatile audio connector widely used in professional audio applications. Its balanced audio signal transmission, compatibility with control data, and robust construction make it an essential component in the audio industry.


    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector

    Model:SW5XMT-F-B (Black)

    SW5XMT-F(Silver)


    ☑One hand can operation, push the button to pull it out
    ☑The contact pin is gold-plated
    ☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
    ☑Waterproof IP65
    ☑Wire diameter range: 5-8mm

    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    5-8mm
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Wire size
    Max. 1.0 mm²
    Wire size
    Max. 18 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    Polyurethan
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃

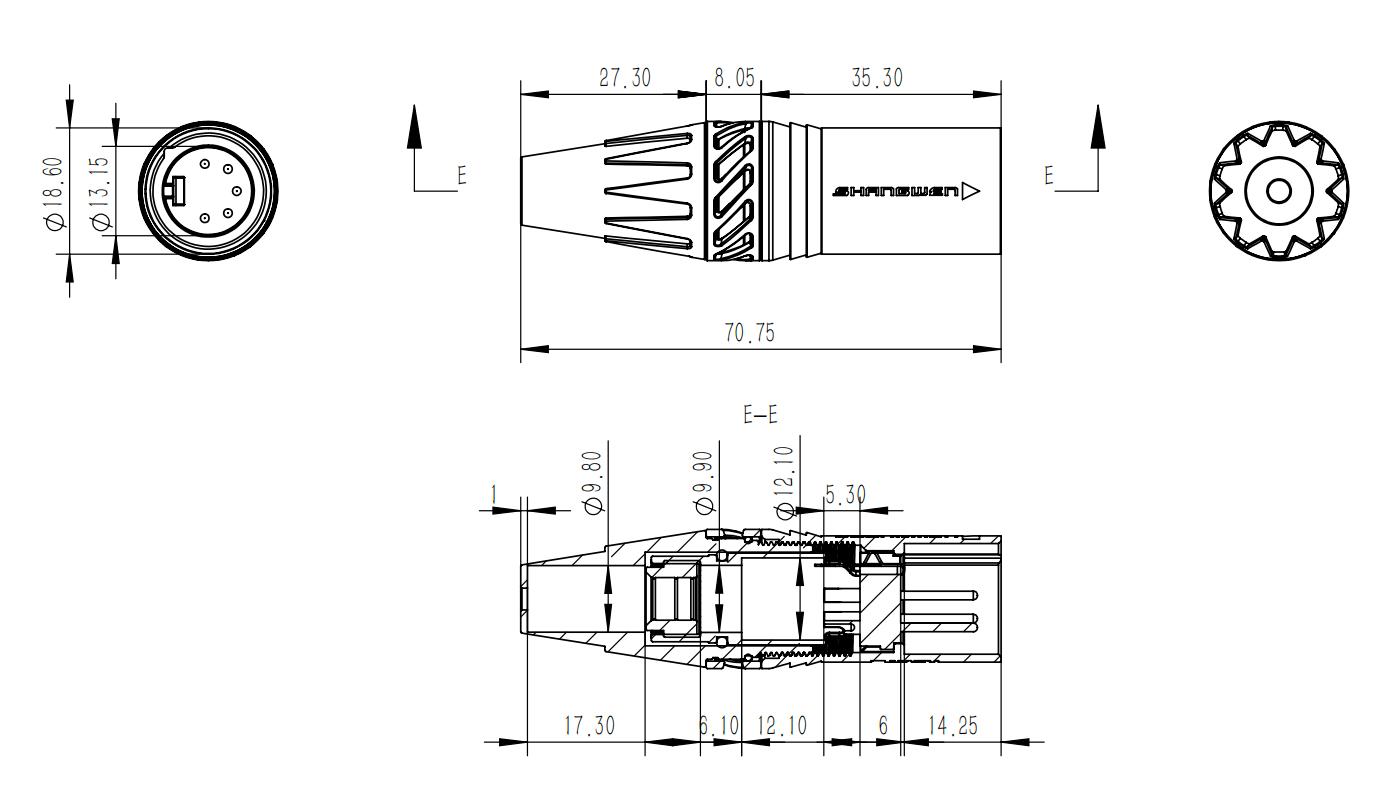

    5.Size reference (unit /mm)
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector

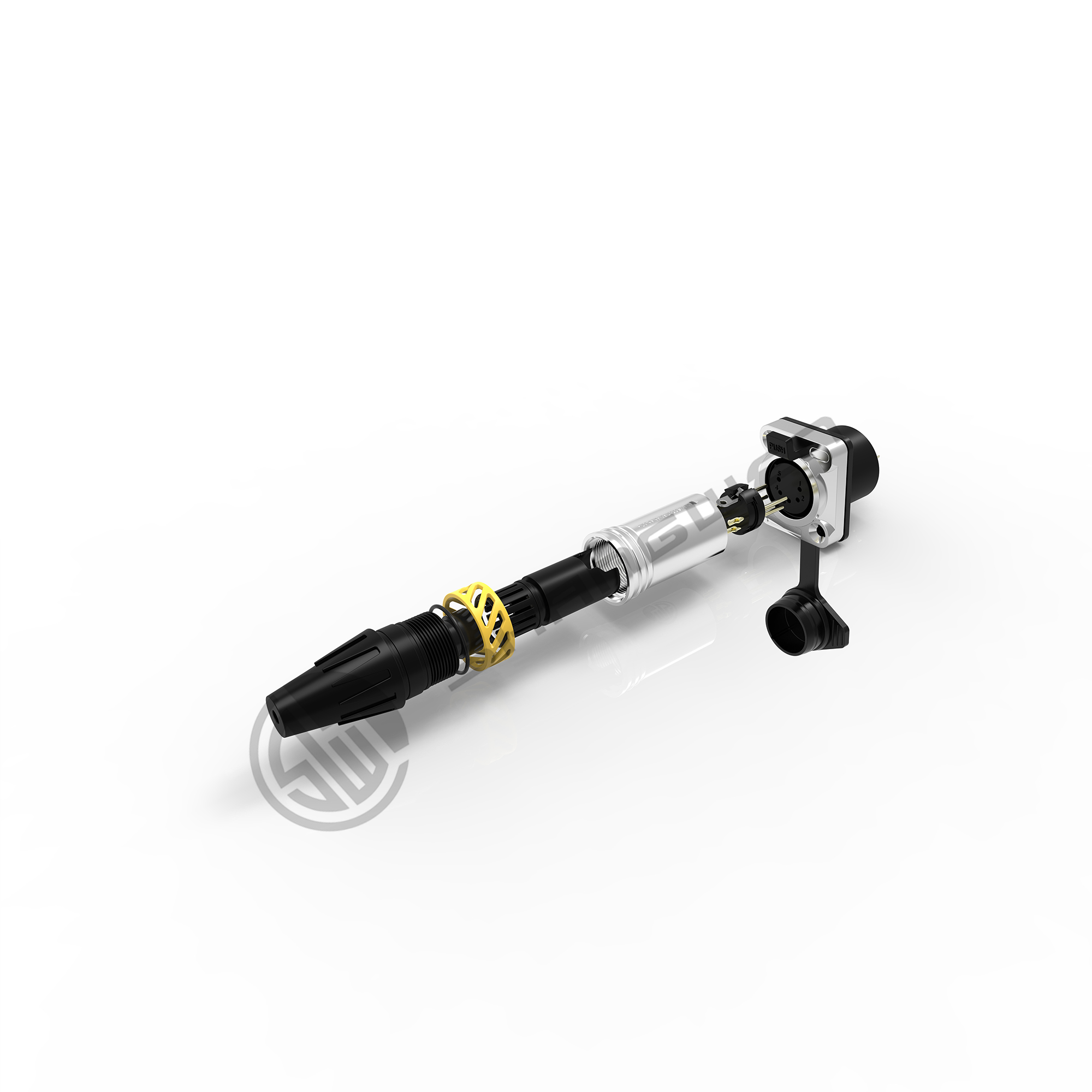

    6.Assembly reference
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Application area
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Company Information
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Patent & Certification
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Exhibition activities
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Packaging reference
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    Payment and logistics
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    FAQ
    Waterproof 5 Pin XLR Connector IP65 Male Female Socket Connector
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
