    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 4 pin male plug
    Price : $1.07/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell


    Wholesale Custom Indoor 3.5-8mm Wire Diameter Female Male Plug Socket Xlr 4 Pin Connector

    Products Description

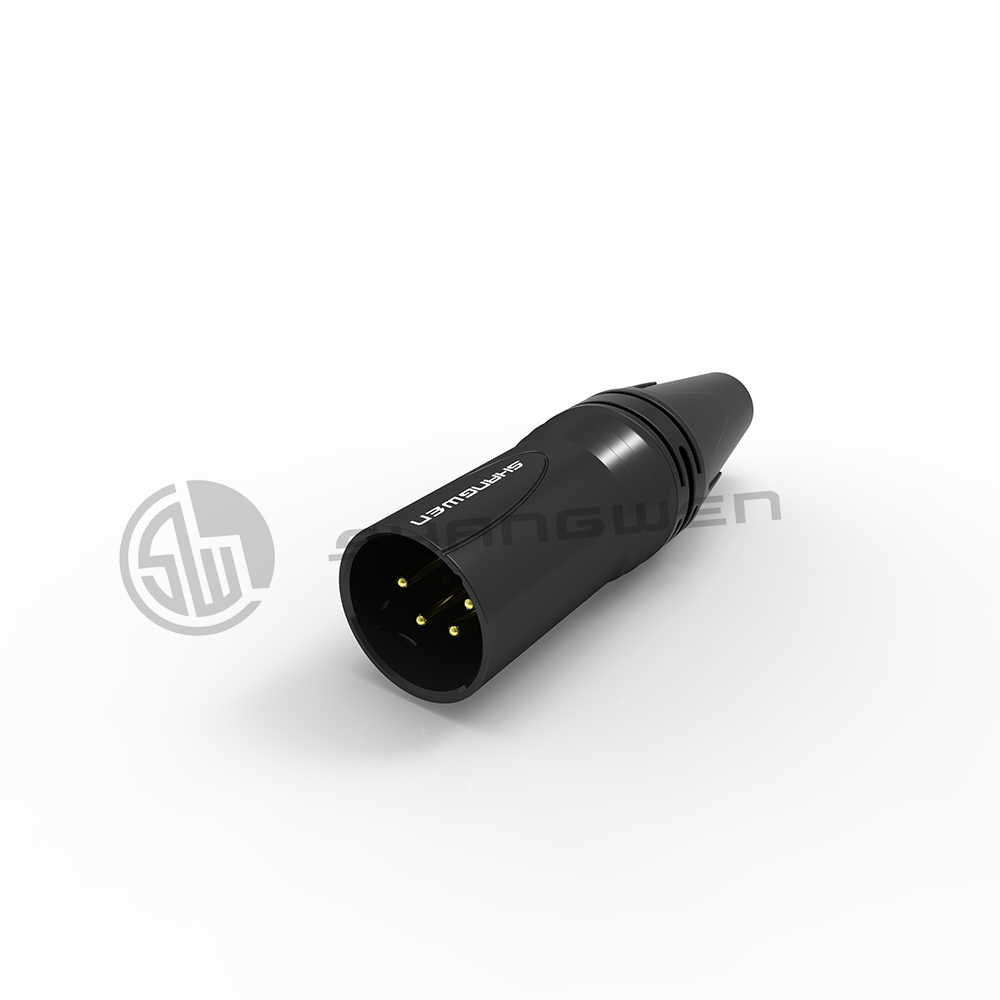

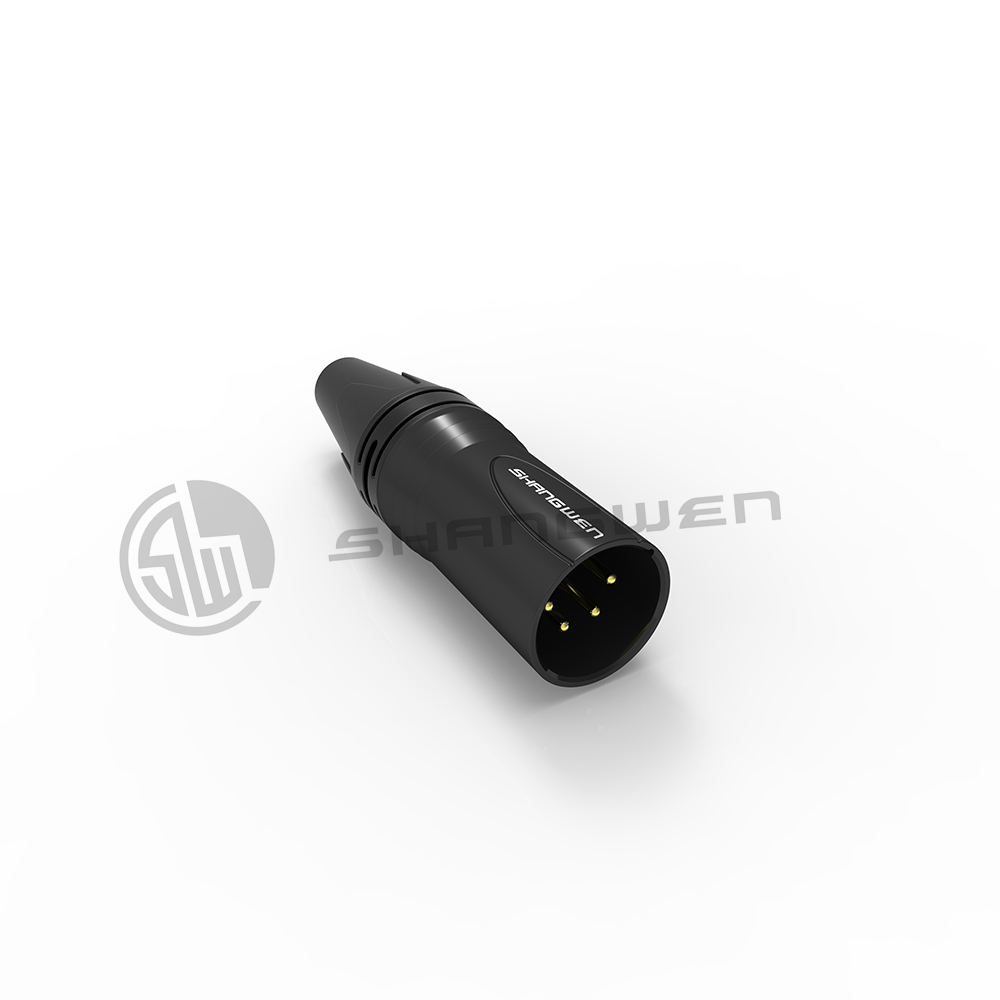

    XLR connector-4 pin male plug

    The 4-pin male XLR connector plug is a commonly used audio connector known for its robustness and versatility. Here are its key features:


    Durable Construction: The connector is built with high-quality materials, typically featuring a sturdy metal shell that provides excellent durability and resistance to wear and tear.


    Balanced Audio Transmission: The 4-pin XLR connector supports balanced audio signals, ensuring efficient and reliable transmission with reduced noise and interference.


    Secure Connection: It features a locking mechanism that securely fastens the connector to the corresponding female socket, preventing accidental disconnections during use.


    Versatile Application: This XLR connector is widely utilized in professional audio and sound reinforcement systems, including microphones, mixers, amplifiers, and audio interfaces.


    Pin Configuration: The 4-pin male XLR connector has four pins arranged in a circular pattern within the connector body. These pins allow for the transmission of balanced audio signals, typically including two signal pins, a ground pin, and an additional pin that can be used for various purposes such as power supply or control signals.


    Compatibility: The 4-pin male XLR connector is designed to be compatible with corresponding 4-pin female XLR connectors, ensuring seamless integration and compatibility within audio systems.


    Reliable Signal Transfer: The connector's design and construction minimize signal loss and interference, enabling high-quality audio transmission even over long cable runs.

    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Model:SW4XMT-B (Black)
    One hand can operation, push the button to pull it out
    The contact pin is gold-plated,the shell plating black
    Zinc alloy shell to ensure that it can withstand gravity in any field of use
    Protection class IP40
    Wire diameter range: 3.5-8mm
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    4 pin male socket
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    4 pin male socket
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell

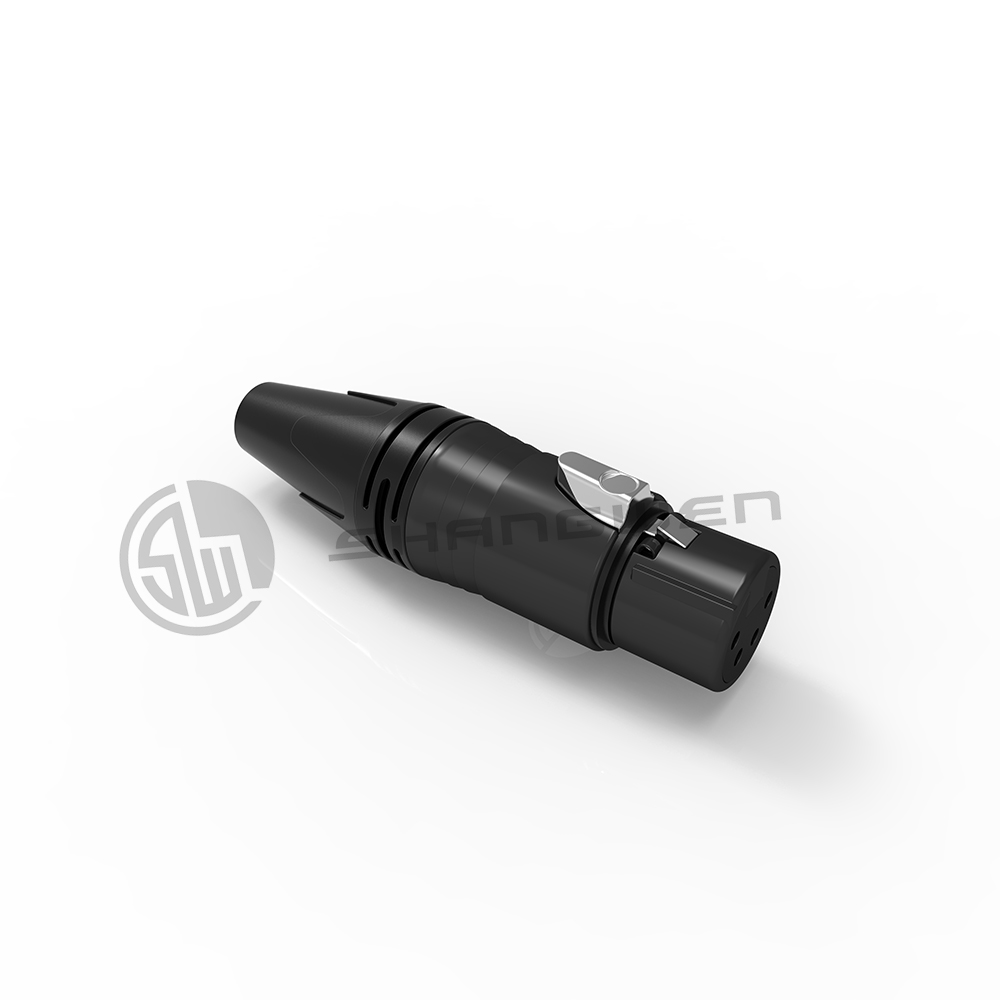

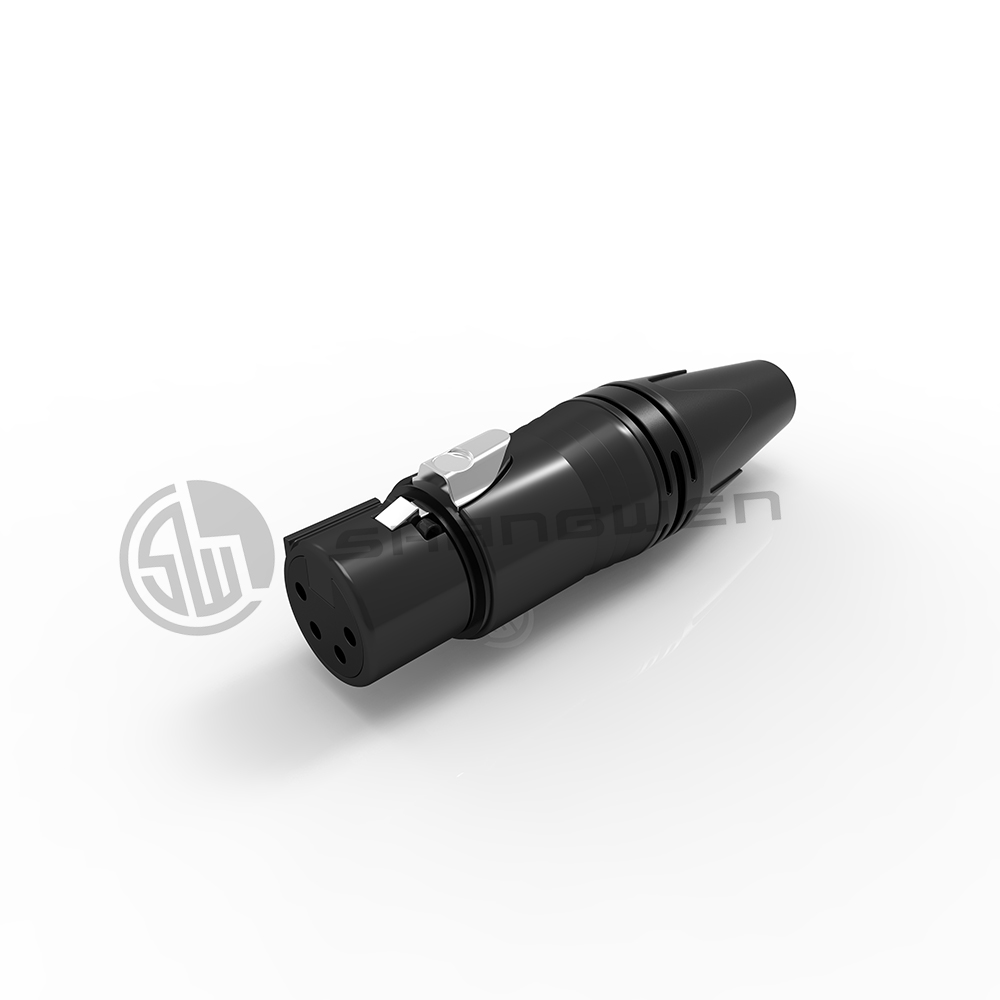

    4 pin female plug
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    4 pin female plug
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    4 pin female socket
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    4 pin female socket
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    3.5-8mm
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Wire size
    Max. 1.5 mm²
    Wire size
    Max. 16 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    TPU
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃
    5.Size reference (unit /mm)
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    6.Assembly reference
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Application area
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Company Information
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Patent & Certification
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Exhibition activities
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Packaging reference
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    Payment and logistics
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    FAQ
    Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
