    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin male plug
    Price : $1.14/pieces 2-99 pieces
    • Product Details
    • Company Profile

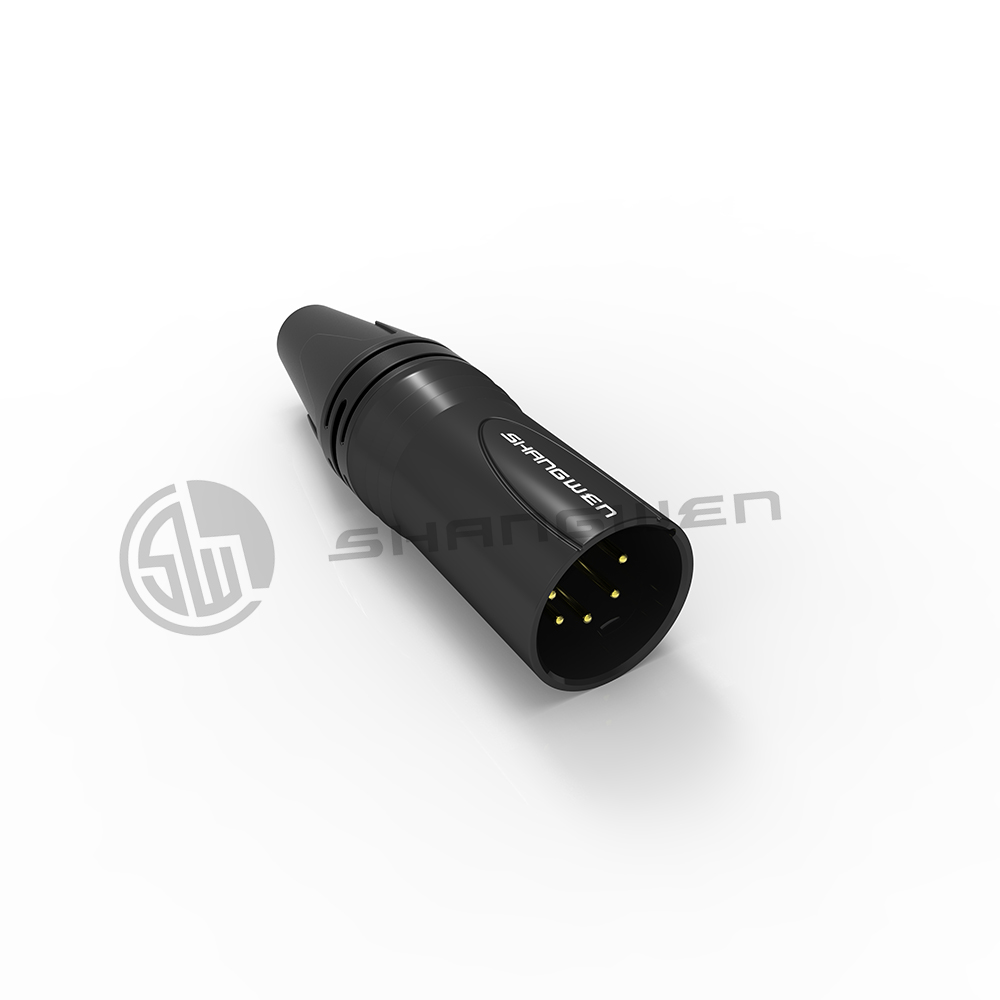

    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug


    Shenzhen Wholesale Indoor Shell Plating Black Male Plug 5 Pins Xlr Audio Connector

    Products Description
    XLR connector-5 pin male plug

    The waterproof 5-pin male XLR connector plug is a specialized audio connector designed to provide reliable and secure connections in wet or outdoor environments. Here are its key features:


    Balanced Audio Transmission: The 5-pin XLR connector supports balanced audio signals, delivering high-quality audio transmission with improved noise rejection and interference cancellation.


    Versatile Application: This waterproof XLR connector is commonly used in outdoor audio setups, live performances, stage productions, and other environments where moisture or water exposure is a concern.


    Pin Configuration: The 5-pin male XLR connector features five pins arranged in a circular pattern within the connector body, allowing for the transmission of balanced audio signals and additional control or data signals.

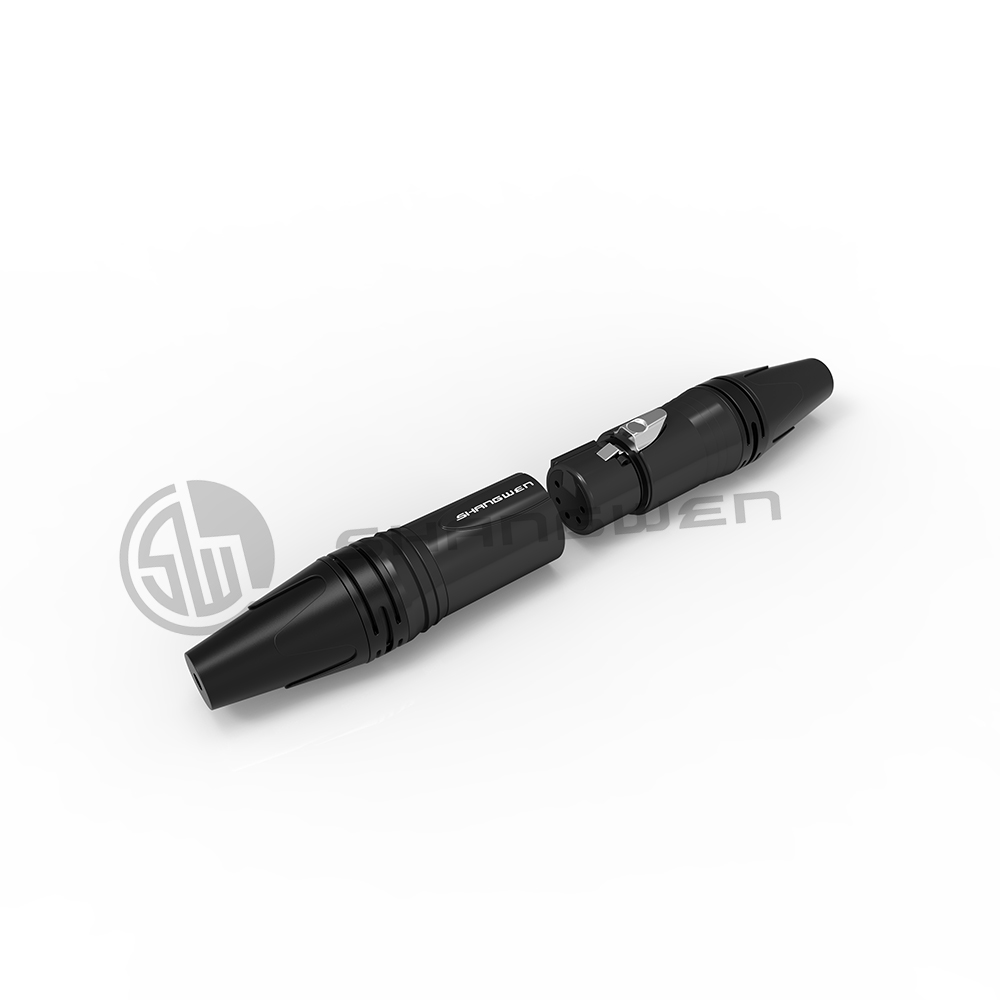

    Compatibility: It is designed to be compatible with corresponding 5-pin female XLR connectors, ensuring seamless integration and compatibility within audio systems.


    Reliable Signal Transfer: The connector's waterproof design, along with its balanced audio transmission capability, ensures reliable signal transfer even in challenging outdoor conditions, minimizing signal loss and maintaining audio quality.


    In summary, the waterproof 5-pin male XLR connector plug offers a durable, secure, and waterproof solution for audio connections in wet or outdoor environments. Its waterproof design, robust construction, secure locking mechanism, and balanced audio transmission make it an ideal choice for reliable audio connectivity under challenging conditions.

    Model:SW5XMT-B (Black)


    ☑One hand can operation, push the button to pull it out

    ☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
    ☑Protection class IP40
    ☑The contact pin is gold-plated,the shell plating black
    ☑Wire diameter range: 3.5-8mm

    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug

    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    3.5-8mm
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Wire size
    Max. 1.0 mm²
    Wire size
    Max. 18 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    TPU
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃
    5.Size reference (unit /mm)
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    6.Assembly reference
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Application area
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Company Information
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Patent & Certification
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Exhibition activities
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Packaging reference
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    Payment and logistics
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    FAQ
    Indoor XLR Connector Black Shell Plating 5 Pin Audio Connector Male Plug
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
