    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin male plug
    Price : $1.51/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof


    Wholesale Outdoor Female And Male Plug Socket Waterproof Mini 5 Pin Xlr Connector

    Products Description

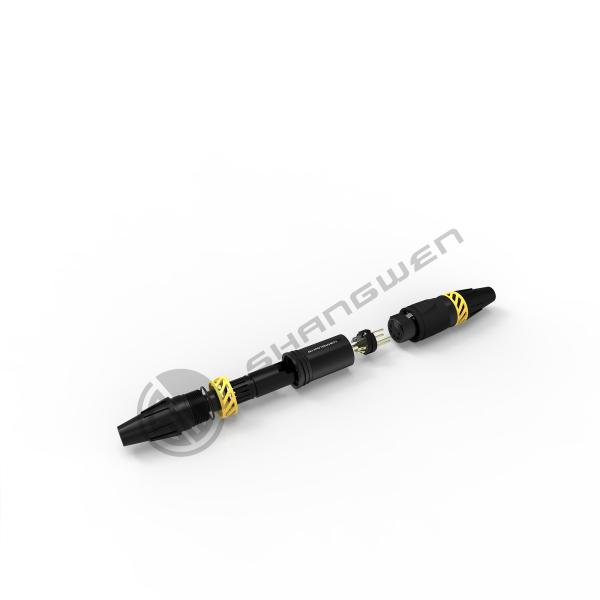

    Waterproof XLR connector-5 pin male plug

    The waterproof 5-pin male XLR connector plug is a specialized audio connector designed to provide reliable and secure connections in wet or outdoor environments. Here are its key features:


    Waterproof Design: This connector is specifically engineered with a waterproof housing, seals, and gaskets to prevent water, moisture, and other liquids from entering the connector. It ensures the integrity of the connection and protects the audio signal transmission.


    Robust Construction: The connector is constructed with durable materials, often featuring a rugged metal shell or a high-grade plastic housing, providing excellent resistance to impacts, corrosion, and harsh weather conditions.


    Secure Locking Mechanism: It incorporates a reliable locking mechanism that securely fastens the connector to the corresponding female socket, ensuring a tight and stable connection that withstands vibrations and accidental disconnections.


    Balanced Audio Transmission: The 5-pin XLR connector supports balanced audio signals, delivering high-quality audio transmission with improved noise rejection and interference cancellation.


    Versatile Application: This waterproof XLR connector is commonly used in outdoor audio setups, live performances, stage productions, and other environments where moisture or water exposure is a concern.

    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Model:SW5XMT-F-B (Black)
    SW5XMT-F(Silver)
    One hand can operation, push the button to pull it out
    The contact pin is gold-plated
    Zinc alloy shell to ensure that it can withstand gravity in any field of use
    Waterproof IP65
    Wire diameter range: 5-8mm
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin male plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin male plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin male socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin male socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin female plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin female plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin female socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    3 pin female socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin male plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin male plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin male socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin male socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin female plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin female plug
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin female socket
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    5 pin female socket
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤4pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    16A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    5-8mm
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Wire size
    Max. 2.5 mm²
    Wire size
    Max. 14 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    Polyurethan
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃
    5.Size reference (unit /mm)
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    6.Assembly reference
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Application area
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Company Information
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Patent & Certification
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Exhibition activities
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Packaging reference
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    Payment and logistics
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    FAQ
    Mini XLR 5 Pin Connector Outdoor Male And Female Plug Connector Waterproof
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
