    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 4 pin female socket
    Price : $1.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40


    Indoor New Lightweight Size Zinc Alloy Shell 4pin Female Socket Audio Xlr 4 Pin Connector

    Products Description
    XLR connector-4 pin female socket

    4-pin female XLR connector socket finds utility in intercom systems, headsets, microphones, portable audio devices, remote control applications, power applications, and various custom audio setups. Its flexibility and compatibility make it a valuable connector in professional audio environments, facilitating clear communication and reliable audio signal transmission.



    Remote Control and Power Applications: In some cases, the 4-pin XLR female socket is used for remote control and power applications. It can carry control signals or supply power to compatible devices, making it suitable for certain lighting systems, motorized equipment, and other audio-related devices.


    Custom Applications: The versatility of the 4-pin XLR female socket makes it suitable for custom applications where specific audio connectivity or signal requirements are needed. It can be adapted and utilized based on the specific needs of the audio system or equipment.

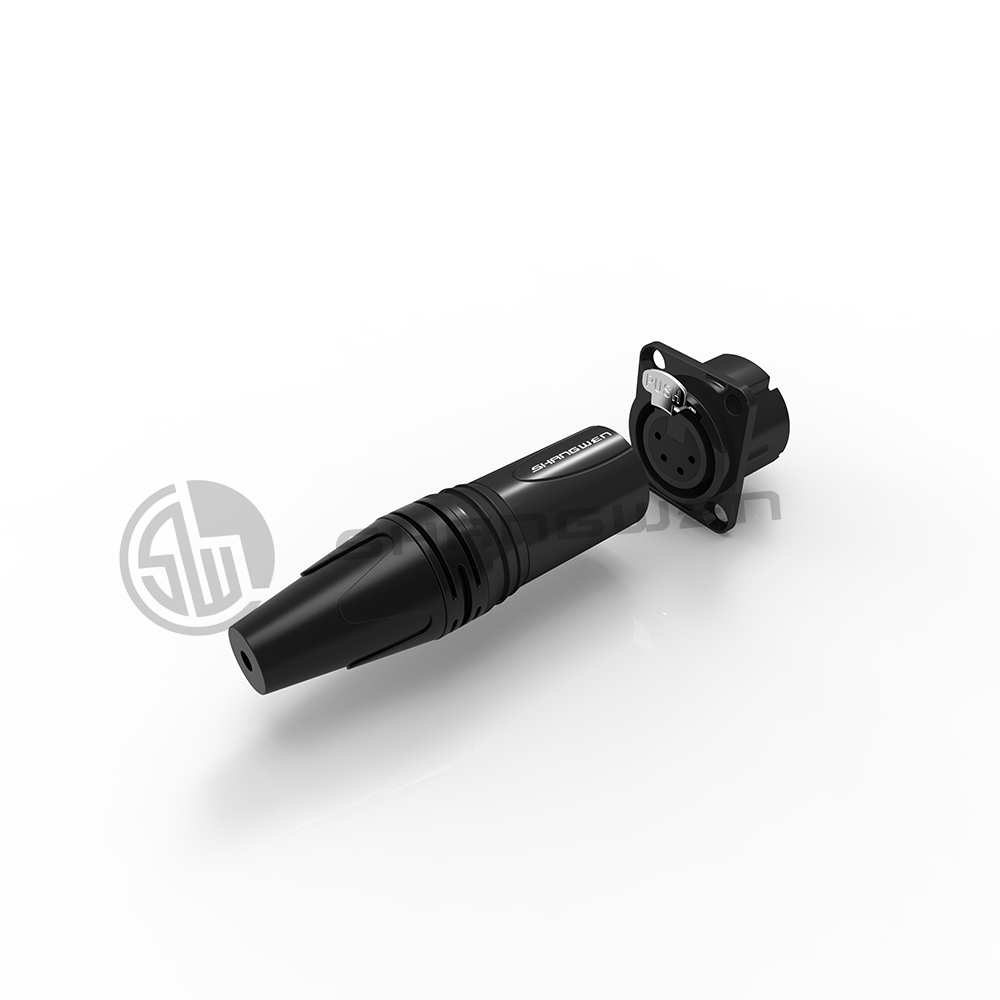

    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Model:SW4XFZ-B (Black)
    Standard D mounting dimensions, fully matched to existing installation
    Light size, can be installed front and back
    Zinc alloy shell, contact point gold-plated
    Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
    Protection class IP40
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    1.Product parameters
    Connection Type
    XLR
    Gender
    Female
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kV DC
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4.Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr black
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃

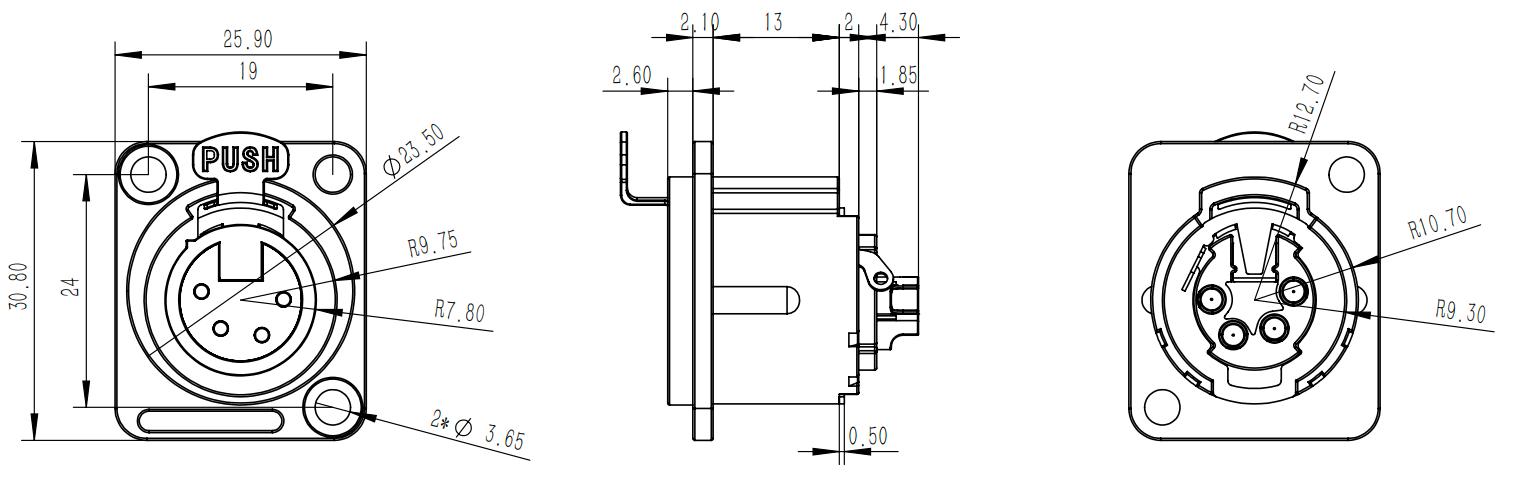

    5.Size reference (unit /mm)
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    6.Assembly reference
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Application area
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Company Information
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Patent & Certification
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Exhibition activities
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Packaging reference
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    Payment and logistics
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    FAQ
    XLR Audio Power Female Socket Connector 4 Pin Microphone IP40
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
