    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin male socket
    Price : $1.28/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical


    Wholesale Price Indoor Front Back Installed Male Socket 5 Pins XLR Audio Connector


    Model:SW5XMZ-B (Black)

    ☑Standard D mounting dimensions, fully matched to existing installation

    ☑Light size, can be installed front and back

    ☑Zinc alloy shell, contact point gold-plated

    ☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry

    ☑Protection class IP40

    Products Description

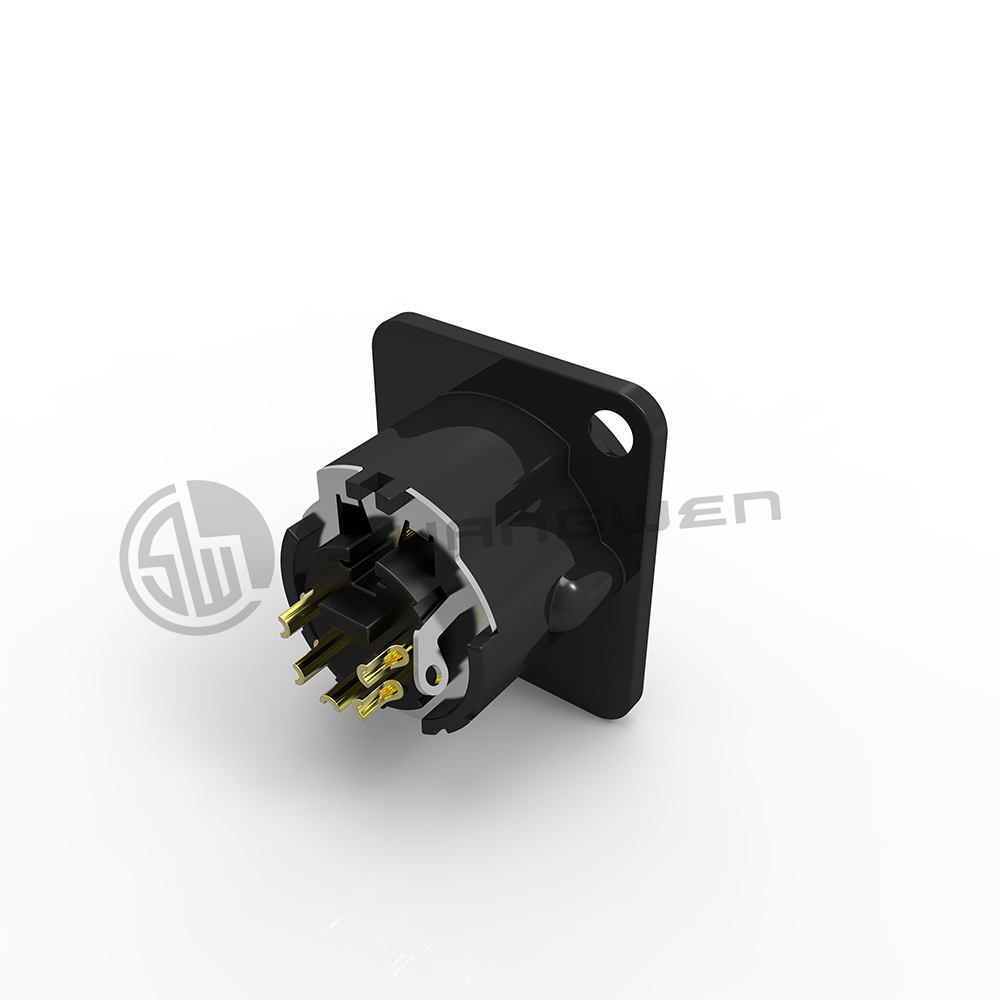

    XLR connector-5 pin male socket

    The 5-pin male XLR connector socket is a versatile audio connector designed for professional audio applications. Here is a product description highlighting its key features:


    High-Quality Construction: The connector socket is crafted with precision and durability in mind, featuring a robust metal or high-grade plastic housing that ensures long-lasting performance and reliability.


    Balanced Audio Transmission: The 5-pin XLR connector socket supports balanced audio signals, allowing for the transmission of high-quality audio with reduced noise and interference.

    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
    1. Product parameters
    Connection Type
    XLR
    Gender
    Male
    2. Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kV DC
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3. Mechanical parameters
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4. Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr black
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃
    5. Size reference (unit /mm)
    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
    6. Assembly reference
    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
    Industrial XLR Male Connector Socket Audio 5 Pin Connector Electrical
