    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 5 pin female socket
    Price : $2.22/pieces 2-99 pieces
    • Product Details
    • Company Profile

    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65


    High Quality Sealed Rubber Jacket Xlr Waterproof 5 Pin Female Socket Connector For Outdoor Audio

    Products Description
    Waterproof XLR connector-5 pin female socket

    The 5-pin female XLR connector socket is a versatile audio connector designed for professional audio applications. Here are its key features:


    High-Quality Construction: The connector socket is constructed with precision and durability in mind, typically featuring a robust metal or high-grade plastic housing that ensures long-lasting performance and reliability.


    Balanced Audio Transmission: The 5-pin XLR connector socket supports balanced audio signals, allowing for the transmission of high-quality audio with reduced noise and interference.


    Secure Connection: It is designed with a reliable locking mechanism that ensures a secure and stable connection with the corresponding male plug, preventing accidental disconnections during use.


    Versatile Compatibility: This XLR connector socket is widely compatible with various audio equipment, including microphones, mixers, amplifiers, and audio interfaces, making it suitable for a range of professional audio setups.


    Pin Configuration: The 5-pin XLR connector socket features five pins arranged in a circular pattern within the connector, allowing for the transmission of balanced audio signals and additional control or data signals.


    Easy Integration: The socket is designed to be easily integrated into existing audio systems, with standard mounting dimensions that facilitate seamless installation and connection.

    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Model:SW5XFZ-F-B (Black)
    SW5XFZ-F(Silver)
    Sealed rubber jacket is waterproof and dust-proof
    Standard D mounting dimensions, fully matched to existing installation
    Zinc alloy shell, contact point gold-plated
    Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
    Waterproof IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    1.Product parameters
    Connection Type
    XLR
    Gender
    Female
    2.Electrical parameters
    Capacitance between contacts
    ≤7pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kV DC
    Insulation resistance
    > 10GΩ (initial)
    Rated current per contact
    7.5A
    Rated voltage
    <50V
    3.Mechanical parameters
    Insertion force
    ≤ 20N
    Withdrawal force
    ≤ 20N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4.Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP65
    Temperature range
    -30℃to +80℃
    5.Size reference (unit /mm)
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65

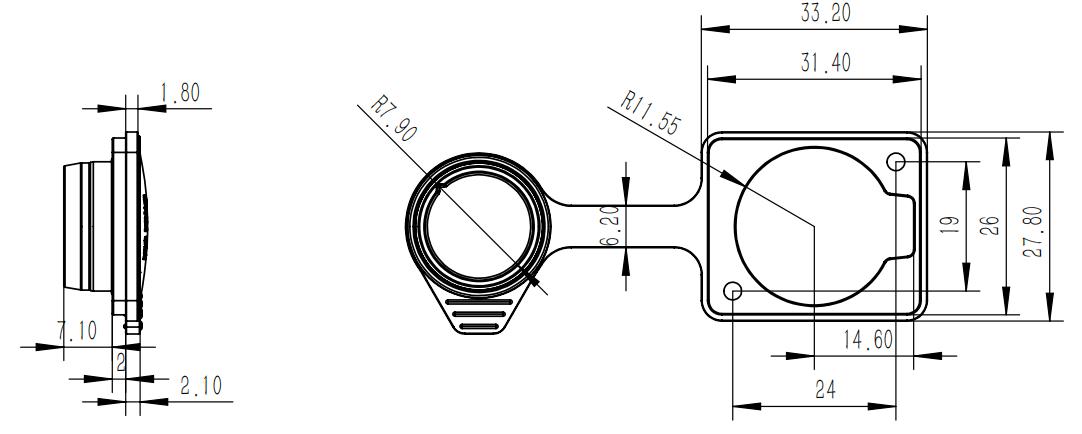

    Waterproof rubber(Unit:mm)
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    6.Assembly reference
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Application area
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Company Information
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Patent & Certification
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Exhibition activities
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Packaging reference
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    Payment and logistics
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    FAQ
    XLR Audio Power Waterproof Socket Connector 5 Pin Microphone IP65
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
