    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 3 pin male socket
    Price : $0.98/pieces 2-99 pieces
    • Product Details
    • Company Profile

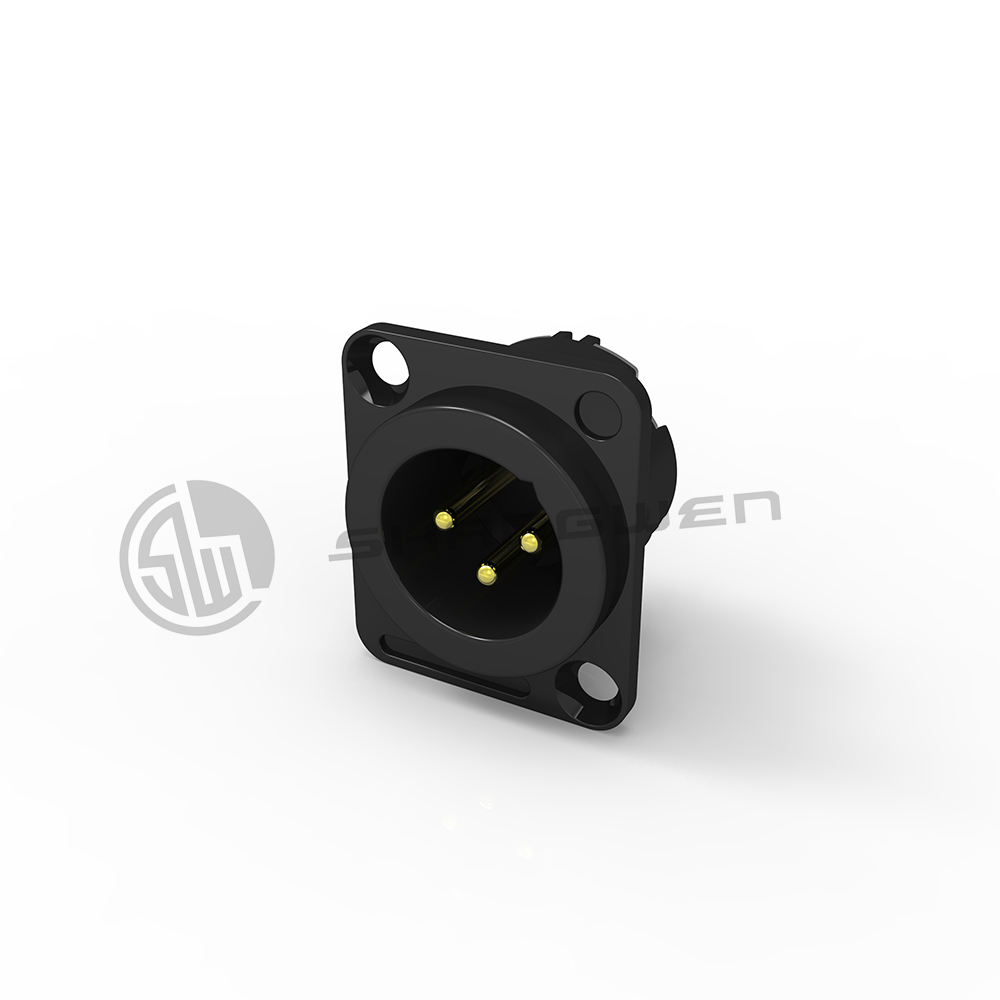

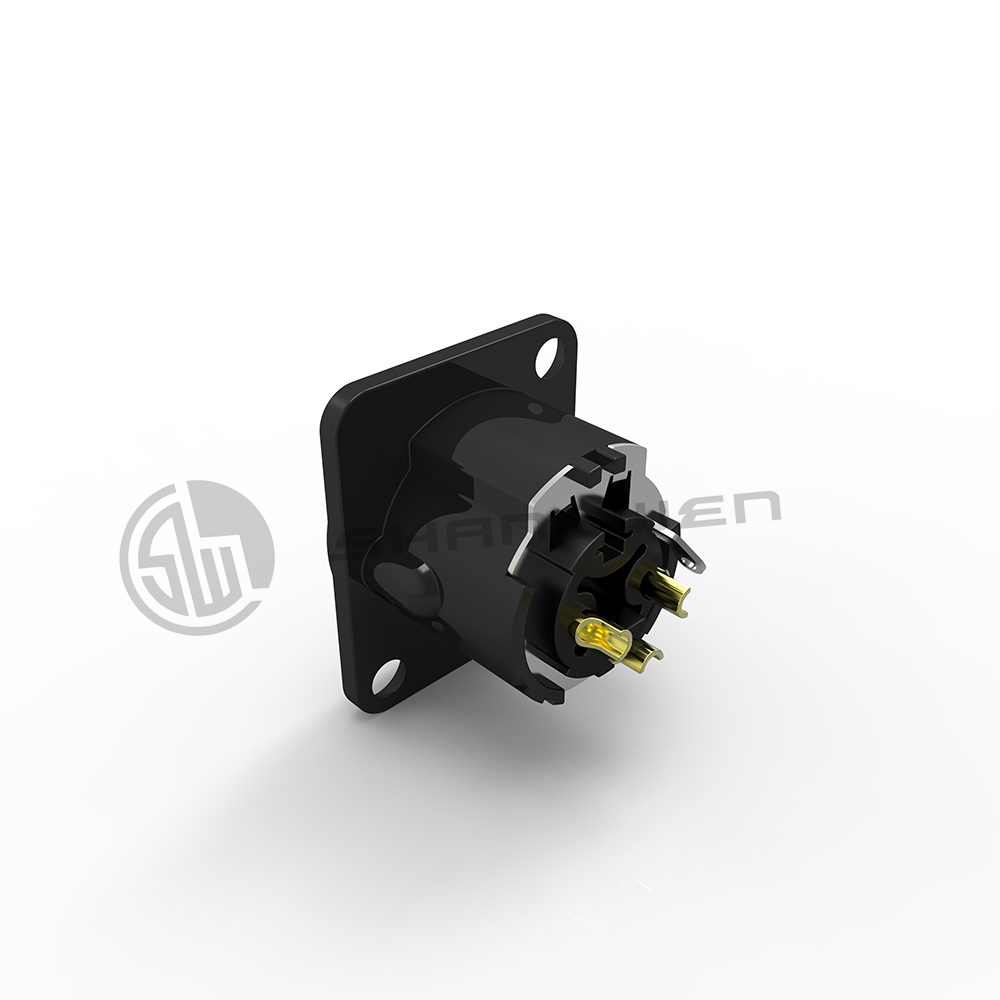

    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket


    D Type Shape Zinc Alloy Shell Indoor Male Socket Audio Mini Xlr Connector 3 Pin

    Products Description
    XLR connector-3 pin male socket

    Model:SW3XMZ-B (Black)

    ☑Protection class IP40

    ☑Light size, can be installed front and back

    ☑Zinc alloy shell, contact point gold-plated

    ☑Standard D mounting dimensions, fully matched to existing installation

    ☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry


    Features of a 3-pin male XLR connector socket:


    - Pin Configuration

    - Durable Construction

    - Secure Connection

    - Balanced Audio Transmission

    - Standard Compatibility

    - Professional Usage

    - Easy Integration

    - Reliable Signal Transfer

    - Versatile Applications

    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
    1. Product parameters
    Connection Type
    XLR
    Gender
    Male
    2. Electrical parameters
    Capacitance between contacts
    ≤4pF
    Contact resistance
    ≤5mΩ
    Dielectric strength
    1.5kV DC
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    10A
    Rated voltage
    <50V
    3. Mechanical parameters
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Chassis shape
    D type
    4. Material and environmental parameters
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Solder ability
    Complies with IEC 68-2-20
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃
    5.Size reference (unit /mm)
    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
    6. Assembly reference
    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
    Audio XLR Mini Mini 3 Pin Connector Electrical D Shape Male Socket
