    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : 3 pin male plug
    Price : $0.85/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector


    Indoor Protection Class Ip40 High Quality Mini XLR Audio Connector 3 Pin Male Plug


    Model:SW3XMT-B (Black)
    ☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
    ☑Protection class IP40
    ☑Wire diameter range: 3.5-8mm
    ☑One hand can operation, push the button to pull it out
    ☑The contact pin is gold-plated,the shell plating black

    Products Description
    XLR connector-3 pin male plug

    The 3-pin male XLR connector plug is a durable audio connector known for its reliable performance. It features a secure locking mechanism for stable connections. It supports balanced audio transmission, reducing noise and interference. It is compatible with standard 3-pin female XLR connectors, making it versatile for various audio equipment. The plug is commonly used in professional audio applications, providing clear and accurate audio reproduction. Its standard dimensions allow for easy installation and integration into audio systems. Overall, the 3-pin male XLR connector plug offers durability, secure connections, balanced audio transmission, compatibility, and reliable performance.


    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    1.Product parameters
    Connection Type
    XLR
    Gender
    Male
    2.Electrical parameters
    Capacitance between contacts
    ≤4pF
    Contact resistance
    ≤3mΩ
    Dielectric strength
    1.5kVdc
    Insulation resistance
    > 1.5GΩ (initial)
    Rated current per contact
    10A
    Rated voltage
    <50V
    3.Mechanical parameters
    Sign Cable O.D.
    3.5-8mm
    Insertion force
    ≤ 40N
    Withdrawal force
    ≤ 40N
    Service life
    >1000 mating cycles
    Wire size
    Max. 2.5 mm²
    Wire size
    Max. 14 AWG
    Locking device
    Latch lock
    4.Material and environmental parameters
    Boot
    TPU
    Contacts
    Cu alloy
    Contact plating
    Au
    Insert
    Polyamide (PA 66 +30 % GF)
    Shell
    Zinc diecast (ZnAl4Cu1)
    Shell plating
    Cr Black
    Strain relief
    Polyacetal (POM)
    Flame-retardant grade
    UL 94 HB
    Protection class
    IP40
    Temperature range
    -20℃to +80℃
    5.Size reference (unit /mm)
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector

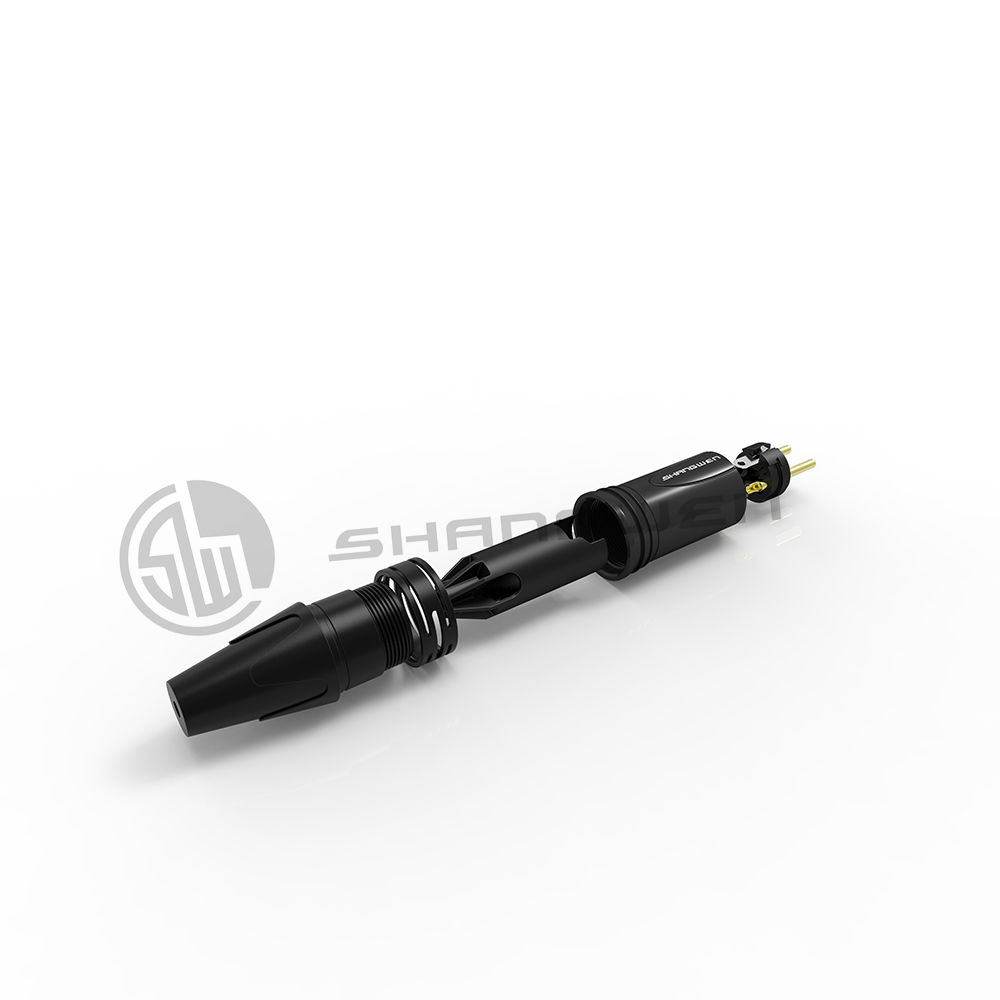

    6.Assembly reference
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Application area
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Company Information
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Patent & Certification
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Exhibition activities
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Packaging reference
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    Payment and logistics
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    FAQ
    Mini 3 Pin Audio Connector Lightweight XLR Male Plug Connector
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
