    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : Outdoor power connector
    Supply Ability : 10000000 Piece/Pieces per Month
    Price : $1.90 - $3.20/pieces
    • Product Details
    • Company Profile

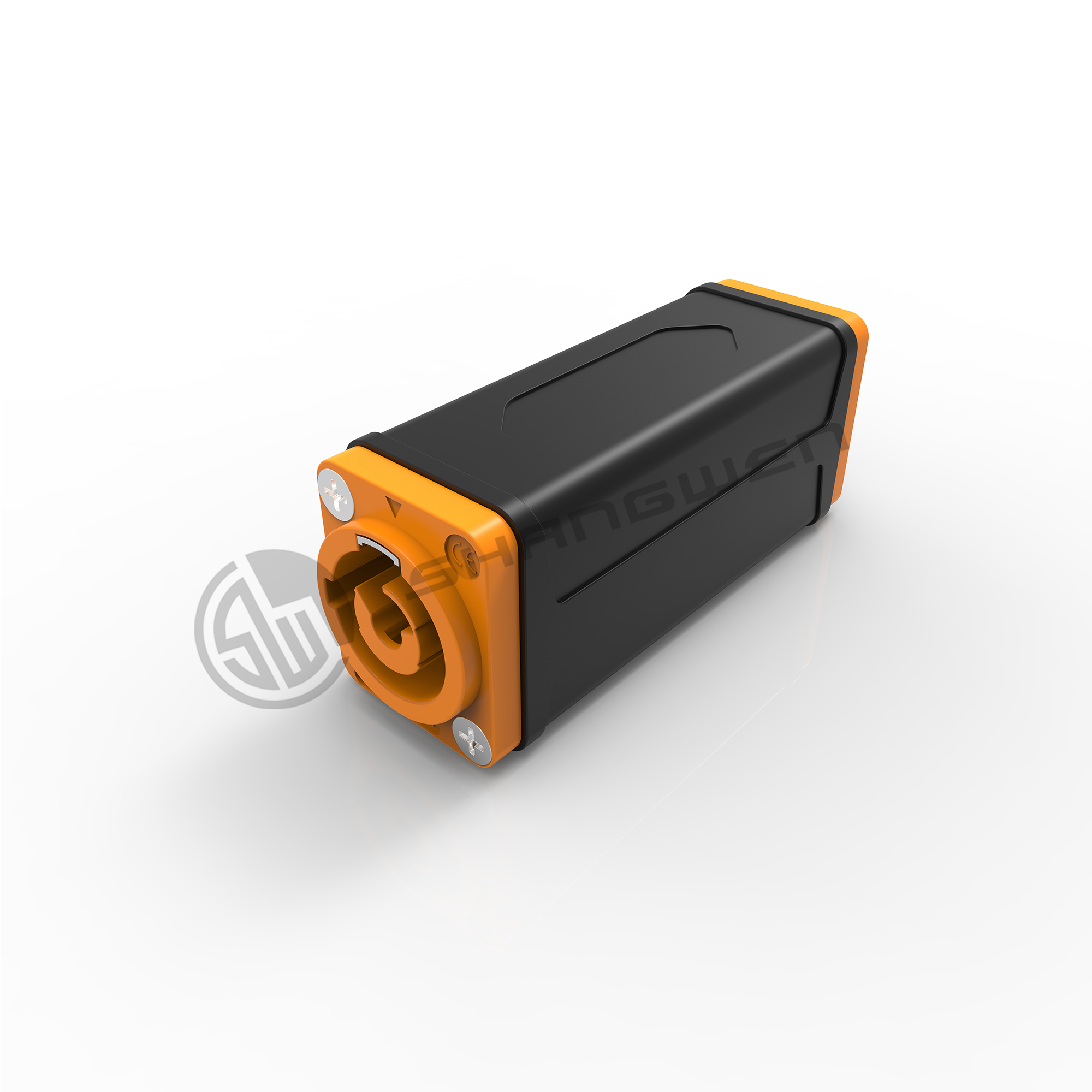

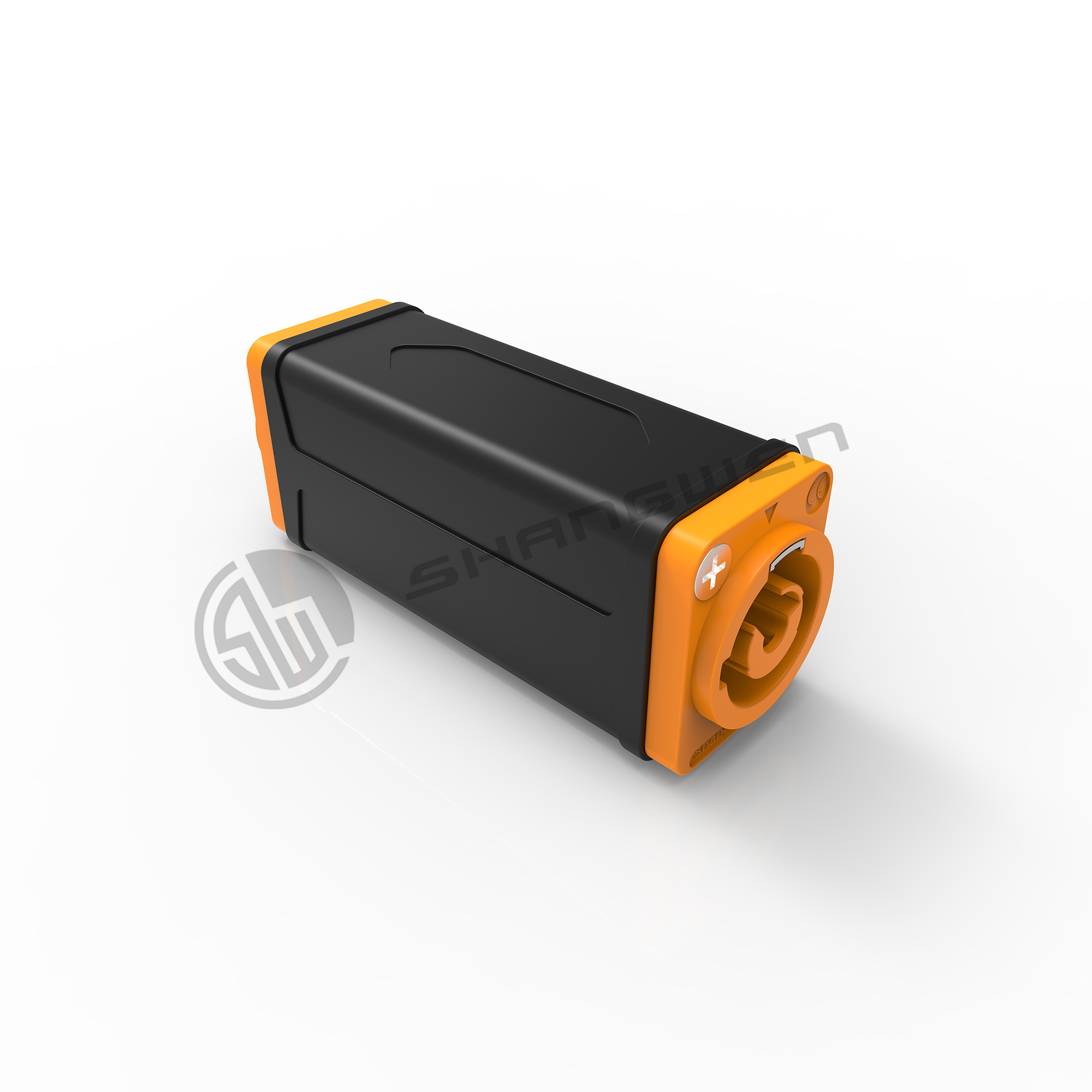

    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables


    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables


    Outdoor power connector
    Lockable 3 pole single phase equipment (AC) connector
    High current capacity, rated at 20 A / 250 V ac
    Colour coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
    Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) New latch design for easier handling and secure locking Coupler for linking cables (couples NAC3FCA to NAC3FCB)

    1. Product parameters
    Product
    NAC3MM-1
    Connection Type
    Adapter
    Gender
    Male
    2. Electrical parameters
    Contact resistance
    ≤ 3 mΩ
    Dielectric strength
    4 kVdc
    Insulation resistance
    > 0.1 GΩ (IEC 68-2-30)
    Rated current per contact
    20 A rms
    Rated voltage
    250 V ac
    3. Mechanical parameters
    Service life
    >1000 mating cycles
    Locking device
    Quick lock
    4. Material and environmental parameters
    Contact plating
    2 µm Ag
    Lock material
    Steel Ck67
    Shell
    Polyamide(PA 6.6 30 % GR)
    Contact
    Bronze (CuNi1Si0.2)
    Flame-retardant grade
    UL 94 V-0
    Protection class
    IP 20(After connecting)
    Safety requirements
    EN/IEC 61984
    Solderability
    Complies with IEC 68-2-20
    Temperature range
    -30℃to +80℃

    Products Description
    powerCON – Locking 3 Pole Power Connectors
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    5. Size reference (unit /mm)
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    6.Assembly reference
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Application area
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Company Information
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Patent & Certification
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Exhibition activities
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Packaging reference
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    Payment and logistics
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    FAQ
    Outdoor Powercon Connector Coupler Male Adapter Power Connector For Linking Cables
    1. What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    2. Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    3. Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.
    4. Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    5. What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6. Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
