Outdoor Button Female Male Plug Signal Rj45 Adaptor Connector For Cable Extensions

Products Description

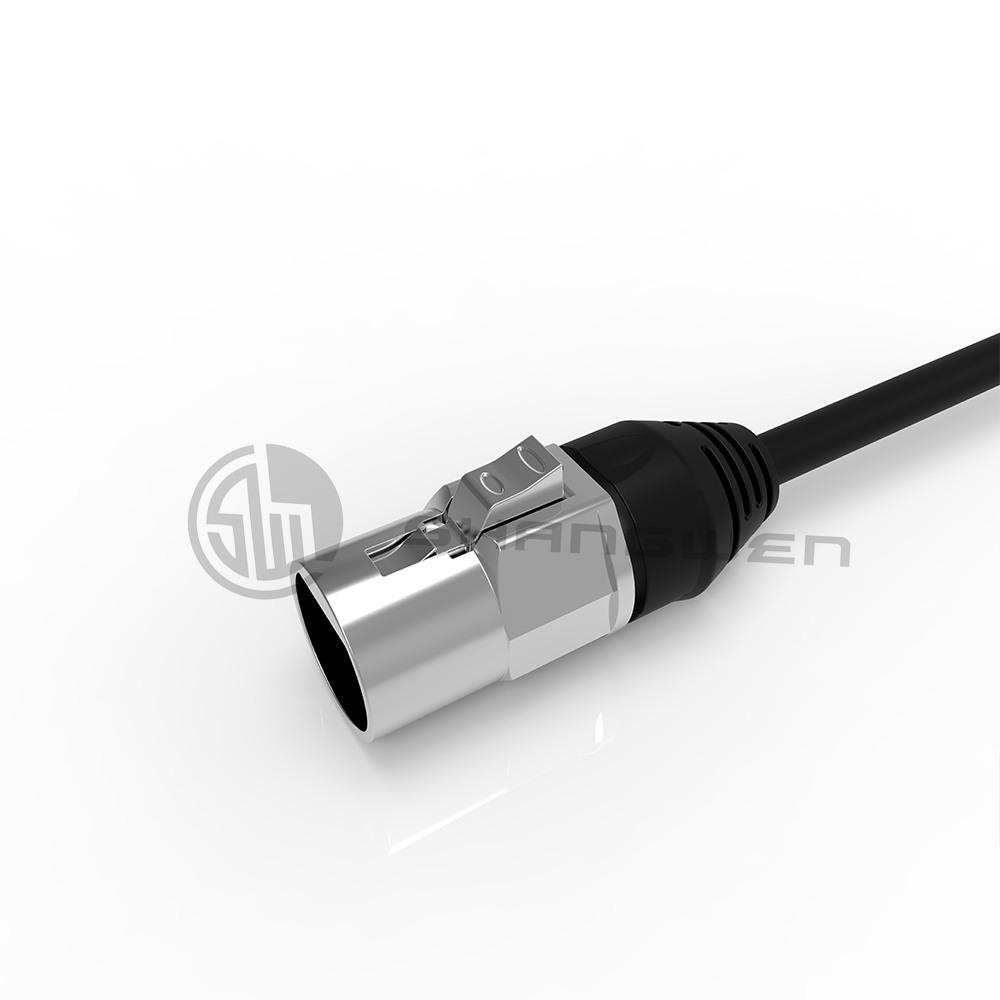

etherCON feedthrough coupler for cable to cable extensions

Outdoor button signal connector

☑ Approved latch lock system

☑ Accommodates NE8MC* or any standard RJ45 plug
☑ NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug

1. Product parameters

Connection Type	Coupler (adapter)
Gender	Female

2. Electrical parameters

Contact resistance	< 10 mΩ
Dielectric strength	1 kVdc
Frequency Range	1 - 100 MHz
Insulation resistance	> 0.5 GΩ
Rated current per contact	1,5 A
Rated voltage	< 50 V
Standards compliant	TIA/EIA 586B, IEC11801

3. Mechanical parameters

Insertion force	≤ 20 N
Pull out force	≤ 20 N
Service life	> 1000 mating cycles
Locking device	Latch lock

4. Material and environmental parameters

Contacts	Bronze (CuSn8)
Contact plating	0.2 µm Au over Ni plating
Inner core	PBTP 15 % GR
Shell	AlMgSi 0.5, black plated
Clamping sleeve	CuZn35Pb2, tinned
Flammability	UL 94 HB
Temperature range	-30 °C to +80 °C
