    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW3MPB1-W
    Price : $1.40 - $2.60/pieces
    • Product Details
    • Company Profile

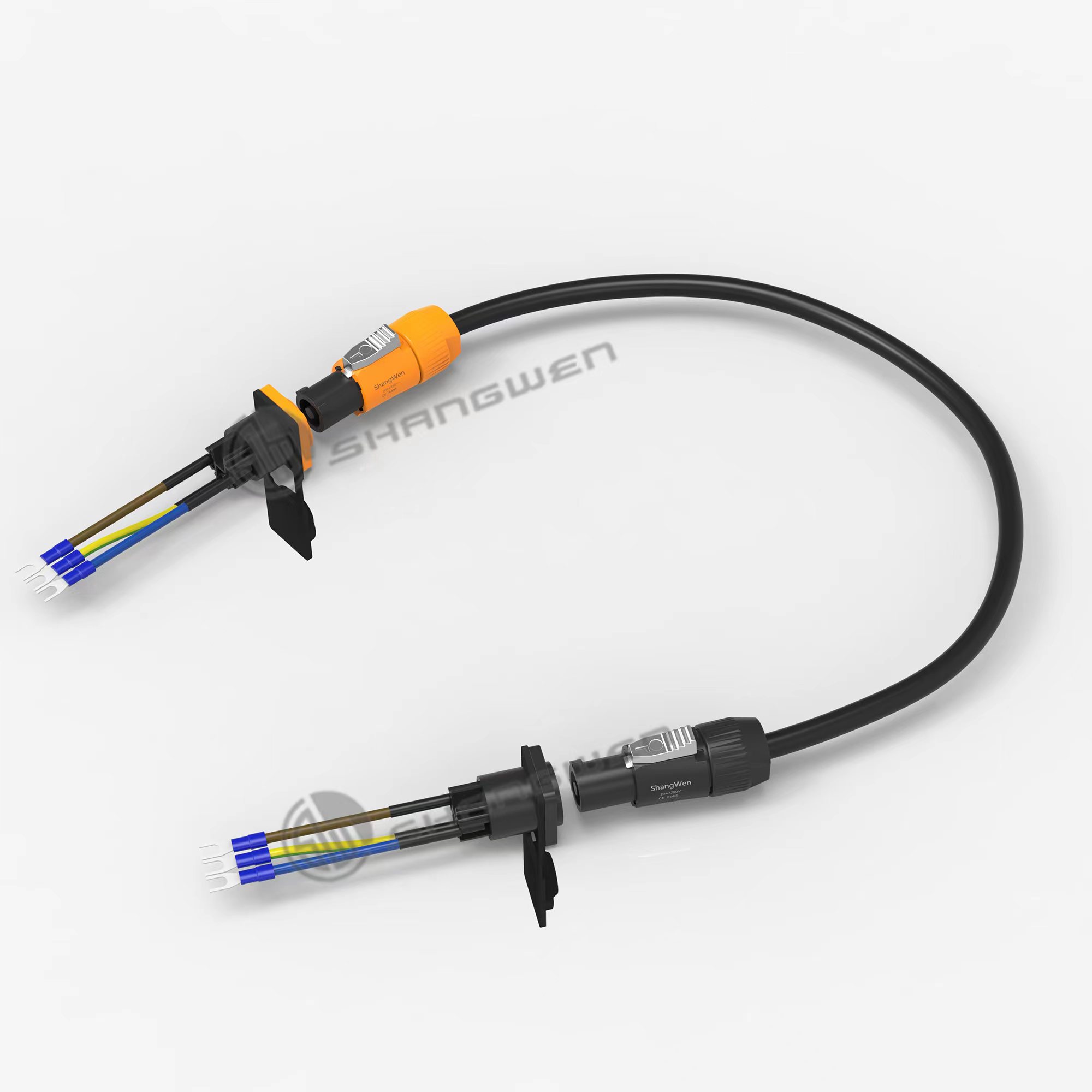

    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon


    Black Output Powercon Connector Outdoor Use 3 Pin Led Ip65 Female Power Connector


    Product Advantage:


    Cable to cable connectors could be a good option for outdoor indoor electrical power extension, well protect your equipments or lights fixtures, widely used for landscape lights, wall washer bar, led display, industrial equipment or machine.


    Products Description

    1. Electrical parameters

    Contacts NO.
    2+PE
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤5mΩ
    Dielectric strength
    4000V DC
    Insulation resistance
    >1000MΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    2.5mm²(8mm - 12mm)
    Wire stripping length
    7-8mm
    Type of teminals
    Screw type clamping units solder termination
    3. Material and environmental parameters
    Shell
    PA
    Contacts
    Cu alloy
    Contact surface
    Ag
    Flame-retardant grade
    UL94-V0
    Protection grade
    IP65
    Temperature range
    -30°C to +80°C

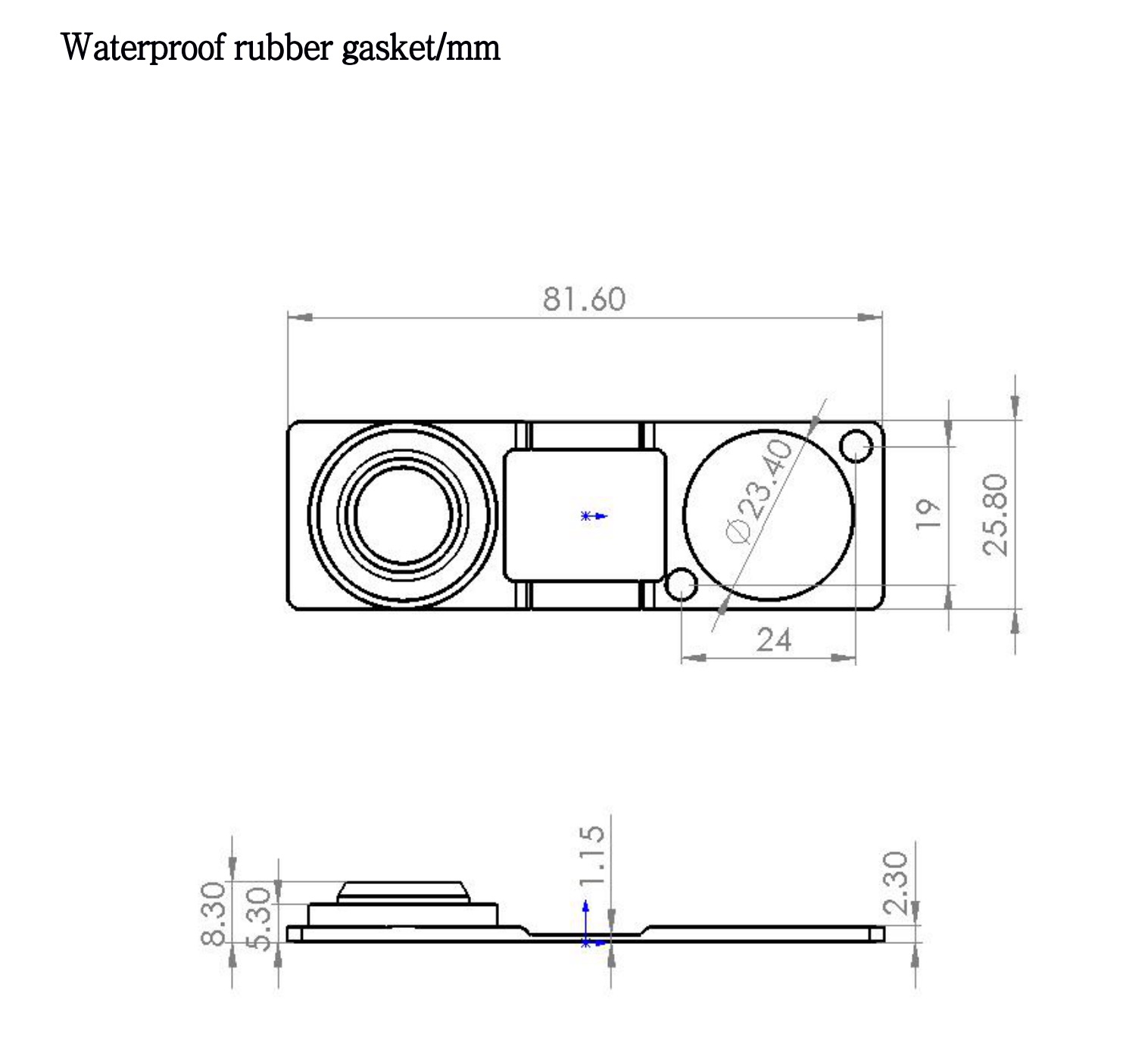

    4. Size reference (unit /mm)
    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
    5. Installation reference drawing
    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
    Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon

    Power connector series-female powercon(output port)

    This series is widely used in outdoor rental LED display power connection.

    The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature

    resistance, explosion resistance and corrosion resistance.

    The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

    Using rotary locking design, easy to operate, stable and reliable !
