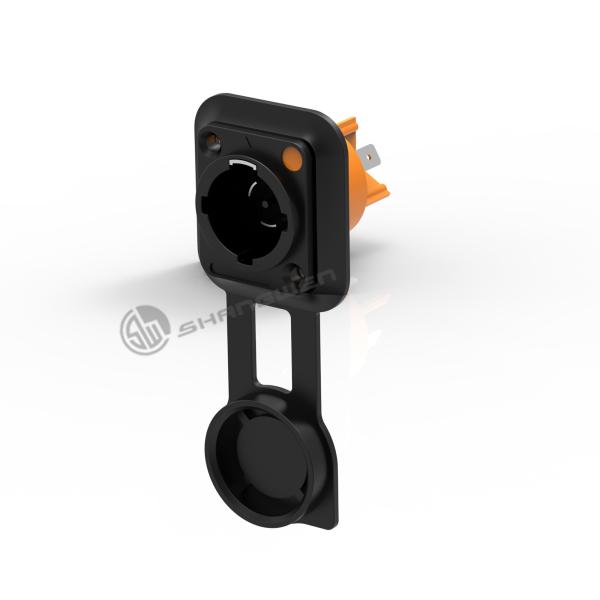

IP65 Waterproof Powercon Male Chassis 3 Conductor 20A 250V Power-In 3/16" Flat Tab Terminals For Led Screen

^{SW3MPX is widely used in outdoor LED display power connection.}

^{With the continuous development of the entertainment industry, the demand for products with connected systems is also increasing.
The sealed connector that can be adapted for outdoor use came into being.
To this end, Shangwen has developed a new series of outdoor connectors, which includes power connectors, signal connectors and audio connectors. These rugged, sealed connectors are IP65 rated for outdoor protection.
The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.}

^{Using rotary locking design, easy to operate, stable and reliable !}

Product features

☑ Connect reliably
☑ Small size of product
☑ Three connect methods:male plug to female plug,male plug to female chassis,female plug to male chassis
☑ High current capacity,rated at 20A/250V AC
☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Waterproof grade IP65
☑ Secure,quick, simple locking system
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground

Technical parameters

- Electrical parameters

- Mechanical parameters

-Material and environmental parameters

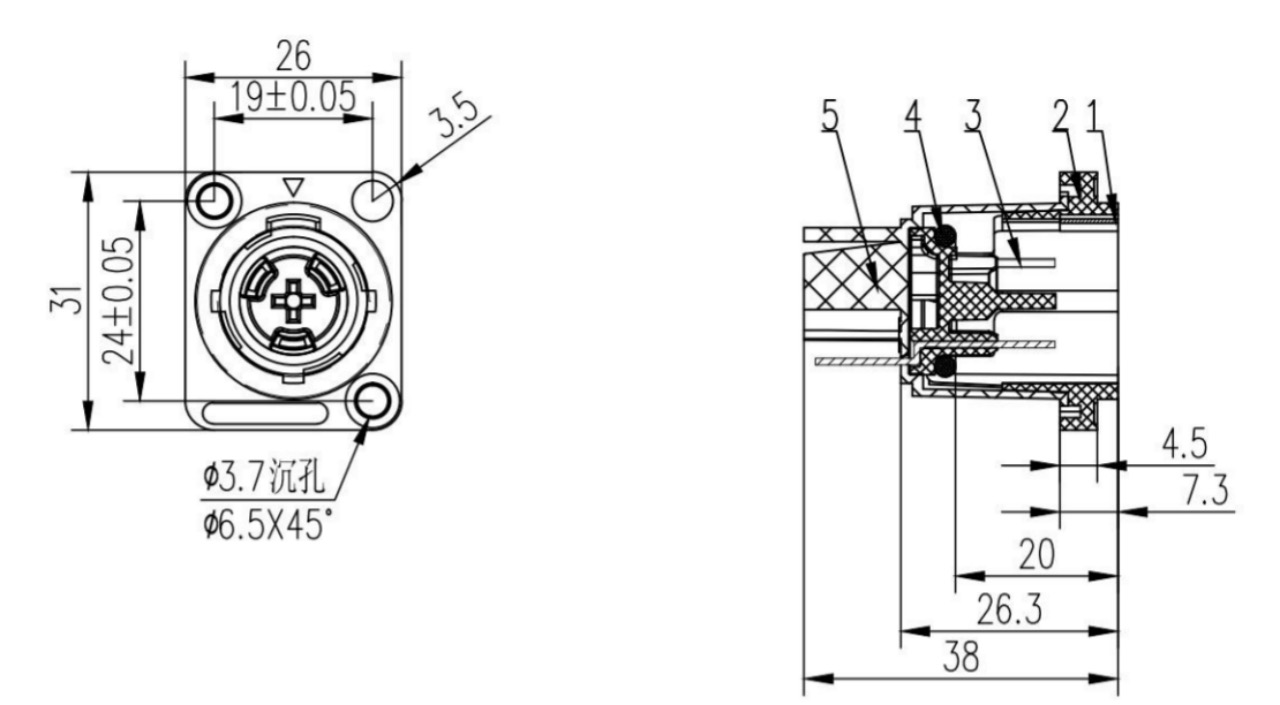

Product Profile

Packing
