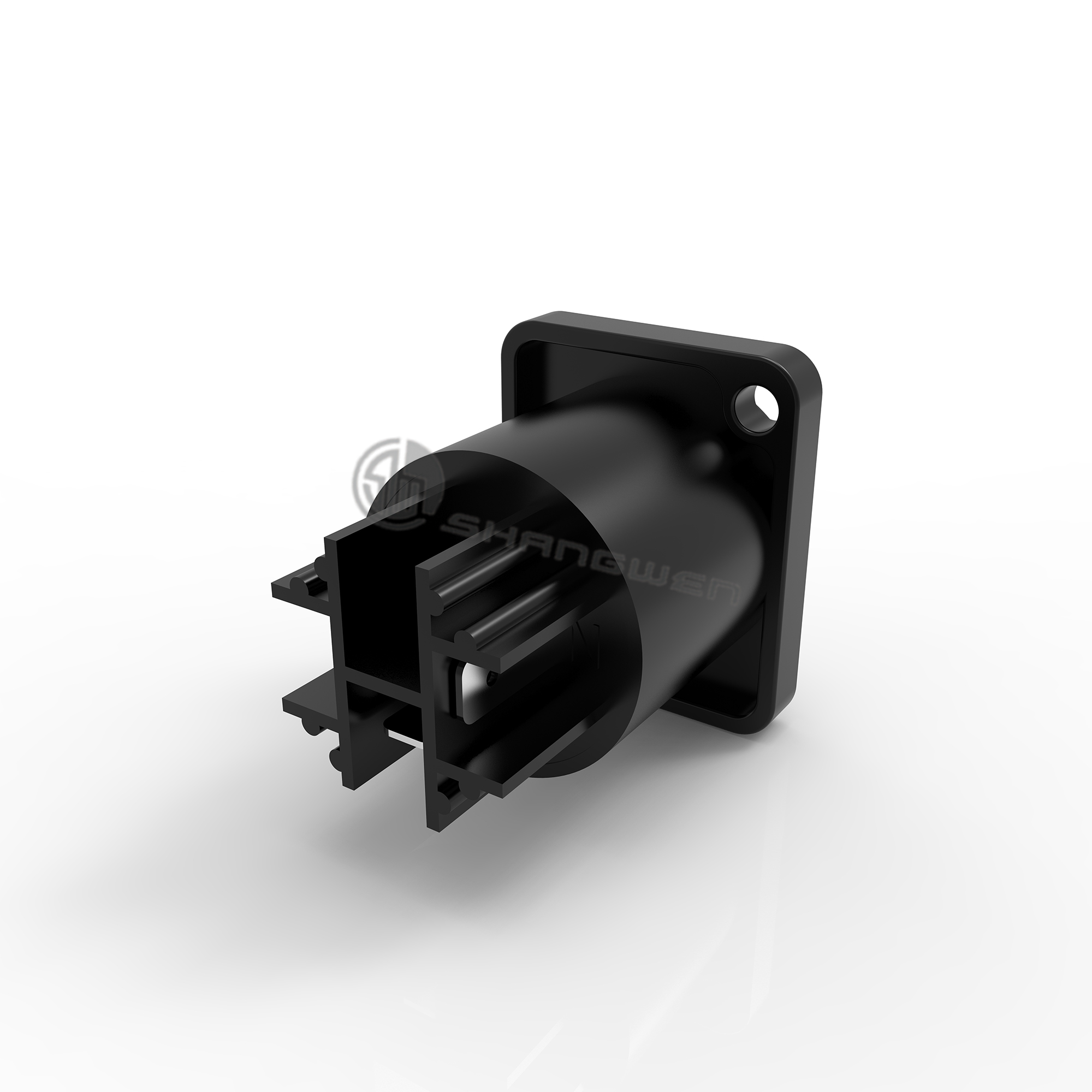

IP65 Waterproof Powercon Chassis 3 Conductor 20A 250V Power-Out 3/16" Flat Tab Terminals Black Color For Led Screen

^{SW3MPB1-W is widely used in outdoor rental LED display power connection.}

^{The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.}

^{The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.}

^{Using rotary locking design, easy to operate, stable and reliable !}

Product features
☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Connect reliably
☑ Small size of product

☑Waterproof grade IP65

☑ Secure,quick, simple locking system
☑ High current capacity,rated at 20A/250V AC
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground

Technical parameters

-Electrical parameters

-Mechanical parameters

Material and environmental parameters
