    Industrial Waterproof Circular Power Connector Electrical Powercon

    Ask Lasest Price
    Brand Name : Shang Wen
    Model Number : SW3MPB
    Certification : CQC Rohs UL CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000+pcs+per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

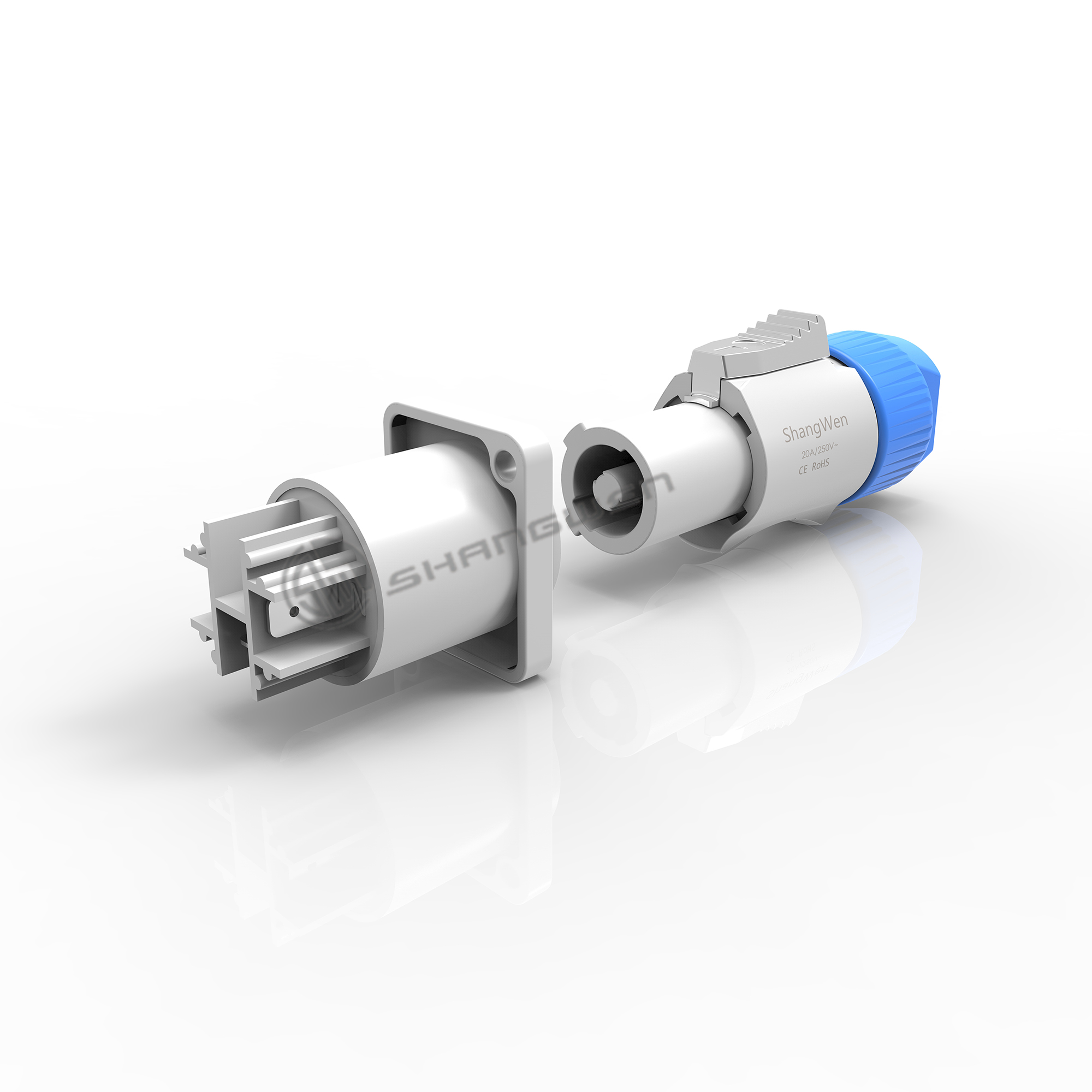

    Industrial Waterproof Circular Power Connector Electrical Powercon

    Indoor Use Powercon Chassis 3 Conductor 20A 250V Power-Out 3/16" Flat Tab Terminals White Color For Led Screen Cabinet


    Product features


    Secure,quick, simple locking system
    Connect reliably
    Small size of product
    Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
    High current capacity,rated at 20A/250V AC
    Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating


    Technical parameters

    Electrical parameters

    Contacts No.3
    Rated current20A
    Rated voltage250V AC
    Contact resistance≤5mΩ
    Dielectric strength

    4000V DC

    Insulation resistance

    >1000MΩ


    Mechanical parameters

    Service life>1000 times
    Power line2.5mm²(8mm-12mm)
    Wire stripping length7-8mm
    Type of terminals3/16'' flat tab/solder termination

    Material and environmental parameters


    ShellPA
    ConductorCu alloy
    Conductor surfaceAg
    Flame-retardant gradeUL94-V0
    Temperature range-30°C~80°C
    IP gradeIP44

    Product Profile







    Packing
