CE ROHS FTP UTP SFTP Cat8 Rj45 Plug Network Lan Cable 1000ft Patch Cord Ethernet Cable

Cat8 SFTP Patch Cord Ethernet Cable

Cable type	Cat8 / SFTP
Length	Standard-1M / other lengths can be customized

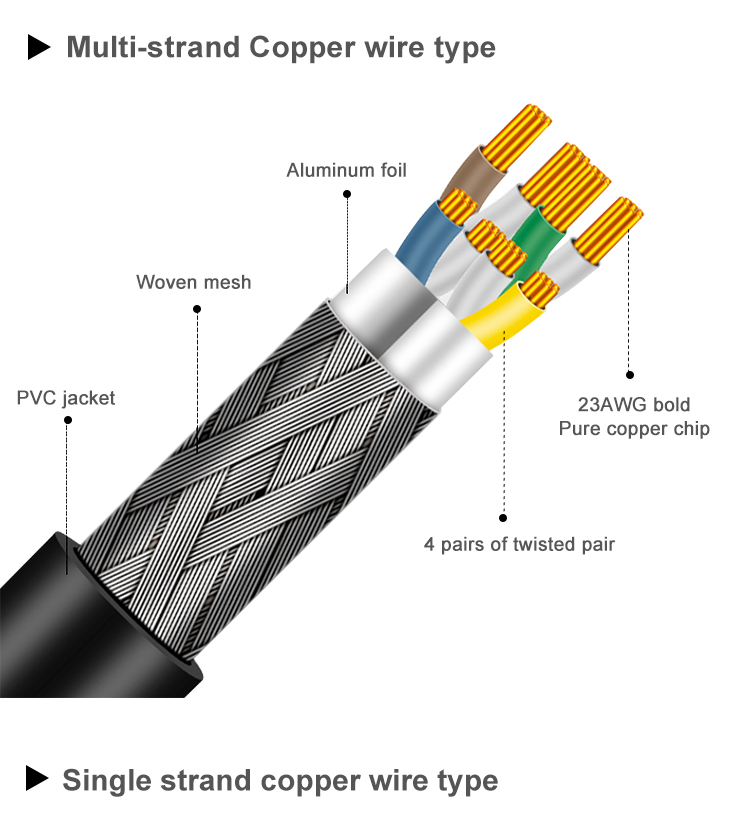

Conductor material	Multiple strands of copper wire 7 * 0.2mm BC pure oxygen-free copper Single strand copper wire 0.5mm BC pure oxygen-free copper * Other size of the copper core can be customized * CCA can be customized
Cable material	HOPE inner + flame retardant PVC outer
AWG	1.Standard-24AWG
	2.23AWG,26AWG,28AWG,30AWG etc size can be customized
Cable weight	31g / pcs (1M-bare wire)
Shielding	Unshielded twisted pair

Connector	50U”8P8C RJ45 Plug
Connector color	Transparent, black/other colors can be customized
Connector Weight	1.6g/pcs

Advantage

1. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening

2.Connector's chip and wire core are precisely riveted, and the transmission is more stable

3. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use

4.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core

5. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use

Characteristics

Insertion force	30N max.
Retention strength	8.3kg between jack and plug
Operating temperature	-20℃ to 80℃
Fluke	100% component test
Certification	CE/UL/FCC/RoHS
Guarantee	3 Years
MOQ	1.Standard configuration MOQ-100pcs
	2. Needed to be customized MOQ-1000pcs
Logo	SHANGWEN or No logo/Other logos can be customized

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging & Shipping

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.

Shangwen founded in 2016, is a enterprise integrating research and development, production and service of all kinds of industrial connectors and finished custom wiring harness products.

Shangwen electronics is an application solution provider for all kinds of connectors and finished wiring harnesses. Our energetic core team is one of our advantages. Excellent R & D strength to provide customers with a variety of private customized services to solve all kinds of technical problems. In the continuous development, the company always pays attention to the latest trends in the industry, delving into cutting-edge technologies in the application field, and constantly developing new products. We must bring more simple, fast and stable connection solutions for customers.

Since its establishment, the company has obtained more than 20 patented technologies, and the main products include: power connector, signal connector, data connector, wire harness connector, all kinds of network cables and finished wire harness, etc. At present, it is widely used in LED display, lighting and sound solutions, security equipment, automation equipment, military, medical, new energy and other fields.

The company has set up a connector factory in Ningbo and a finished wiring harness processing factory in Shenzhen. The monthly capacity of finished wiring harness can reach 500,000 pieces and the monthly capacity of connector can reach 300,000 sets.

Adhering to the business philosophy of "enhancing talents, efficient management, researching technology, professional manufacturing, customer first, and win-win cooperation", we will become the preferred partner of global customers with excellent quality and service.
