24AWG 4 Pair Black/Gary PVC 4P CAT6A Round Patch Cord Cable UTP

Products Description

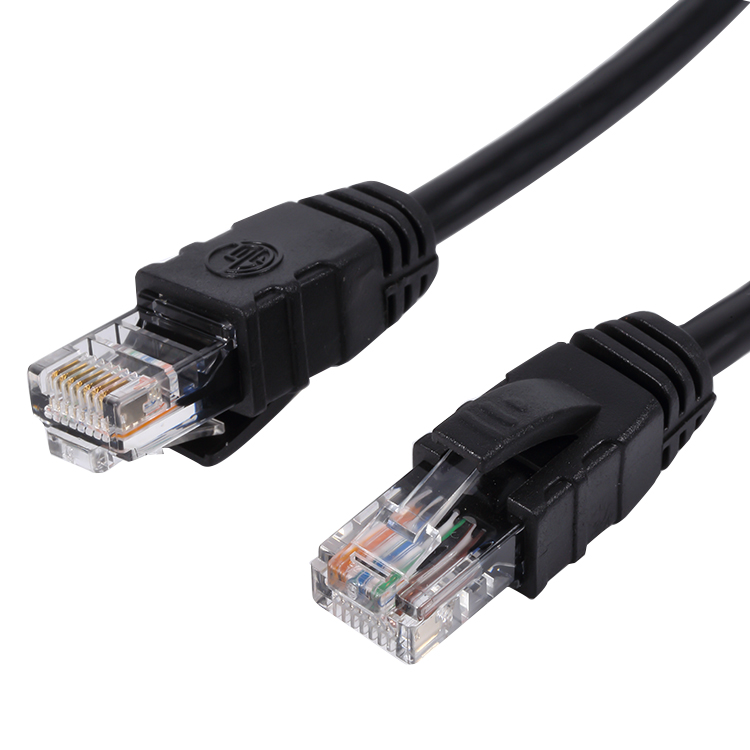

Cat6A UTP Patch Cord Ethernet Cable

SHANGWEN's network cable is crafted with premium-grade, oxygen-free copper, ensuring exceptional quality and transparency for easy inspection. Through relentless research and development by our technical team, we have successfully addressed the issue of a 40% return loss in the current system. This improvement effectively eliminates signal interruptions during network cable usage. Our cables now offer enhanced transmission efficiency, eliminating any delays in picture transmission and ensuring seamless gaming and work experiences. Additionally, we employ high-end precision instruments for conducting tests, ensuring that the cable's impedance remains within the standard range, guaranteeing optimal performance.

Advantage

a. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use

b.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core

c. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening

d. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use

e.Connector's chip and wire core are precisely riveted, and the transmission is more stable

Cable type	Cat6A/ UTP
Length	Standard-1M / other lengths can be customized

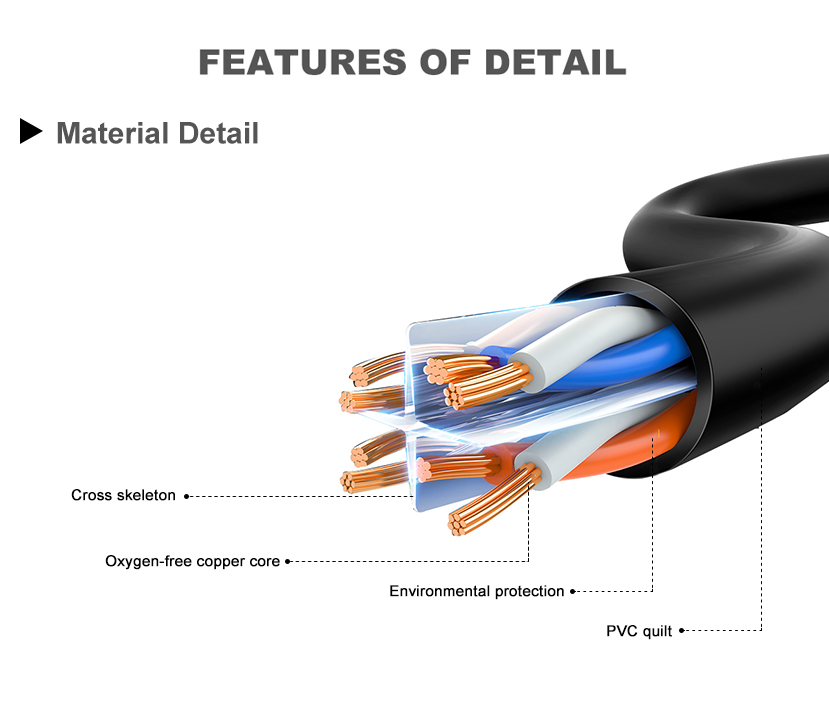

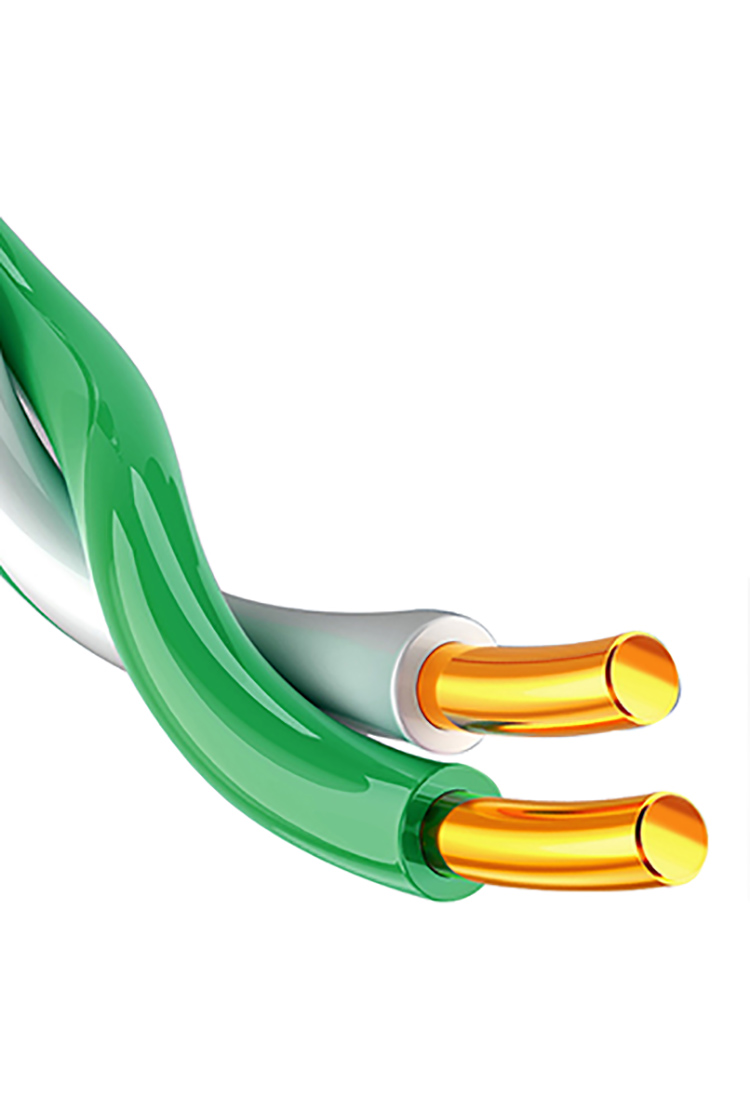

Conductor material	Multiple strands of copper wire 7 * 0.2mm BC pure oxygen-free copper Single strand copper wire 0.5mm BC pure oxygen-free copper *Other size of the copper core can be customized *CCA can be customized
Cable material	HOPE inner + flame retardant PVC outer
AWG	1.Standard-24AWG 2.23AWG,26AWG,28AWG,30AWG etc size can be customized
Cable weight	31g / pcs (1M-bare wire)
Shielding	Unshielded twisted pair

Connector	50U”8P8C RJ45 Plug
Connector color	Transparent, black/other colors can be customized
Connector Weight	1.6g/pcs

Characteristics

Insertion force	30N max.
Retention strength	8.3kg between jack and plug
Operating temperature	-20℃ to 80℃

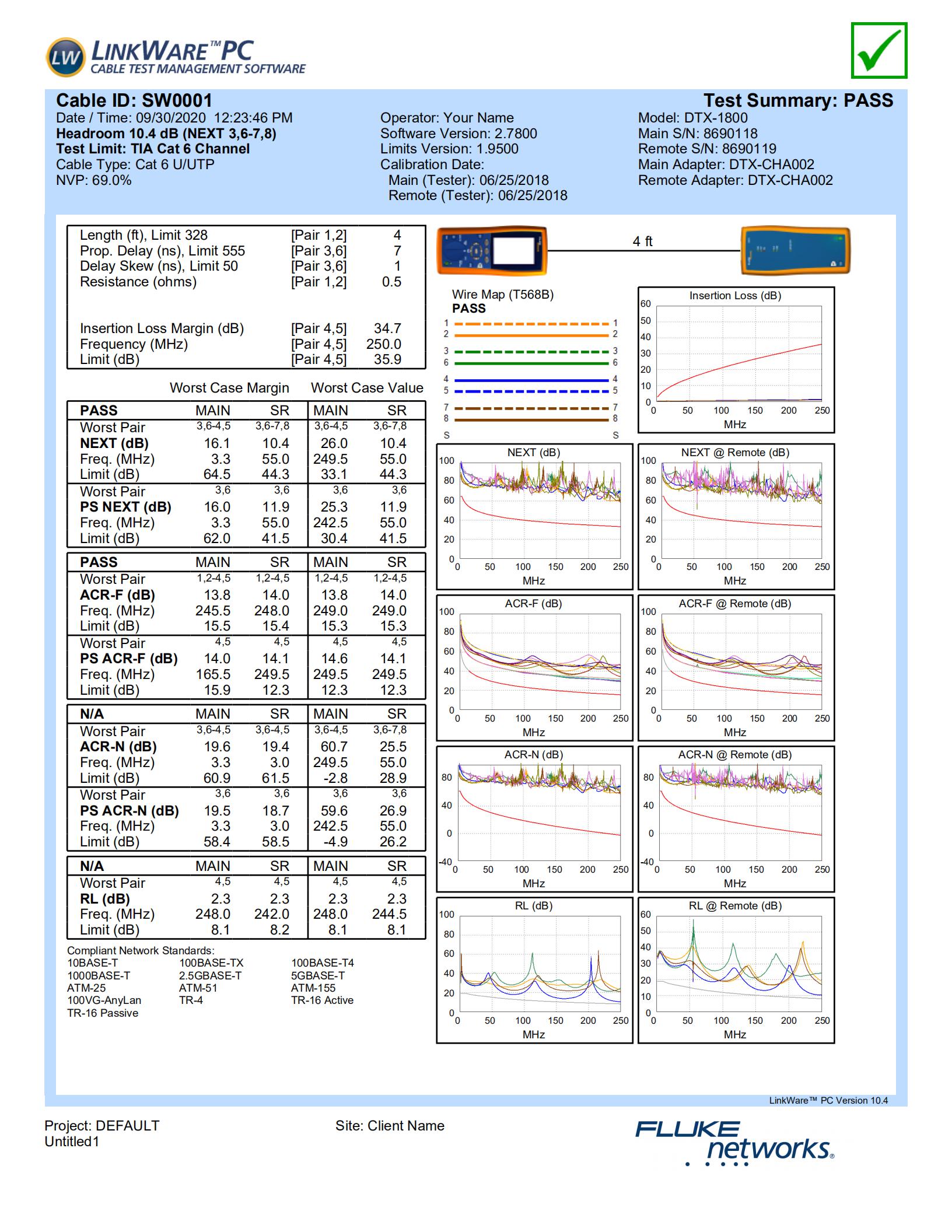

Fluke	100% component test
Certification	CE/UL/FCC/RoHS
Guarantee	3 Years
MOQ	1.Standard configuration MOQ-100pcs 2. Needed to be customized MOQ-1000pcs
Logo	SHANGWEN or No logo/Other logos can be customized

Shangwen founded in 2016, is a enterprise integrating research and development, production and service of all kinds of industrial connectors and finished custom wiring harness products.

Shangwen electronics is an application solution provider for all kinds of connectors and finished wiring harnesses. Our energetic core team is one of our advantages. Excellent R & D strength to provide customers with a variety of private customized services to solve all kinds of technical problems. In the continuous development, the company always pays attention to the latest trends in the industry, delving into cutting-edge technologies in the application field, and constantly developing new products. We must bring more simple, fast and stable connection solutions for customers.

Since its establishment, the company has obtained more than 20 patented technologies, and the main products include: power connector, signal connector, data connector, wire harness connector, all kinds of network cables and finished wire harness, etc. At present, it is widely used in LED display, lighting and sound solutions, security equipment, automation equipment, military, medical, new energy and other fields.

The company has set up a connector factory in Ningbo and a finished wiring harness processing factory in Shenzhen. The monthly capacity of finished wiring harness can reach 500,000 pieces and the monthly capacity of connector can reach 300,000 sets.

Adhering to the business philosophy of "enhancing talents, efficient management, researching technology, professional manufacturing, customer first, and win-win cooperation", we will become the preferred partner of global customers with excellent quality and service.
